SKU: 93368423

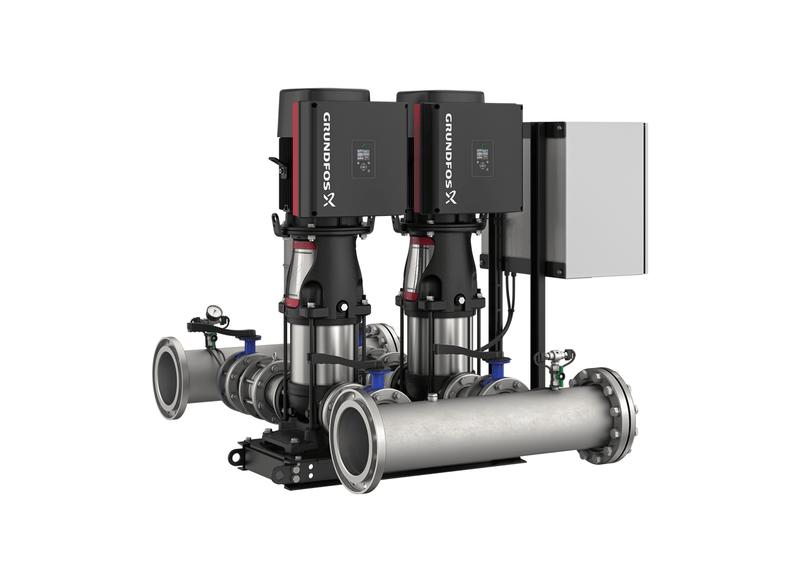

Grundfos Hydro Multi-E 2 x CRNE 45-2 Three Phase 2 x 15kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Luxury coastal resorts managing extensive guest villa water networks depend on the Hydro Multi-E 2 CRNE 45-2. The package operates two Grundfos CRNE 45-2 vertical multistage pumps in parallel, automatically staging each unit as flow demand increases. Part number 93368423 provides the complete tested package in a single order line.
Delivering volumetric throughput up to 2333 L/min across busy plant lines, Multistage vertical hydraulics produce up to 75 metres of maximum head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Mounted on an engineered plant room skid, the booster incorporates stainless steel manifolds, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 39.2 A (2 x 19.6 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Commercial specifications frequently call for the set across high-rise apartments, hotel plant rooms and schools and universities to satisfy peak demand. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Rated 15 kW (P2) on every main pump in the frame.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The system protects its pumps against dry running if the incoming supply is lost.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Two Grundfos CRNE 45-2 pumps share the boosting work in parallel.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
What's Included
- 2 x Grundfos CRNE 45-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 2333 L/Min |
| Max Head | 75 m |
| Power | 2 x 15 kW / 415v |
| Rated Current | 2 x 19.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under what manufacturer warranty terms is this complete booster assembly supplied?
Investment protection for the Grundfos Hydro Multi-E 2 CRNE45-2 U2 A-A-I-I-D (part number 93368423) features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
What maximum delivery flow does this multi-pump system provide to maintain header line pressure?
During peak facility consumption cycles, the Hydro Multi-E 2 CRNE45-2 delivers up to 2333 L/min across its parallel wet ends.
Which variable frequency electric motors provide mechanical power to this booster assembly?
Drive hardware for the Hydro-Multi-E-2-CRNE45-2 consists of two IE5 permanent-magnet MGE electric motors rated at 15 kW each on a 3 x 380-415 V power supply.
What maximum head pressure does this variable speed booster system produce across the pipework?
Pumping across elevated risers, the Hydro Multi E 2 CRNE45 2 maintains up to 75 m total dynamic head while supporting 10 bar maximum pressure.
What plumbing manifold connections and valve equipment are factory mounted on this assembly?
Interconnecting pipework on the 2 CRNE45-2 (Hydro Multi-E) features factory-fitted DN 150 stainless steel suction and discharge manifolds with non-return check valves and isolation valves.
