SKU: 99752249

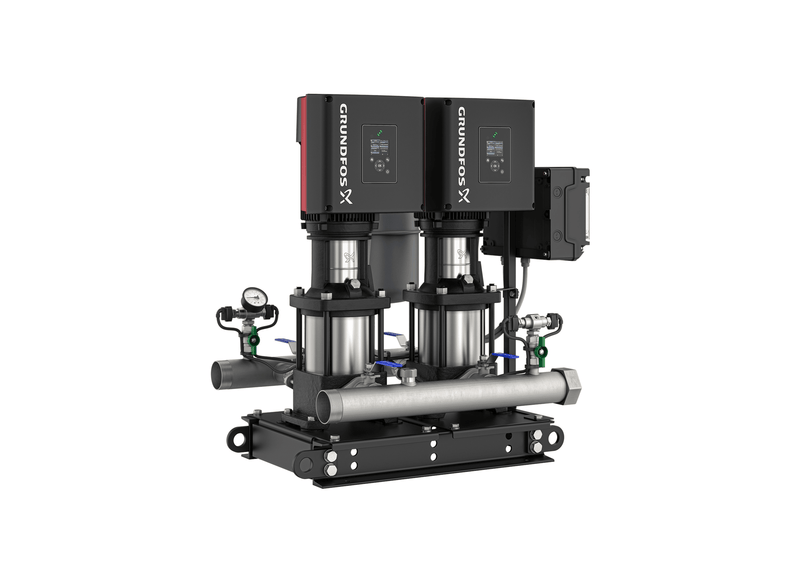

Grundfos Hydro Multi-E 2 x CRNE 5-16 Three Phase 2 x 3kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suburban shopping plazas with high restaurant and cafe density depend on the Hydro Multi-E 2 CRNE 5-16. Configured with two CRNE 5-16 vertical pumps in parallel, the booster dynamically matches motor speed to immediate water requirements. Everything is ordered under the single manufacturer part number 99752249.
The variable-speed system supplies up to 340 L/min of peak volumetric flow. The vertical stage assembly can build up to 158 metres of head for steep elevations. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Mounted on a common fabricated skid, the booster package combines stainless steel manifolds, two Rp 2 inch threaded manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 Hz with combined rated current of 12.4 A (2 x 6.2 A per pump). Motors carry IP55 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Typical commercial plant installations cover mixed-use commercial buildings, corporate office towers and shopping centres, handling changing draw-off patterns. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Maximum operating pressure of 16 bar with motors sealed to IP55.
- Rated 3 kW (P2) on every main pump in the frame.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Two Grundfos CRNE 5-16 vertical multistage pumps run in parallel on one common base frame.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Stainless steel manifolds provide two Rp 2 inch threaded manifold connections ready for plant pipework.
- The system protects its pumps against dry running if the incoming supply is lost.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
What's Included
- 2 x Grundfos CRNE 5-16 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 340 L/Min |
| Max Head | 158 m |
| Power | 2 x 3 kW / 415v |
| Rated Current | 2 x 6.2 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which factory warranty coverage protects the complete multi-pump booster skid?
Warranty support for the Grundfos Hydro Multi-E 2 CRNE 5-16 U2 A-A-I-I-DU (part number 99752249) is delivered through an authentic Grundfos two-year manufacturer warranty covering the complete factory-assembled booster skid.
How much water flow can this multistage pump package discharge when all pumps are operational?
Peak water displacement for the Hydro Multi-E 2 CRNE 5-16 reaches up to 340 L/min to satisfy elevated site requirements.
How is motor power and variable frequency regulation configured across this booster assembly?
Speed-controlled electric drive on the Hydro-Multi-E-2-CRNE-5-16 delivers power through two IE5 permanent-magnet MGE electric motors rated at 3 kW each on 3 x 380-415 V mains.
Which vertical elevation head does this parallel multistage pump package achieve under full duty?
Pressure boosting performance allows the Hydro Multi E 2 CRNE 5 16 to achieve up to 158 m dynamic elevation head and an 16 bar working envelope.
Which inlet and outlet connection dimensions are provided on the stainless steel manifolds?
Common manifolding across the 2 CRNE 5-16 (Hydro Multi-E) utilizes R 2 stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
