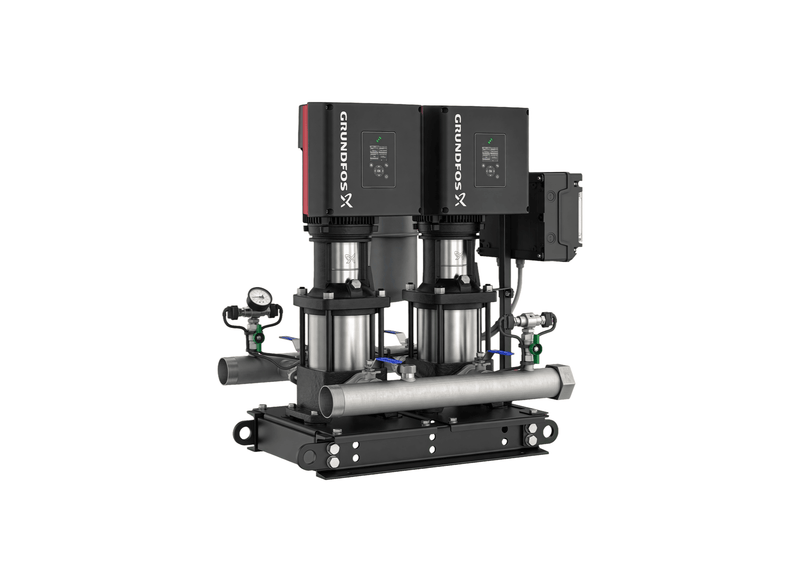

Grundfos Hydro Multi-E 2 x CRNE 5-2 Single Phase 2 x 0.37kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Where day spas and compact medical centres running half a dozen outlets at once are served from a single booster, the Hydro Multi-E 2 CRNE 5-2 holds pressure steady as two CRNE 5-2 pumps respond to changing flow. The complete system ships factory assembled and tested under part number 99752182.
Flow capacity reaches 298 L/min. Up to 19 metres of head is available to maintain pressure as demand changes. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 50 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 1 x 200-240 V at 50 / 60 Hz with a rated current of 4.78 A. The motors have IP55 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Expect it on industrial process supply and hospitals sites, plus high-rise apartments duties. It provides clean-water pressure boosting for both new plant rooms and refits.
Features
- Two Grundfos CRNE 5-2 pumps share the boosting work in parallel.
- Rated for 10 bar system pressure; motors carry IP55 protection.
- Stainless steel manifolds provide two 50 mm manifold connections ready for pipework.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- At P2 each main pump is 0.37 kW, covering the duty without oversizing the frame.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
What's Included
- 2 x Grundfos CRNE 5-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 298 L/Min |
| Max Head | 19 m |
| Power | 2 x 0.37 kW / 240v |
| Rated Current | 2 x 4.78 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much total elevation head can this variable speed multi pump package generate?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRNE 5-2 U8 A-A-I-I-DU delivers a maximum vertical head of 19 m and accommodates working system pressures up to 10 bar.
How are the suction and discharge manifolds plumbed to provide individual pump isolation?
Factory pipework configuration on the Hydro Multi-E 2 CRNE 5-2 incorporates R 2 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
What manufacturer warranty duration covers this variable speed booster assembly?
Factory backing for the Hydro-Multi-E-2-CRNE-5-2 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
Under high volumetric demand, what water delivery capacity can this packaged booster unit maintain?
At full operational capacity, the Hydro Multi E 2 CRNE 5 2 provides up to 298 L/min total water throughput to satisfy heavy facility consumption requirements.
Which electric motors and integrated frequency converters power this multi pump booster skid?
Power for the 2 CRNE 5-2 (Hydro Multi-E) is delivered via two high-efficiency IE5 permanent-magnet MGE electric motors of 0.37 kW each, wired for a 1 x 200-240 V electrical supply with built-in speed regulation.
