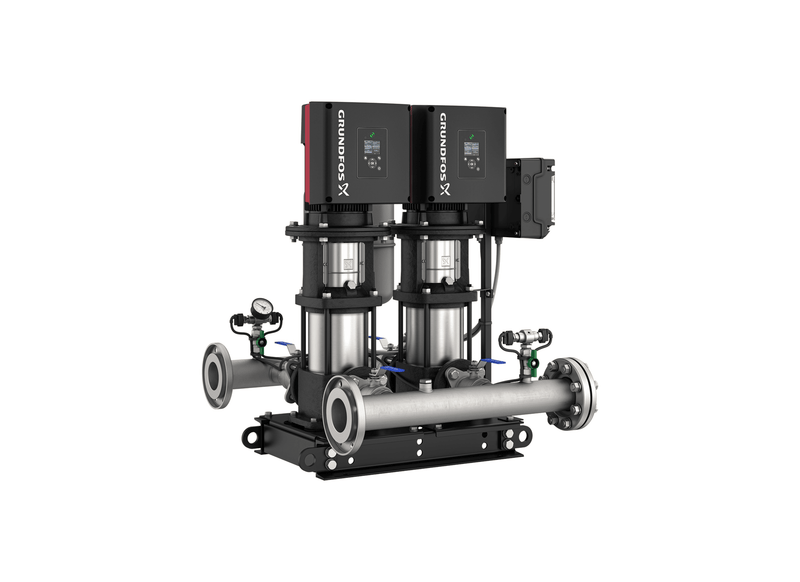

Grundfos Hydro Multi-E 2 x CRNE 64-1 Three Phase 2 x 7.5kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Multi-tenanted business parks experiencing expanding tenancy loads solve fluctuating pressure with the Hydro Multi-E 2 CRNE 64-1. Operating two CRNE 64-1 pumps in parallel duty, the booster automatically cuts pumps in and out to track line velocity. Quote part number 93368435 to have the entire pre-commissioned assembly delivered to site.
Flow delivery achieves up to 3400 L/min across connected building pipework. Up to 46.9 metres of shut-off head is generated to overcome vertical riser friction. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Pre-fabricated on a shared mounting frame, the booster incorporates stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 27.2 A (2 x 13.6 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Well-matched to demanding institutional facilities like food production facilities, logistics distribution hubs and aquatic sports centres, the set ensures reliable boosting. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Each main pump is rated 7.5 kW (P2), so per-pump draw scales down as speed follows demand.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- The system pairs two CRNE 64-1 pumps in parallel duty, controlled as a single coordinated system.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
What's Included
- 2 x Grundfos CRNE 64-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3400 L/Min |
| Max Head | 46 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 13.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under peak pressure requirements, what total dynamic head does this multistage assembly generate?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRNE64-1 U2 A-A-I-I-DU (part number 93368435) delivers a maximum vertical head of 46.9 m and accommodates system pressures up to 10 bar.
What plumbing manifold connections and non-return check valves are installed on this booster skid?
Pre-assembled manifold pipework on the Hydro Multi-E 2 CRNE64-1 includes DN 150 stainless steel suction and discharge headers with isolating valves and non-return valves.
What manufacturer warranty period covers the pumps and electronic drive package?
Complete skid backing for the Hydro-Multi-E-2-CRNE64-1 includes an authentic Grundfos two-year manufacturer warranty covering the motors, wet ends, and integrated controls.
Which maximum volumetric delivery does this packaged booster system provide for distribution headers?
Under maximum plant draw, the Hydro Multi E 2 CRNE64 1 supplies up to 3400 L/min of clean water through parallel multistage stages.
How are the centrifugal pumps driven and inverter regulated across variable network demands?
Electrical propulsion across the 2 CRNE64-1 (Hydro Multi-E) utilizes two 7.5 kW IE5 permanent-magnet MGE electric motors wired for 3 x 380-415 V supply.
