SKU: 93368439

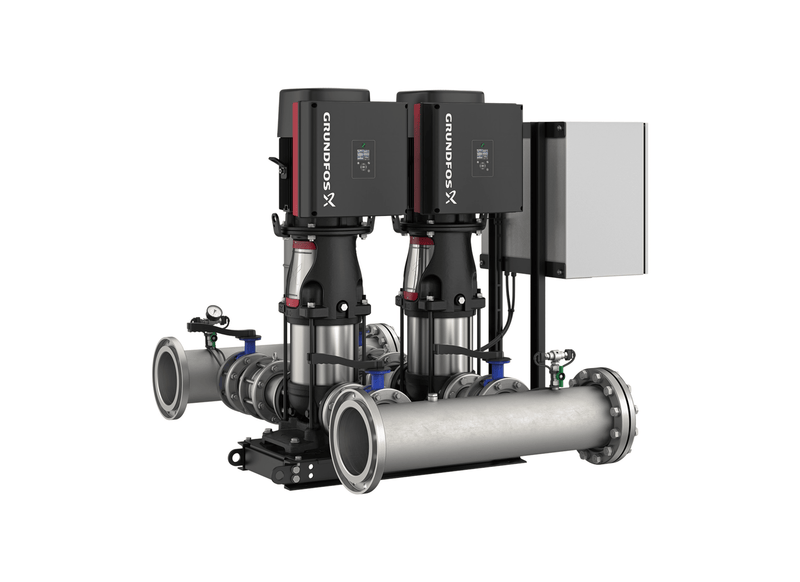

Grundfos Hydro Multi-E 2 x CRNE 64-2-1 Three Phase 2 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Shopping centre amenities and food court ring mains maintain balanced pressure using the Hydro Multi-E 2 CRNE 64-2-1. Configured with two CRNE 64-2-1 vertical pumps in parallel, the booster dynamically matches motor speed to immediate water requirements. Everything is ordered under the single manufacturer part number 93368439.
At maximum operating frequency, the package yields up to 3400 L/min. The vertical stage assembly can build up to 74 metres of head for steep elevations. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Mounted on a vibration-dampened base skid, the booster incorporates stainless steel manifolds, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 39.2 A (2 x 19.6 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Routine plant room duty sits with mixed-use commercial buildings, corporate office towers and shopping centres, delivering seamless pressure regulation across shifts. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Two Grundfos CRNE 64-2-1 vertical multistage pumps run in parallel on one common base frame.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- The system protects its pumps against dry running if the incoming supply is lost.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- At P2 each main pump is 18.5 kW, covering the duty without oversizing the frame.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
What's Included
- 2 x Grundfos CRNE 64-2-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3400 L/Min |
| Max Head | 74 m |
| Power | 2 x 18.5 kW / 415v |
| Rated Current | 2 x 19.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which total water transfer rate does this variable speed booster system displace under full duty?
At full operational capacity, the Grundfos Hydro Multi-E 2 CRNE64-2-1 U2 A-A-I-I-D (part number 93368439) supplies up to 3400 L/min total liquid throughput into pressurised pipework.
Which variable speed motor technology provides mechanical power to the pumps on this skid?
Integrated frequency converters on the Hydro Multi-E 2 CRNE64-2-1 modulate two IE5 permanent-magnet MGE electric motors rated at 18.5 kW each from a 3 x 380-415 V power supply.
Under peak elevation requirements, what total dynamic head does this booster set achieve?
Peak vertical head generated by the Hydro-Multi-E-2-CRNE64-2-1 reaches up to 74 m across distribution pipework under an 10 bar pressure envelope.
What manifold port diameters and check valve fittings connect the pumps on this booster assembly?
Parallel skid pipework on the Hydro Multi E 2 CRNE64 2 1 features DN 150 stainless steel suction and discharge headers fitted with isolating valves and discharge non-return valves.
What manufacturer warranty backing supports this packaged variable speed pump set?
Factory warranty backing on the 2 CRNE64-2-1 (Hydro Multi-E) provides an authentic Grundfos two-year manufacturer warranty protecting the complete parallel booster skid assembly.
