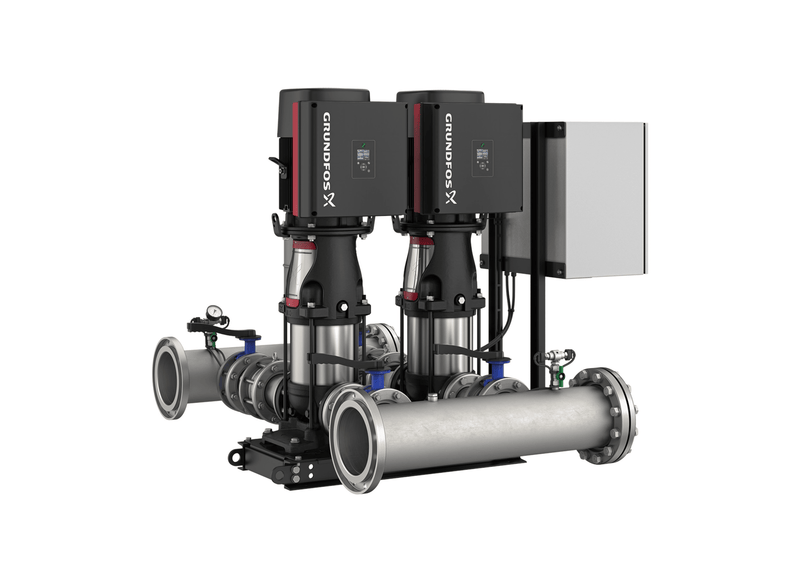

Grundfos Hydro Multi-E 2 x CRNE 64-3-2 Three Phase 2 x 22kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Large-scale distribution centres and logistics hubs running wash pads count on the robust Hydro Multi-E 2 CRNE 64-3-2. Staged parallel operation between two CRNE 64-3-2 pumps maintains consistent line pressure without erratic cycling. Ordering part number 93368447 puts the fully tested booster skid directly onto the plant room floor.
Providing up to 3400 L/min of clean-water volumetric flow, Up to 101.1 metres of delivery head is available to keep upper-floor fixtures pressurised. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Constructed as a turnkey plant room unit, the assembly combines stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 87.6 A (2 x 43.8 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
The booster provides dedicated clean-water service for food production facilities, logistics distribution hubs and aquatic sports centres, keeping line velocity steady. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Rated 22 kW (P2) on every main pump in the frame.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The system protects its pumps against dry running if the incoming supply is lost.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- The system pairs two CRNE 64-3-2 pumps in parallel duty, controlled as a single coordinated system.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
What's Included
- 2 x Grundfos CRNE 64-3-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3400 L/Min |
| Max Head | 101 m |
| Power | 2 x 22 kW / 415v |
| Rated Current | 2 x 43.8 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the pump wet ends powered and speed controlled during variable demand cycles?
Each centrifugal pump of the Grundfos Hydro Multi-E 2 CRNE64-3-2 U2 A-A-I-I-D (part number 93368447) is driven by a 22 kW IE5 permanent-magnet MGE electric motor running on a 3 x 380-415 V power supply with integrated speed regulation.
How much elevation lift and maximum discharge pressure can this multistage booster unit maintain?
Vertical elevation performance allows the Hydro Multi-E 2 CRNE64-3-2 to develop up to 101.1 m total dynamic head within an 16 bar system rating.
Which suction and discharge pipe connections and isolating valves are fitted to this package?
Mechanical manifold assembly on the Hydro-Multi-E-2-CRNE64-3-2 supplies DN 150 stainless steel suction and discharge pipework fitted with isolating valves and discharge check valves.
What factory warranty protection is provided for this multi-pump booster package?
Official manufacturer backing on the Hydro Multi E 2 CRNE64 3 2 provides a Grundfos two-year warranty with authorized Australian technical assistance and spare parts availability.
Under peak operational conditions, what fluid volume does this variable speed booster package provide?
During periods of high consumption, the 2 CRNE64-3-2 (Hydro Multi-E) provides a maximum water flow rate of 3400 L/min.
