SKU: 93368445

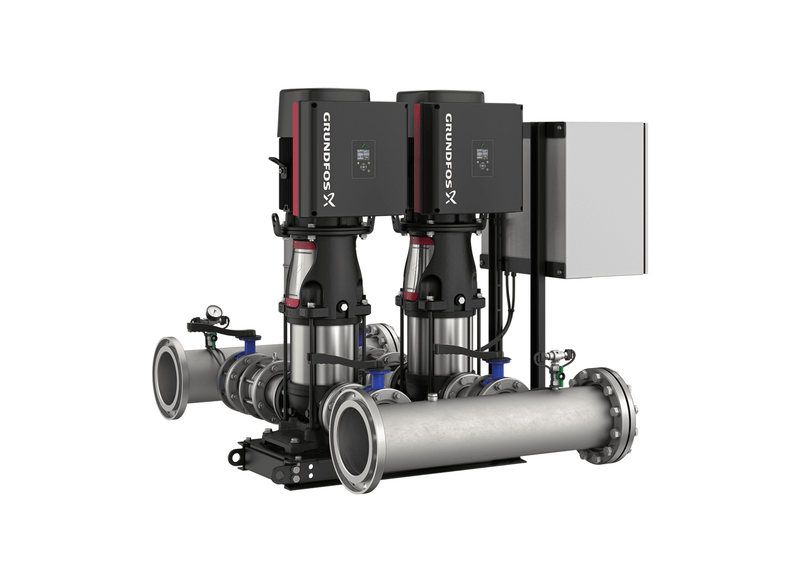

Grundfos Hydro Multi-E 2 x CRNE 64-3 Three Phase 2 x 26kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Corporate office high-rises with multi-tier plumbing risers eliminate upper-floor pressure loss using the Hydro Multi-E 2 CRNE 64-3. Integrated variable-speed drives coordinate the two CRNE 64-3 pumps in parallel, seamlessly ramping output as fixtures open. Part number 93368445 provides the complete tested package in a single order line.
Engineered for high demand, the system supplies up to 3400 L/min at the header. Multistage vertical hydraulics produce up to 131.6 metres of maximum head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Arriving fully wet-tested from the factory, the system integrates stainless steel manifolds, two 150 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 75.4 A (2 x 37.7 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Facilities such as high-rise apartments, hotel plant rooms and schools and universities rely on the system for smooth, inverter-driven pressure boosting. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Stainless steel manifolds provide two 150 mm manifold connections ready for plant pipework.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Two Grundfos CRNE 64-3 vertical multistage pumps run in parallel on one common base frame.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Each main pump is rated 26 kW (P2), so per-pump draw scales down as speed follows demand.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
What's Included
- 2 x Grundfos CRNE 64-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3400 L/Min |
| Max Head | 131 m |
| Power | 2 x 26 kW / 415v |
| Rated Current | 2 x 37.7 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum system pressure and elevation lift capability can this booster skid achieve?
For vertical pressure boosting, the Grundfos Hydro Multi-E 2 CRNE64-3 U2 A-A-I-I-D (part number 93368445) produces up to 131.6 m total elevation head with an 16 bar maximum working pressure envelope.
How are the suction and discharge lines plumbed and valved across this packaged booster assembly?
Suction and discharge manifolding on the Hydro Multi-E 2 CRNE64-3 features DN 150 stainless steel headers with individual pump isolating valves and discharge non-return check valves.
Which factory warranty provisions protect this packaged variable speed booster unit?
Purchasing protection on the Hydro-Multi-E-2-CRNE64-3 incorporates a genuine Grundfos two-year manufacturer warranty covering mechanical components, pipework, and drive units.
How much water flow rate can this multi-pump package displace when operating at full capacity?
Maximum water throughput on the Hydro Multi E 2 CRNE64 3 reaches up to 3400 L/min under full variable speed operation.
Which electric motor drives and frequency converters provide propulsion on this booster skid?
Precision motor modulation on the 2 CRNE64-3 (Hydro Multi-E) is delivered by two IE5 permanent-magnet MGE electric motors producing 26 kW per pump from a 3 x 380-415 V electrical supply.
