SKU: 93368455

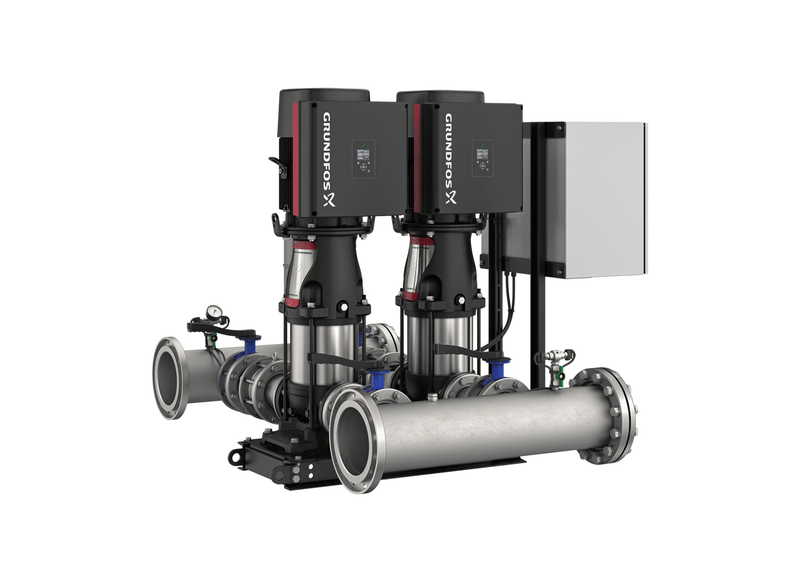

Grundfos Hydro Multi-E 2 x CRNE 95-2 Three Phase 2 x 26kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Major hotel developments seeking seamless guest bathroom pressure across peak check-in hours select the Hydro Multi-E 2 CRNE 95-2. The two-pump parallel layout shares duty evenly across the CRNE 95-2 wet ends, preserving steady pressure during morning spikes. Ordering part number 93368455 puts the fully tested booster skid directly onto the plant room floor.
Hydraulic flow capacity reaches up to 5000 L/min to handle surge draw-offs. Up to 90.6 metres of delivery head is available to keep upper-floor fixtures pressurised. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Delivered as a complete skid-mounted booster, the set brings together stainless steel pipework, two 200 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 87.6 A (2 x 43.8 A per pump). Motors carry IP54 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Plant room applications routinely include hospital surgical wings, aged-care complexes and industrial process supply, maintaining constant delivered pressure. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Two Grundfos CRNE 95-2 vertical multistage pumps run in parallel on one common base frame.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Rated 26 kW (P2) on every main pump in the frame.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Stainless steel manifolds provide two 200 mm manifold connections ready for plant pipework.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
What's Included
- 2 x Grundfos CRNE 95-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 5000 L/Min |
| Max Head | 90 m |
| Power | 2 x 26 kW / 415v |
| Rated Current | 2 x 43.8 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much discharge water volume can this parallel booster assembly supply during peak periods?
Under maximum water demand, the Grundfos Hydro Multi-E 2 CRNE95-2 U2 A-A-I-I-D (part number 93368455) delivers a peak displacement rate of 5000 L/min across parallel centrifugal stages.
How are the multistage pumps driven and electronically regulated across fluctuating demand?
Variable speed propulsion on the Hydro Multi-E 2 CRNE95-2 utilizes two 26 kW IE5 permanent-magnet MGE electric motors connected to a 3 x 380-415 V power line.
What maximum discharge head and system pressure does this parallel centrifugal skid maintain?
Delivering high-elevation lift, the Hydro-Multi-E-2-CRNE95-2 maintains up to 90.6 m dynamic head with an allowable working pressure of 10 bar.
Which inlet and outlet pipe connection fittings are factory supplied on this booster package?
Factory manifold integration on the Hydro Multi E 2 CRNE95 2 incorporates DN 200 stainless steel suction and discharge pipework with individual check valves and isolating valves.
Which factory warranty terms protect this complete multi-pump booster package?
Australian technical protection for the 2 CRNE95-2 (Hydro Multi-E) includes a genuine Grundfos two-year manufacturer warranty supported by factory-trained technicians and spare components.
