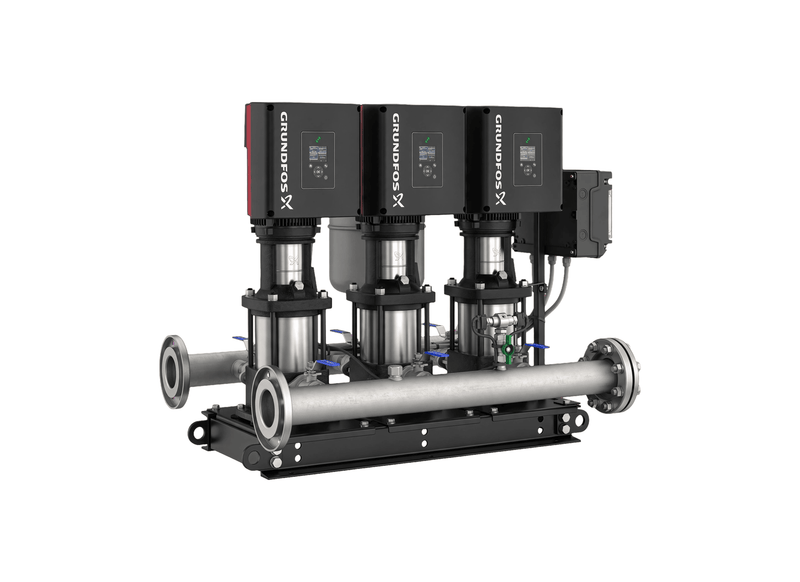

Grundfos Hydro Multi-E 3 x CRE 10-4 Three Phase 3 x 1.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In gymnasiums, aquatic centres and student housing running wall-to-wall showers, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 3 CRE 10-4 answers with three CRE 10-4 pumps operating in parallel. Specify part number 99614351 and the whole set lands tested, assembled and ready for pipework.
This set provides up to 668 L/min of flow capacity. Variable-speed operation can develop up to 57 metres of head where required. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 80 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 9.3 A, with IP54 motor protection and a 10 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers aged-care complexes, industrial process supply and hospitals. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Rated 1.5 kW (P2) on every main pump in the frame.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- The system protects its pumps against dry running if the incoming supply is lost.
- Three Grundfos CRE 10-4 vertical multistage pumps run in parallel on one common base frame.
- The stainless steel manifold assembly is supplied with two 80 mm manifold connections.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
What's Included
- 3 x Grundfos CRE 10-4 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 668 L/Min |
| Max Head | 57 m |
| Power | 3 x 1.5 kW / 415v |
| Rated Current | 3 x 9.3 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow rate can this multi pump package displace when operating at full capacity?
Operating across its factory curve, the Grundfos Hydro Multi-E 3 CRE 10-4 U2 A-A-I-I-DU discharges up to 668 L/min of clean water to maintain consistent line pressure during peak demand cycles.
Which electric motor drives and frequency converters provide propulsion on this booster skid?
Each centrifugal stage of the Hydro Multi-E 3 CRE 10-4 is driven by a 1.5 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
Which vertical head pressure does this parallel multistage booster assembly generate?
Elevating water across multi-level pipework, the Hydro-Multi-E-3-CRE-10-4 maintains up to 57 m total dynamic head with an overall 10 bar maximum operating limit.
What manifold connection hardware and isolation valves are installed across this booster skid?
Plumbed for rapid site installation, the Hydro Multi E 3 CRE 10 4 includes DN 80 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
Which factory warranty coverage protects the complete multi pump booster skid?
Grundfos provides two-year manufacturer warranty coverage on the 3 CRE 10-4 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
