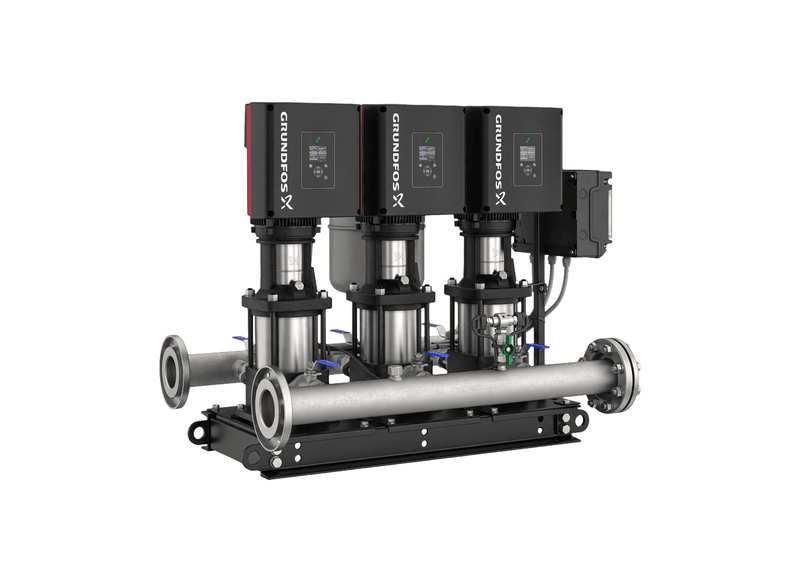

Grundfos Hydro Multi-E 3 x CRE 10-6 Three Phase 3 x 3kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In gymnasiums, aquatic centres and student housing running wall-to-wall showers, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 3 CRE 10-6 answers with three CRE 10-6 pumps operating in parallel. Specify part number 99614423 and the whole set lands tested, assembled and ready for pipework.
This set provides up to 744 L/min of flow capacity. Variable-speed operation can develop up to 87 metres of head where required. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 18.6 A. Motors are protected to IP54, while maximum system pressure is 10 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers industrial process supply, hospitals and hotel plant rooms. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The system pairs three CRE 10-6 pumps in parallel duty, controlled as a single coordinated system.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- The system protects its pumps against dry running if the incoming supply is lost.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Rated 3 kW (P2) on every main pump in the frame.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Rated for 10 bar system pressure; motors carry IP54 protection.
What's Included
- 3 x Grundfos CRE 10-6 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 744 L/Min |
| Max Head | 87 m |
| Power | 3 x 3 kW / 415v |
| Rated Current | 3 x 18.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic head and system working pressure rating does this multi pump booster set maintain?
Under peak line requirements, the Grundfos Hydro Multi-E 3 CRE 10-6 U2 A-A-I-I-DU delivers a maximum vertical head of 87 m and accommodates working system pressures up to 10 bar.
How are the parallel pump stages plumbed with isolating valves and non return check valves?
Factory pipework configuration on the Hydro Multi-E 3 CRE 10-6 incorporates DN 80 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
How is this variable speed booster system protected by factory warranty terms?
Factory backing for the Hydro-Multi-E-3-CRE-10-6 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
What peak volumetric water flow can this packaged booster assembly maintain across the network?
At full operational capacity, the Hydro Multi E 3 CRE 10 6 provides up to 744 L/min total water throughput to satisfy heavy facility consumption requirements.
Which electric motor specification and frequency converter powers this multi pump booster unit?
Power for the 3 CRE 10-6 (Hydro Multi-E) is delivered via three high-efficiency IE5 permanent-magnet MGE electric motors of 3 kW each, wired for a 3 x 380-415 V electrical supply with built-in speed regulation.
