SKU: 99614427

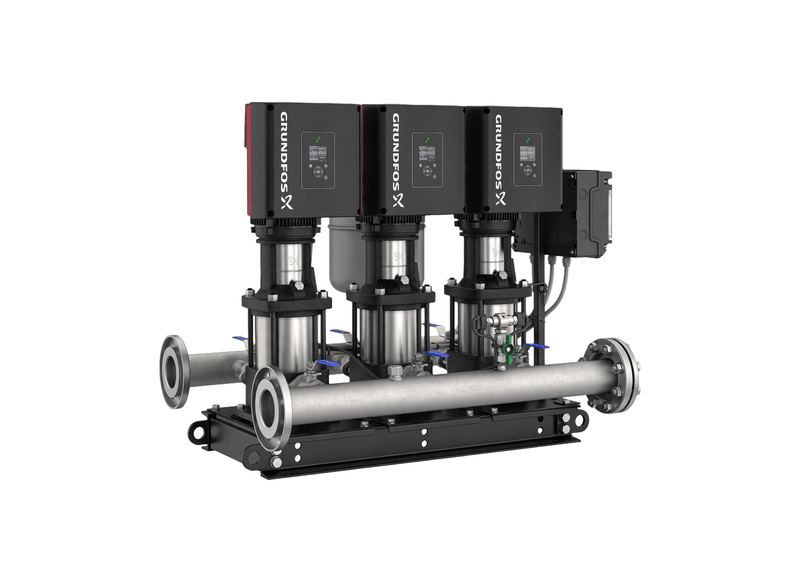

Grundfos Hydro Multi-E 3 x CRE 10-9 Three Phase 3 x 4kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For mixed-use buildings where a single booster covers retail, offices and apartments, a factory-assembled Hydro Multi-E 3 CRE 10-9 package provides a well-matched solution, with three CRE 10-9 pumps staged against the demand curve. One factory-tested package replaces a shelf of loose components; order part number 99614427 to put it on site.
It handles flows up to 711 L/min across the system. The pumps can develop up to 130 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 80 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 24.3 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Typical duty sits with aged-care complexes, mixed-use commercial buildings and schools and universities. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Three Grundfos CRE 10-9 pumps share the boosting work in parallel.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Rated 4 kW (P2) on every main pump in the frame.
What's Included
- 3 x Grundfos CRE 10-9 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 711 L/Min |
| Max Head | 130 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 24.3 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What manifold port diameters and check valve fittings connect the pumps on this booster assembly?
Header plumbing on the Grundfos Hydro Multi-E 3 CRE 10-9 U2 A-A-I-I-DU provides DN 80 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
What manufacturer warranty backing supports this packaged variable speed pump set?
Protection on the Hydro Multi-E 3 CRE 10-9 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Which water throughput capacity does this multi pump booster set maintain during maximum facility draw?
Under maximum network draw, the Hydro-Multi-E-3-CRE-10-9 supplies a peak fluid flow rate of up to 711 L/min across its variable speed centrifugal stages.
How is electric motor propulsion and inverter regulation delivered across this booster assembly?
Propulsion across the Hydro Multi E 3 CRE 10 9 is supplied by three IE5 permanent-magnet MGE electric motors rated at 4 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
Under full duty operation, what maximum head and operating pressure does this booster package produce?
For vertical pressure boosting, the 3 CRE 10-9 (Hydro Multi-E) produces up to 130 m total elevation head with a 16 bar maximum working pressure envelope.
