Roll over image to zoom
SKU: 99614467

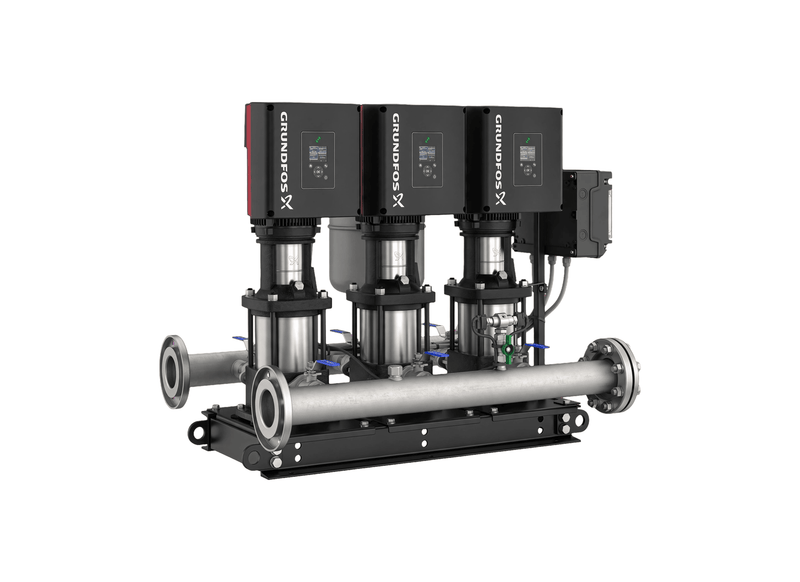

Grundfos Hydro Multi-E 3 x CRE 20-1 Three Phase 3 x 2.2kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro Multi-E 3 CRE 20-1 is a proven fit for aged-care villages and medical centres that cannot tolerate pressure swings, with three Grundfos CRE 20-1 pumps staged automatically as demand varies. Specify part number 99614467 and the whole set lands tested, assembled and ready for pipework.
Flow capacity reaches 1734 L/min. Up to 20 metres of head is available to maintain pressure as demand changes. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The three-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 100 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 13.3 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Expect it on hospitals and mixed-use commercial buildings sites, plus aged-care complexes duties. It provides clean-water pressure boosting for both new plant rooms and refits.
Features
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Three Grundfos CRE 20-1 vertical multistage pumps run in parallel on one common base frame.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Stainless steel manifolds provide two 100 mm manifold connections ready for pipework.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Each main pump is rated 2.2 kW (P2), so per-pump draw scales down as speed follows demand.
What's Included
- 3 x Grundfos CRE 20-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 1734 L/Min |
| Max Head | 20 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 3 x 13.3 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which stainless steel manifold connections and valve hardware are provided on this booster set?
Header plumbing on the Grundfos Hydro Multi-E 3 CRE 20-1 U2 A-A-I-I-D provides DN 100 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
Which factory warranty coverage and service terms apply to this booster assembly?
Protection on the Hydro Multi-E 3 CRE 20-1 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
What total water pumping volume can this packaged multi pump assembly achieve at peak system duty?
Under maximum network draw, the Hydro-Multi-E-3-CRE-20-1 supplies a peak fluid flow rate of up to 1734 L/min across its variable speed centrifugal stages.
What variable frequency motor propulsion powers each pump wet end in this packaged booster skid?
Propulsion across the Hydro Multi E 3 CRE 20 1 is supplied by three IE5 permanent-magnet MGE electric motors rated at 2.2 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
What dynamic head pressure does this parallel booster package generate across distribution pipework?
For vertical pressure boosting, the 3 CRE 20-1 (Hydro Multi-E) produces up to 20 m total elevation head with a 10 bar maximum working pressure envelope.
