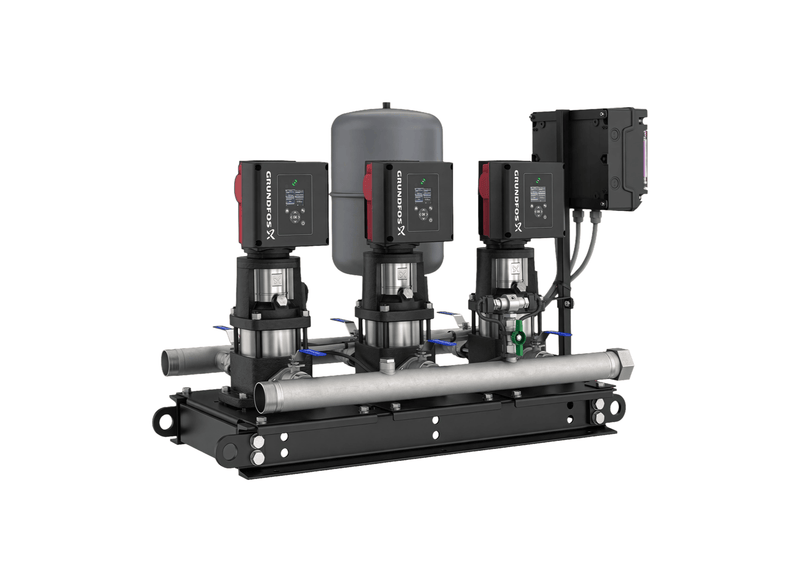

Grundfos Hydro Multi-E 3 x CRE 3-8 Single Phase 3 x 0.75kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Where holiday units and boutique apartment blocks juggling showers at the morning peak are served from a single booster, the Hydro Multi-E 3 CRE 3-8 holds pressure steady as three CRE 3-8 pumps respond to changing flow. Quote part number 99614251 to have it arrive pre-configured and ready for the plant room.
This set provides up to 237 L/min of flow capacity. Variable-speed operation can develop up to 73 metres of head where required. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The three-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 50 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 1 x 200-240 V at 50 / 60 Hz with a rated current of 13.5 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Expect it on industrial process supply and hotel plant rooms sites, plus aged-care complexes duties. It provides clean-water pressure boosting for both new plant rooms and refits.
Features
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- At P2 each main pump is 0.75 kW, covering the duty without oversizing the frame.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The stainless steel manifold assembly is supplied with two 50 mm manifold connections.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- Three Grundfos CRE 3-8 vertical multistage pumps run in parallel on one common base frame.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
What's Included
- 3 x Grundfos CRE 3-8 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 237 L/Min |
| Max Head | 73 m |
| Power | 3 x 0.75 kW / 240v |
| Rated Current | 3 x 13.5 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak water delivery capacity does this multi pump booster assembly maintain across peak demand?
Operating across its factory curve, the Grundfos Hydro Multi-E 3 CRE 3-8 U8 A-A-I-I-DU discharges up to 237 L/min of clean water to maintain consistent line pressure during peak demand cycles.
How is mechanical power delivered and electronically regulated across this multi pump booster skid?
Each centrifugal stage of the Hydro Multi-E 3 CRE 3-8 is driven by a 0.75 kW IE5 permanent-magnet MGE electric motor running on 1 x 200-240 V power, utilizing built-in variable speed drives to adjust output dynamically.
What dynamic elevation head does this variable frequency booster package achieve on the mains?
Elevating water across multi-level pipework, the Hydro-Multi-E-3-CRE-3-8 maintains up to 73 m total dynamic head with an overall 10 bar maximum operating limit.
Which manifold connection ports and isolating ball valves are factory fitted on this unit?
Plumbed for rapid site installation, the Hydro Multi E 3 CRE 3 8 includes R 2 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
How is this packaged multi pump booster skid protected under manufacturer warranty?
Grundfos provides two-year manufacturer warranty coverage on the 3 CRE 3-8 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
