SKU: 93320253

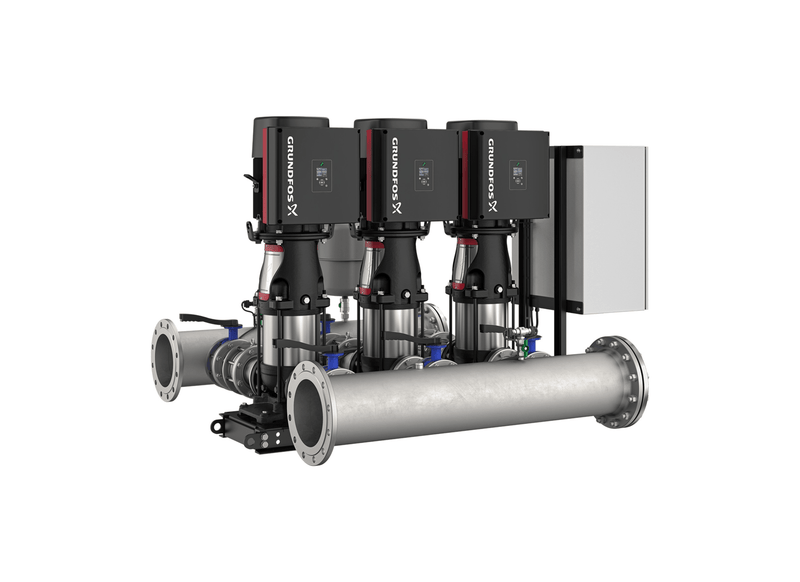

Grundfos Hydro Multi-E 3 x CRE 45-3 Three Phase 3 x 18.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Maritime terminal offices and dockside amenities operate dependable boosting via the Hydro Multi-E 3 CRE 45-3. Operating three CRE 45-3 pumps in parallel duty, the booster automatically cuts pumps in and out to track line velocity. Ordering part number 93320253 puts the fully tested booster skid directly onto the plant room floor.
Discharge flow expands smoothly up to 3500 L/min to meet fixture demand. Up to 111.2 metres of delivery head is available to keep upper-floor fixtures pressurised. Advanced Multi-Master firmware shares operating duties directly between pump heads, providing immediate fail-safe handover if an individual drive is isolated.
Constructed on a rigid fabricated baseplate, the booster features stainless steel pipework, two 200 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 96 A (3 x 32 A per pump). Motors carry IP54 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
The booster set provides robust, constant pressure for food production facilities, logistics distribution hubs and aquatic sports centres, protecting delicate wash systems. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- The system pairs three CRE 45-3 pumps in parallel duty, controlled as a single coordinated system.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- At P2 each main pump is 18.5 kW, covering the duty without oversizing the frame.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- The system protects its pumps against dry running if the incoming supply is lost.
- Stainless steel manifolds provide two 200 mm manifold connections ready for plant pipework.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
What's Included
- 3 x Grundfos CRE 45-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 111 m |
| Power | 3 x 18.5 kW / 415v |
| Rated Current | 3 x 32 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much elevation lift and maximum discharge pressure can this multistage booster unit maintain?
Delivering high-elevation lift, the Grundfos Hydro Multi-E 3 CRE45-3 U2 A-A-I-I-D (part number 93320253) maintains up to 111.2 m dynamic head with an allowable working pressure of 16 bar.
Which suction and discharge pipe connections and isolating valves are fitted to this package?
Factory manifold integration on the Hydro Multi-E 3 CRE45-3 incorporates DN 200 stainless steel suction and discharge pipework with individual check valves and isolating valves.
What factory warranty protection is provided for this multi-pump booster package?
Australian technical protection for the Hydro-Multi-E-3-CRE45-3 includes a genuine Grundfos two-year manufacturer warranty supported by factory-trained technicians and spare components.
Under peak operational conditions, what fluid volume does this variable speed booster package provide?
Under maximum water demand, the Hydro Multi E 3 CRE45 3 delivers a peak displacement rate of 3500 L/min across parallel centrifugal stages.
What motor technology and frequency drive system provides propulsion for this booster package?
Variable speed propulsion on the 3 CRE45-3 (Hydro Multi-E) utilizes three 18.5 kW IE5 permanent-magnet MGE electric motors connected to a 3 x 380-415 V power line.
