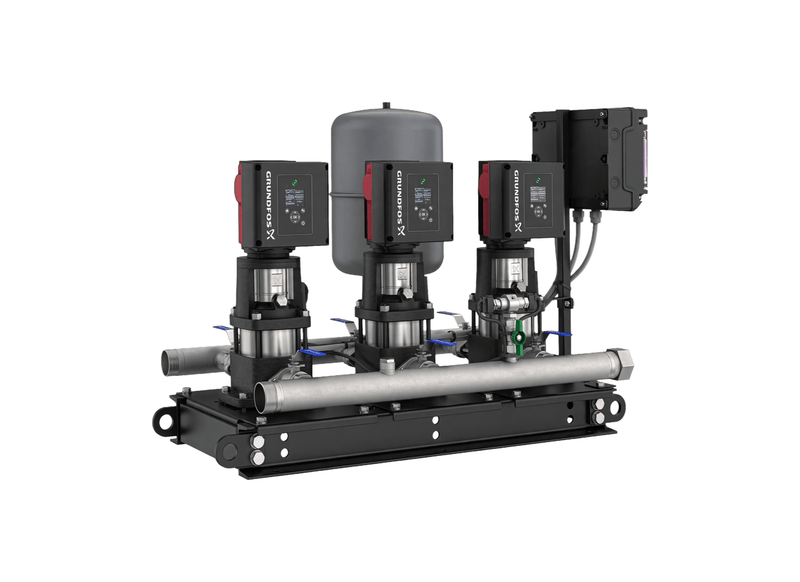

Grundfos Hydro Multi-E 3 x CRE 5-16 Three Phase 3 x 3kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Childcare centres and clinic fitouts that live on steady warm-water supply get a constant-pressure answer in this Grundfos Hydro Multi-E 3 CRE 5-16 set. Specify part number 99614361 and the whole set lands tested, assembled and ready for pipework.
The system supports flow rates up to 462 L/min. It can develop up to 155 metres of head for dependable pressure boosting. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 50 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 18.6 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Typical duty sits with industrial process supply, hospitals and schools and universities. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- The stainless steel manifold assembly is supplied with two 50 mm manifold connections.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- At P2 each main pump is 3 kW, covering the duty without oversizing the frame.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- The system pairs three CRE 5-16 pumps in parallel duty, controlled as a single coordinated system.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
What's Included
- 3 x Grundfos CRE 5-16 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 462 L/Min |
| Max Head | 155 m |
| Power | 3 x 3 kW / 415v |
| Rated Current | 3 x 18.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum volumetric delivery does this packaged booster system provide for distribution headers?
Operating across its factory curve, the Grundfos Hydro Multi-E 3 CRE 5-16 U2 A-A-I-I-DU discharges up to 462 L/min of clean water to maintain consistent line pressure during peak demand cycles.
How are the centrifugal pumps driven and inverter regulated across variable network demands?
Each centrifugal stage of the Hydro Multi-E 3 CRE 5-16 is driven by a 3 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
Under full discharge duty, what maximum elevation head does this packaged booster skid maintain?
Elevating water across multi-level pipework, the Hydro-Multi-E-3-CRE-5-16 maintains up to 155 m total dynamic head with an overall 16 bar maximum operating limit.
Which suction and discharge pipe fittings are factory integrated on this packaged booster set?
Plumbed for rapid site installation, the Hydro Multi E 3 CRE 5 16 includes R 2 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
What warranty coverage and Australian support backs this packaged booster system?
Grundfos provides two-year manufacturer warranty coverage on the 3 CRE 5-16 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
