SKU: 93328668

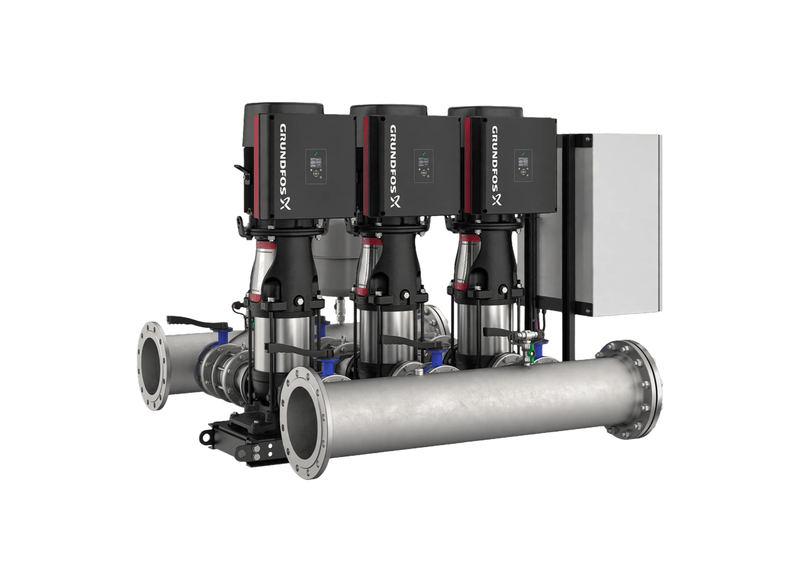

Grundfos Hydro Multi-E 3 x CRE 64-3 Three Phase 3 x 26kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For high-traffic commercial complexes that cannot trade on an 8 am pressure sag, a factory-assembled Hydro Multi-E 3 CRE64-3 package provides a well-matched solution, with three CRE 64-3 pumps staged against the demand curve. Quote part number 93328668 to have it arrive pre-configured and ready for the plant room.
The system supports flow rates up to 4818 L/min. It can develop up to 130 metres of head for dependable pressure boosting. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 200 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 132 A. Motors are protected to IP54, while maximum system pressure is 16 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Applications include industrial process supply, aged-care complexes and mixed-use commercial buildings. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- Three Grundfos CRE 64-3 pumps share the boosting work in parallel.
- The system protects its pumps against dry running if the incoming supply is lost.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Stainless steel manifolds provide two 200 mm manifold connections ready for pipework.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- At P2 each main pump is 26 kW, covering the duty without oversizing the frame.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
What's Included
- 3 x Grundfos CRE 64-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 4818 L/Min |
| Max Head | 130 m |
| Power | 3 x 26 kW / 415v |
| Rated Current | 3 x 132 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the centrifugal pumps driven and inverter regulated across variable network demands?
Electronic speed regulation across the Grundfos Hydro Multi-E 3 CRE64-3 U2 A-A-I-I-D is provided by three IE5 permanent-magnet MGE electric motors rated at 26 kW apiece on 3 x 380-415 V power, modulating motor rpm according to demand.
Under full discharge duty, what maximum elevation head does this packaged booster skid maintain?
Hydraulic elevation capability on the Hydro Multi-E 3 CRE64-3 generates up to 130 m total dynamic head while supporting a maximum operating pressure rating of 16 bar.
Which suction and discharge pipe fittings are factory integrated on this packaged booster set?
Common manifolding across the Hydro-Multi-E-3-CRE64-3 utilizes DN 200 stainless steel suction and discharge pipework with integrated non-return valves and isolating ball valves.
What warranty coverage and Australian support backs this packaged booster system?
Investment protection for the Hydro Multi E 3 CRE64 3 features a genuine Grundfos two-year manufacturer warranty supported by nationwide technical service and replacement components.
Which fluid delivery volume does this parallel booster assembly displace during high demand hours?
For high-demand distribution pipework, the 3 CRE64-3 (Hydro Multi-E) delivers a peak water displacement rate of 4818 L/min across its parallel multistage pump assembly.
