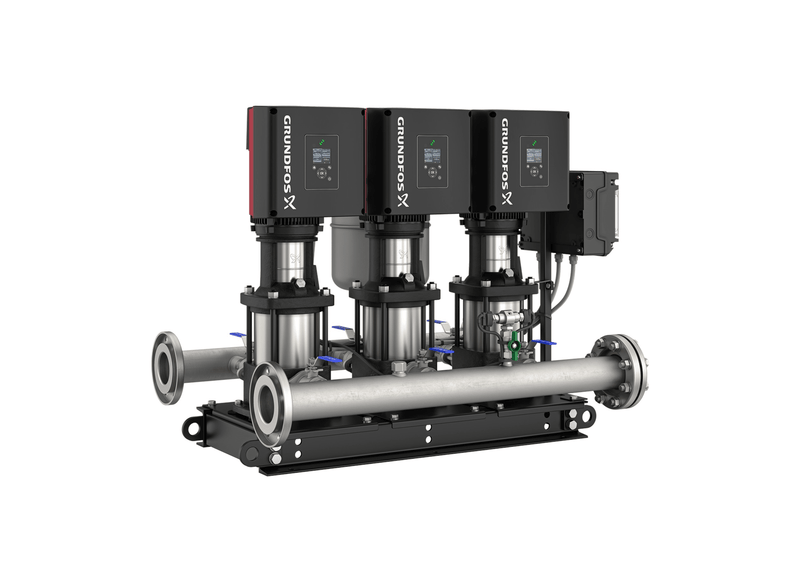

Grundfos Hydro Multi-E 3 x CRNE 10-1 Single Phase 3 x 0.55kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suburban day surgery facilities requiring uninterrupted theater wash supply depend on the Hydro Multi-E 3 CRNE 10-1. Three Grundfos CRNE 10-1 multistage pumps work in unison on the base frame, modulating rotational speed to follow the facility draw curve. Everything is ordered under the single manufacturer part number 99752265.
Volumetric throughput easily extends up to 750 L/min as fixtures multiply. The vertical stage assembly can build up to 14 metres of head for steep elevations. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Pre-packaged as an integrated pumping assembly, the system features stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 1 x 200-240 V supply at 50 / 60 Hz with combined rated current of 10 A (3 x 3.33 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
The booster easily accommodates water demand across mixed-use commercial buildings, corporate office towers and shopping centres, scaling smoothly as fixtures open. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Each main pump is rated 0.55 kW (P2), so per-pump draw scales down as speed follows demand.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- The system pairs three CRNE 10-1 pumps in parallel duty, controlled as a single coordinated system.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 3 x Grundfos CRNE 10-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 14 m |
| Power | 3 x 0.55 kW / 240v |
| Rated Current | 3 x 3.33 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak water displacement rate does this variable frequency booster unit achieve?
Maximum water throughput on the Grundfos Hydro Multi-E 3 CRNE 10-1 U8 A-A-I-I-DU (part number 99752265) reaches up to 750 L/min under full variable speed operation.
Which electric motor package and drive electronics power each pump on this packaged skid?
Precision motor modulation on the Hydro Multi-E 3 CRNE 10-1 is delivered by three IE5 permanent-magnet MGE electric motors producing 0.55 kW per pump from a 1 x 200-240 V electrical supply.
What maximum dynamic lift and operating pressure rating applies to this booster package?
For vertical pressure boosting, the Hydro-Multi-E-3-CRNE-10-1 produces up to 14 m total elevation head with an 10 bar maximum working pressure envelope.
What manifold port fittings and line isolation hardware are installed on this booster unit?
Suction and discharge manifolding on the Hydro Multi E 3 CRNE 10 1 features DN 80 stainless steel headers with individual pump isolating valves and discharge non-return check valves.
Which factory warranty provisions apply to this variable speed booster assembly?
Purchasing protection on the 3 CRNE 10-1 (Hydro Multi-E) incorporates a genuine Grundfos two-year manufacturer warranty covering mechanical components, pipework, and drive units.
