SKU: 99752269

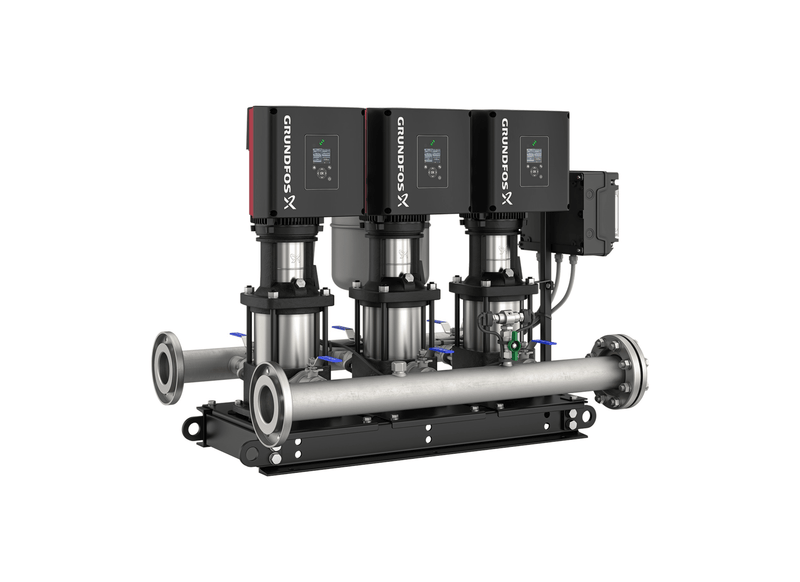

Grundfos Hydro Multi-E 3 x CRNE 10-1 Three Phase 3 x 0.55kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
State forestry depots and regional nursery facilities rely on the Hydro Multi-E 3 CRNE 10-1. Configured with three CRNE 10-1 vertical pumps in parallel, the booster dynamically matches motor speed to immediate water requirements. Specify part number 99752269 and the complete factory-tested package arrives ready for connection.
Peak flow velocity supports draw rates up to 750 L/min across the header. To pressurise elevated upper levels, the pumps develop up to 14 metres of head. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Engineered on a common steel baseplate, the package includes stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 4.41 A (3 x 1.47 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Specified across commercial properties including mixed-use commercial buildings, corporate office towers and shopping centres, the booster operates with top efficiency. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Three Grundfos CRNE 10-1 pumps share the boosting work in parallel.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- The system protects its pumps against dry running if the incoming supply is lost.
- Rated 0.55 kW (P2) on every main pump in the frame.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
What's Included
- 3 x Grundfos CRNE 10-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 14 m |
| Power | 3 x 0.55 kW / 415v |
| Rated Current | 3 x 1.47 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under what warranty coverage is this complete multi-pump booster package supplied?
Official manufacturer backing on the Grundfos Hydro Multi-E 3 CRNE 10-1 U2 A-A-I-I-DU (part number 99752269) provides a Grundfos two-year warranty with authorized Australian technical assistance and spare parts availability.
What fluid transfer capacity does this parallel centrifugal booster unit provide across the mains?
During periods of high consumption, the Hydro Multi-E 3 CRNE 10-1 provides a maximum water flow rate of 750 L/min.
What variable speed electric motor units power the parallel multistage pumps on this package?
Each centrifugal pump of the Hydro-Multi-E-3-CRNE-10-1 is driven by a 0.55 kW IE5 permanent-magnet MGE electric motor running on a 3 x 380-415 V power supply with integrated speed regulation.
What total dynamic head and operating pressure capability does this booster set provide?
Vertical elevation performance allows the Hydro Multi E 3 CRNE 10 1 to develop up to 14 m total dynamic head within an 10 bar system rating.
How are the inlet and outlet manifolds arranged to allow independent pump maintenance?
Mechanical manifold assembly on the 3 CRNE 10-1 (Hydro Multi-E) supplies DN 80 stainless steel suction and discharge pipework fitted with isolating valves and discharge check valves.
