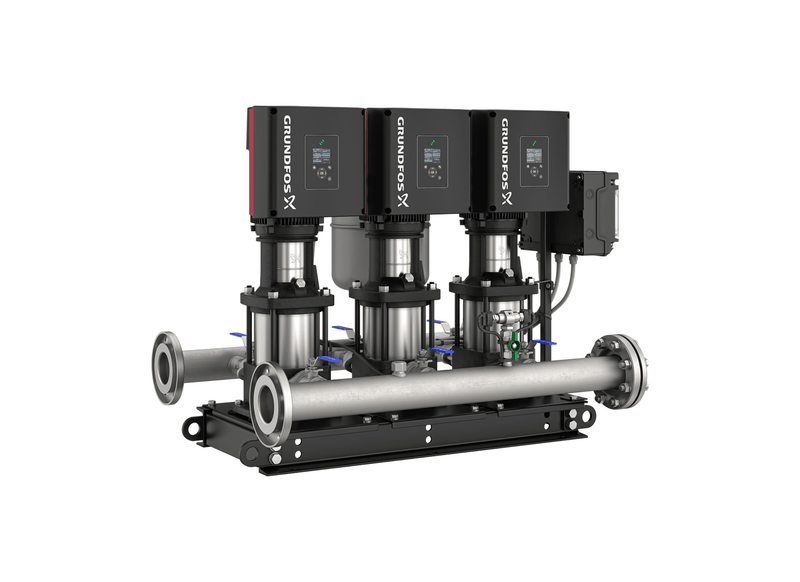

Grundfos Hydro Multi-E 3 x CRNE 10-10 Three Phase 3 x 5.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Multi-building retirement estate villages managing extensive ring mains operate the Hydro Multi-E 3 CRNE 10-10. Three Grundfos CRNE 10-10 multistage pumps share the hydraulic load across a common skid, staging smoothly to match real-time draw. The complete booster system ships factory assembled and certified under part number 99752298.
Delivering up to 905 L/min of continuous volumetric flow across the plant, Line pressure is maintained with up to 149 metres of maximum delivery head. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Built on an integrated floor-mounted baseplate, the system brings together stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 Hz with combined rated current of 32.9 A (3 x 10.97 A per pump). Motors carry IP55 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
The engineered booster set provides unshakeable water boosting across hospital surgical wings, aged-care complexes and industrial process supply, supporting tough plant duty. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- At P2 each main pump is 5.5 kW, covering the duty without oversizing the frame.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Three Grundfos CRNE 10-10 vertical multistage pumps run in parallel on one common base frame.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- The system protects its pumps against dry running if the incoming supply is lost.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Maximum operating pressure of 16 bar with motors sealed to IP55.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
What's Included
- 3 x Grundfos CRNE 10-10 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 149 m |
| Power | 3 x 5.5 kW / 415v |
| Rated Current | 3 x 10.97 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical motor technology drives the vertical multistage pumps in this booster assembly?
Dedicated electric motor packages on the Grundfos Hydro Multi-E 3 CRNE 10-10 U2 A-A-I-I-DU (part number 99752298) feature three IE5 permanent-magnet MGE electric motors of 5.5 kW apiece on a 3 x 380-415 V power supply.
What dynamic head and system working pressure rating does this multi-pump booster set maintain?
Hydraulic elevation capability on the Hydro Multi-E 3 CRNE 10-10 generates up to 149 m total dynamic head while supporting an operating pressure rating of 16 bar.
How are the parallel pump stages plumbed with isolating valves and non-return check valves?
Header plumbing on the Hydro-Multi-E-3-CRNE-10-10 provides DN 80 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
How is this variable speed booster system protected by factory warranty terms?
Nationwide factory protection backs the Hydro Multi E 3 CRNE 10 10 through a genuine Grundfos two-year manufacturer warranty with local technical support across Australia.
What peak volumetric water flow can this packaged booster assembly maintain across the network?
To support heavy fluid consumption, the 3 CRNE 10-10 (Hydro Multi-E) delivers an overall water transfer volume of 905 L/min.
