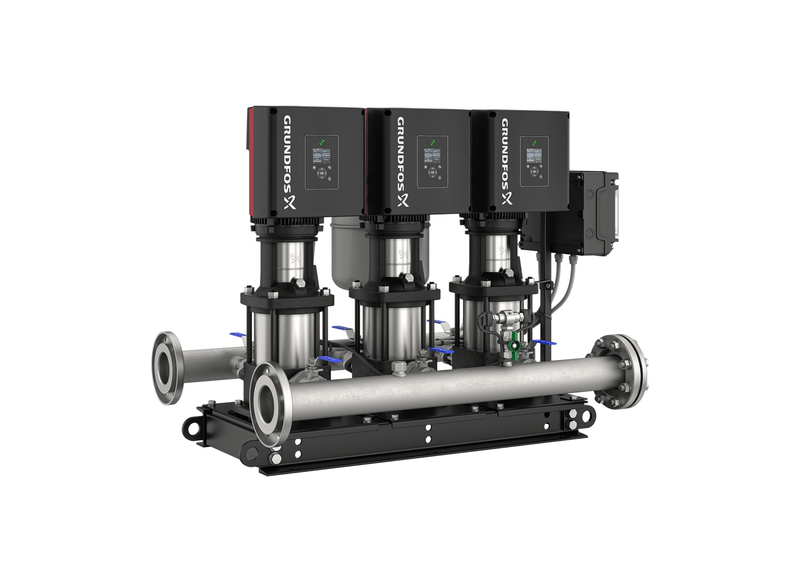

Grundfos Hydro Multi-E 3 x CRNE 10-5 Three Phase 3 x 2.2kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Suburban wellness spas and hydrotherapy treatment clinics depend on the Hydro Multi-E 3 CRNE 10-5. Three Grundfos CRNE 10-5 multistage pumps work in unison on the base frame, modulating rotational speed to follow the facility draw curve. Part number 99752290 provides the complete tested package in a single order line.
Volumetric delivery peaks at 905 L/min to maintain fixture velocity. Multistage vertical hydraulics produce up to 74 metres of maximum head. Integrated Multi-Master intelligence coordinates the pumps without requiring an external control panel, ensuring automatic role swapping and uninterrupted pressure stabilization.
Pre-plumbed on a shared fabricated frame, the booster includes stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 13.3 A (3 x 4.43 A per pump). Motors carry IP55 sealing with maximum pressure of 10 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 10 bar.
Routine installation environments span mixed-use commercial buildings, corporate office towers and shopping centres, where reliable clean-water pressure is required. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- At P2 each main pump is 2.2 kW, covering the duty without oversizing the frame.
- The system protects its pumps against dry running if the incoming supply is lost.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Three Grundfos CRNE 10-5 vertical multistage pumps run in parallel on one common base frame.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 3 x Grundfos CRNE 10-5 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 74 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 3 x 4.43 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the parallel multistage pumps plumbed into common suction and discharge manifolds?
Fluid connection headers on the Grundfos Hydro Multi-E 3 CRNE 10-5 U2 A-A-I-I-DU (part number 99752290) provide DN 80 stainless steel suction and discharge manifolding complete with isolation valves and check valves.
Which manufacturer warranty provisions cover the complete packaged booster set?
Complete equipment coverage for the Hydro Multi-E 3 CRNE 10-5 incorporates a genuine Grundfos two-year manufacturer warranty covering all mechanical wet ends, motors, and manifold headers.
What peak water delivery rate can this parallel pump package achieve across the distribution network?
For high-draw distribution headers, the Hydro-Multi-E-3-CRNE-10-5 provides a maximum water delivery volume of 905 L/min.
Which electric drive motor specification powers the parallel pump wet ends on this skid?
Electric motor drives powering the Hydro Multi E 3 CRNE 10 5 comprise three 2.2 kW IE5 permanent-magnet MGE electric units operating on a 3 x 380-415 V electrical connection.
What vertical elevation capability and operating pressure rating does this booster package provide?
Under full discharge head conditions, the 3 CRNE 10-5 (Hydro Multi-E) achieves up to 74 m total dynamic lift and an 10 bar operating pressure.
