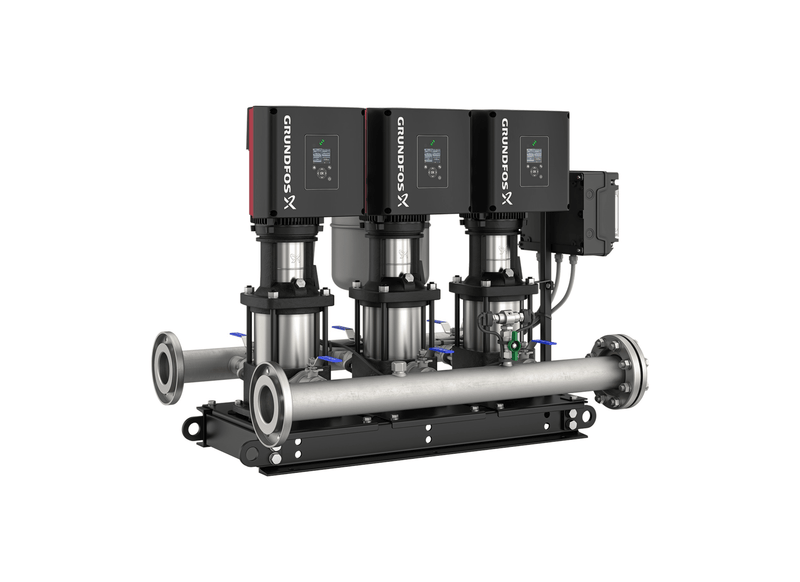

Grundfos Hydro Multi-E 3 x CRNE 10-9 Three Phase 3 x 4kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Urban transit terminal hubs maintaining heavy-traffic public amenities select the Hydro Multi-E 3 CRNE 10-9. The package operates three Grundfos CRNE 10-9 vertical multistage pumps in parallel, automatically staging each unit as flow demand increases. Specify part number 99752296 and the complete factory-tested package arrives ready for connection.
Header flow capacity reaches up to 905 L/min during intensive use periods. To pressurise elevated upper levels, the pumps develop up to 133 metres of head. Because every pump carries its own frequency converter and Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
Mounted on an industrial channel-iron skid, the package combines stainless steel manifolds, two 80 mm manifold connections, isolation and non-return valves, pressure sensors, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 24.3 A (3 x 8.1 A per pump). Motors carry IP55 sealing with maximum pressure of 16 bar. Liquid-temperature suitability is 5°C to 60°C, and inlet pressure is rated to 16 bar.
Commercial facilities such as high-rise apartments, hotel plant rooms and schools and universities rely on the package for smooth, inverter-driven flow. Variable-speed motor modulation makes the set a practical clean-water pressure-boosting solution for both new plant rooms and system upgrades.
FEATURES
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
- Each main pump is rated 4 kW (P2), so per-pump draw scales down as speed follows demand.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Stainless steel manifolds provide two 80 mm manifold connections ready for plant pipework.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Three Grundfos CRNE 10-9 vertical multistage pumps run in parallel on one common base frame.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Maximum operating pressure of 16 bar with motors sealed to IP55.
- The system protects its pumps against dry running if the incoming supply is lost.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a smartphone.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
What's Included
- 3 x Grundfos CRNE 10-9 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 905 L/Min |
| Max Head | 133 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 8.1 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric liquid delivery can this multi-pump package supply for building water distribution?
Parallel pump operation enables the Grundfos Hydro Multi-E 3 CRNE 10-9 U2 A-A-I-I-DU (part number 99752296) to discharge a peak water volume of 905 L/min into header pipework.
How are the pump wet ends powered and electronically controlled during variable demand hours?
Propulsion across the Hydro Multi-E 3 CRNE 10-9 is supplied by three IE5 permanent-magnet MGE electric motors rated at 4 kW each on a 3 x 380-415 V electrical supply.
What vertical discharge head and system pressure rating does this packaged booster unit generate?
Elevating water across multi-level pipework, the Hydro-Multi-E-3-CRNE-10-9 maintains up to 133 m total dynamic head with an overall 16 bar operating limit.
Which pipe connection fittings and check valves are assembled onto this packaged booster skid?
Hydraulic header plumbing across the Hydro Multi E 3 CRNE 10 9 incorporates DN 80 stainless steel suction and discharge manifolds with built-in non-return valves and isolating valves.
Under what factory warranty coverage is this multi-pump booster skid supplied?
Long-term operational backing for the 3 CRNE 10-9 (Hydro Multi-E) includes an authentic Grundfos two-year manufacturer warranty covering the parallel pumps, manifolds, and skid frame.
