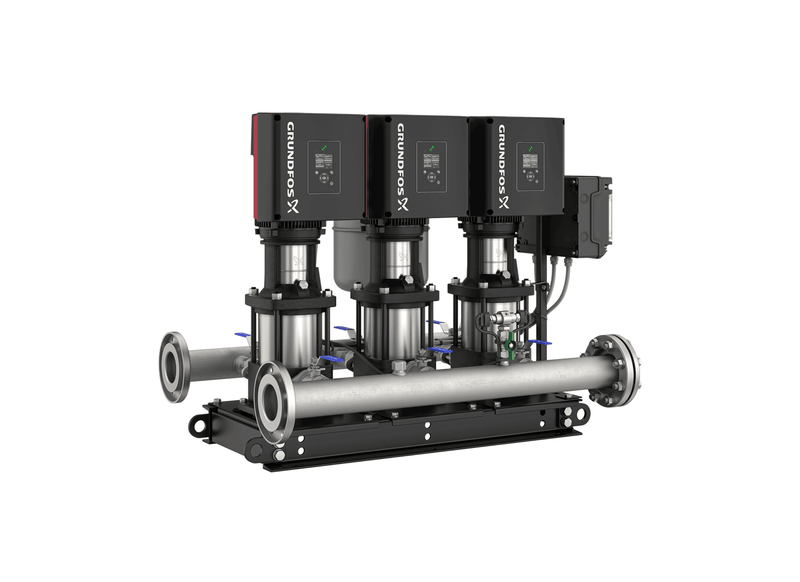

Grundfos Hydro Multi-E 3 x CRNE 20-2 Three Phase 3 x 3kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Sports stadiums and aquatic centre change facilities install the high-capacity Grundfos Hydro Multi-E 3 x CRNE 20-2 Three Phase 3 x 3kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE 20-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 99752363 provides the complete tested package in a single order line.
Capable of answering sudden demand surges, the unit supplies bulk water flow up to 1750 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 42 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
The self-contained booster skid is constructed on a torsionally rigid mounting platform. The set is fully pre-plumbed with two 100 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 18.6 A (3 x 6.2 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Specified for airport terminal concourses, railway stations, and bus transit interchanges. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Peak volumetric clean water delivery flow up to 1750 L/min
- Pre-plumbed with two 100 mm manifold connections and isolating non-return valves
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Combined rated current draw of 18.6 A (3 x 6.2 A per pump)
- Maximum vertical delivery head up to 42 metres
- Integrated multi-pump array featuring three Grundfos CRNE 20-2 multistage pumps
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Permissible liquid temperature range from 5°C to 60°C
- Industrial IP55 dust and moisture ingress protection on all pump drives
What's Included
- Grundfos Hydro Multi-E 3 CRNE 20-2 U2 A-A-I-I-DU Factory-Tested Booster Skid
- Three x Grundfos CRNE 20-2 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 100 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 1750 L/Min |
| Max Head | 42 m |
| Power | 3 x 3 kW / 415v |
| Rated Current | 3 x 6.2 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which factory warranty terms and support provisions apply to this packaged booster set?
Protection on the Grundfos Hydro Multi-E 3 CRNE 20-2 U2 A-A-I-I-DU (part number 99752363) is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
How much peak volumetric displacement does this variable speed booster assembly produce?
When all pumps run simultaneously, the Hydro Multi-E 3 CRNE 20-2 maintains a total delivery throughput of up to 1750 L/min.
Which electric motor power rating and voltage supply powers each pump in this booster set?
Mechanical propulsion across the Hydro-Multi-E-3-CRNE-20-2 utilises three 3 kW IE5 permanent-magnet MGE electric motors running on a 3 x 380-415 V mains feed.
Which maximum vertical elevation does this packaged multi-pump booster unit provide?
Vertical discharge capability on the Hydro Multi E 3 CRNE 20 2 supplies up to 42 m dynamic elevation head while maintaining 10 bar pressure tolerance.
What suction and discharge connection fittings are provided across the factory manifold skid?
Piping infrastructure across the 3 CRNE 20-2 (Hydro Multi-E) supplies factory-fitted DN 100 stainless steel suction and discharge headers with line check valves and isolating valves.
