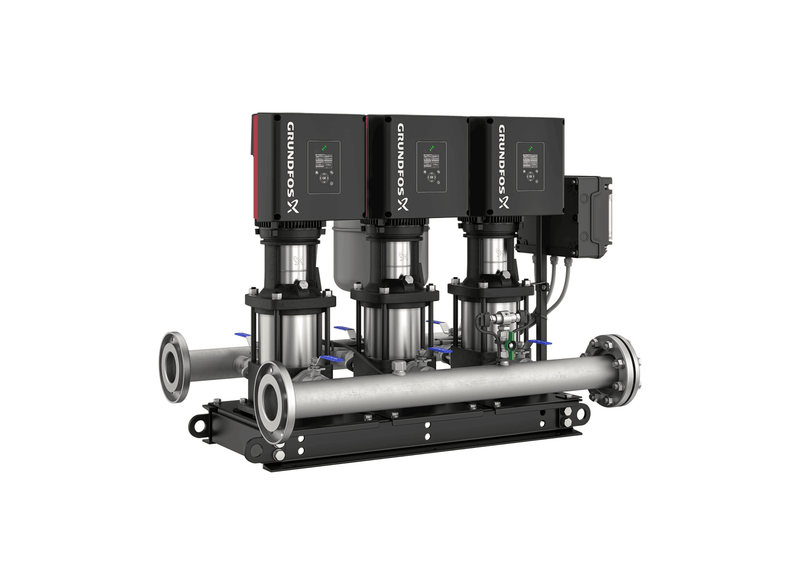

Grundfos Hydro Multi-E 3 x CRNE45-1-1 Three Phase 3 x 4kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Multi-deck commercial car parks and automated fleet wash facilities install the Grundfos Hydro Multi-E 3 x CRNE45-1-1 Three Phase 3 x 4kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE45-1-1 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93368420 provides the complete tested package in a single order line.
Operating seamlessly under modulating inverter control, the set yields flow up to 3500 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 31 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
The skid incorporates a low-vibration structural steel foundation. The set is fully pre-plumbed with two 200 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 40.9 A (3 x 13.6 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Suited to multi-storey car parks, commercial vehicle detailing bays, and fleet depots. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Combined rated current draw of 40.9 A (3 x 13.6 A per pump)
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Maximum vertical delivery head up to 31 metres
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Peak volumetric clean water delivery flow up to 3500 L/min
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
- Pre-plumbed with two 200 mm manifold connections and isolating non-return valves
- Permissible liquid temperature range from 5°C to 60°C
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Integrated multi-pump array featuring three Grundfos CRNE45-1-1 multistage pumps
What's Included
- Grundfos Hydro Multi-E 3 CRNE45-1-1 U2 A-A-I-I-DU Factory-Tested Booster Skid
- Three x Grundfos CRNE45-1-1 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 200 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 31 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 13.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What factory warranty period backs this variable speed booster system?
Grundfos provides two-year manufacturer warranty coverage on the Grundfos Hydro Multi-E 3 CRNE45-1-1 U2 A-A-I-I-DU (part number 93368420), securing the complete multi-pump package, manifolds, and integrated electronics.
Under peak consumption conditions, what water volume does this packaged booster set deliver?
Hydraulic output from the Hydro Multi-E 3 CRNE45-1-1 provides a peak volumetric transfer capacity of 3500 L/min during high consumption.
How are the parallel centrifugal pumps powered and speed regulated across variable flow demands?
High-efficiency motor packages on the Hydro-Multi-E-3-CRNE45-1-1 incorporate three 4 kW IE5 permanent-magnet MGE electric drives wired for 3 x 380-415 V operation.
How much total dynamic elevation head does this parallel centrifugal booster assembly deliver?
Dynamic head performance from the Hydro Multi E 3 CRNE45 1 1 attains a vertical elevation of up to 31 m within an 10 bar pressure rating.
Which manifold connection sizes and isolation valves are supplied on this packaged booster skid?
Factory header connections on the 3 CRNE45-1-1 (Hydro Multi-E) provide DN 200 stainless steel suction and discharge manifolds with individual pump isolating valves and non-return check valves.
