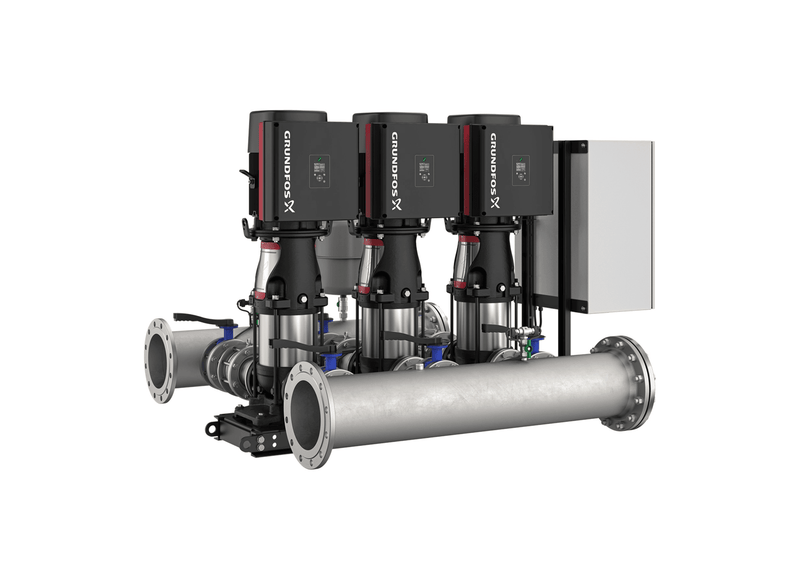

Grundfos Hydro Multi-E 3 x CRNE45-2 Three Phase 3 x 15kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Preventing domestic pressure drops across high-occupancy residential complexes is assured through the Grundfos Hydro Multi-E 3 x CRNE45-2 Three Phase 3 x 15kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE45-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93368424 provides the complete tested package in a single order line.
Throughout intense operational periods, the multi-pump system sustains delivery up to 3500 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 75 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
The multi-pump skid is built upon a high-rigidity structural support frame. The set is fully pre-plumbed with two 200 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 58.7 A (3 x 19.6 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Specified for maritime passenger terminals, naval docking facilities, and wharf amenities. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Permissible liquid temperature range from 5°C to 60°C
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Combined rated current draw of 58.7 A (3 x 19.6 A per pump)
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Pre-plumbed with two 200 mm manifold connections and isolating non-return valves
- Integrated multi-pump array featuring three Grundfos CRNE45-2 multistage pumps
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Maximum vertical delivery head up to 75 metres
- Peak volumetric clean water delivery flow up to 3500 L/min
What's Included
- Grundfos Hydro Multi-E 3 CRNE45-2 U2 A-A-I-I-D Factory-Tested Booster Skid
- Three x Grundfos CRNE45-2 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 200 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 75 m |
| Power | 3 x 15 kW / 415v |
| Rated Current | 3 x 19.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which pipework connection fittings and manifold components are factory mounted to the skid?
Header plumbing on the Grundfos Hydro Multi-E 3 CRNE45-2 U2 A-A-I-I-D (part number 93368424) provides DN 200 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
How is this multi-pump booster package protected by manufacturer warranty provisions?
Nationwide factory protection backs the Hydro Multi-E 3 CRNE45-2 through a genuine Grundfos two-year manufacturer warranty with local technical support across Australia.
How much discharge volume can this vertical multistage booster assembly provide to the facility?
To support heavy fluid consumption, the Hydro-Multi-E-3-CRNE45-2 delivers an overall water transfer volume of 3500 L/min.
What electrical drive system and motor rating powers each pump within this packaged booster unit?
Dedicated electric motor packages on the Hydro Multi E 3 CRNE45 2 feature three IE5 permanent-magnet MGE electric motors of 15 kW apiece on a 3 x 380-415 V power supply.
Which maximum system working pressure and vertical lift does this booster assembly deliver?
Hydraulic elevation capability on the 3 CRNE45-2 (Hydro Multi-E) generates up to 75 m total dynamic head while supporting an operating pressure rating of 10 bar.
