SKU: 93368432

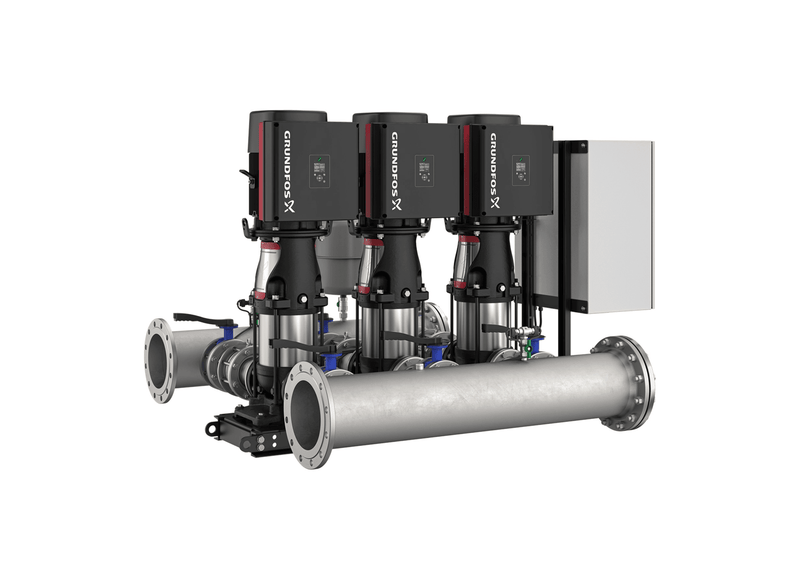

Grundfos Hydro Multi-E 3 x CRNE45-4-2 Three Phase 3 x 22kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Balancing high-volume simultaneous fixture draw across major sports venues is the primary role of the Grundfos Hydro Multi-E 3 x CRNE45-4-2 Three Phase 3 x 22kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE45-4-2 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93368432 provides the complete tested package in a single order line.
Engineered for zero-cavitation performance, overall pump discharge scales up to 3500 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 133.1 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
The robust mechanical package rests on a vibration-damped structural steel base. The set is fully pre-plumbed with two 200 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 132 A (3 x 44 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Engineered for winery operations, cellar door tasting rooms, and barrel wash areas. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
- Peak volumetric clean water delivery flow up to 3500 L/min
- Combined rated current draw of 132 A (3 x 44 A per pump)
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Pre-plumbed with two 200 mm manifold connections and isolating non-return valves
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Permissible liquid temperature range from 5°C to 60°C
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Integrated multi-pump array featuring three Grundfos CRNE45-4-2 multistage pumps
- Maximum vertical delivery head up to 133.1 metres
What's Included
- Grundfos Hydro Multi-E 3 CRNE45-4-2 U2 A-A-I-I-D Factory-Tested Booster Skid
- Three x Grundfos CRNE45-4-2 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 200 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 133 m |
| Power | 3 x 22 kW / 415v |
| Rated Current | 3 x 44 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid volume can the parallel centrifugal wet ends discharge when operating together?
When all pumps run simultaneously, the Grundfos Hydro Multi-E 3 CRNE45-4-2 U2 A-A-I-I-D (part number 93368432) maintains a total delivery throughput of up to 3500 L/min.
Which permanent magnet or inverter electric motors power this parallel pump assembly?
Mechanical propulsion across the Hydro Multi-E 3 CRNE45-4-2 utilises three 22 kW IE5 permanent-magnet MGE electric motors running on a 3 x 380-415 V mains feed.
How much total dynamic head does this multi-pump booster package generate under peak demand?
Vertical discharge capability on the Hydro-Multi-E-3-CRNE45-4-2 supplies up to 133.1 m dynamic elevation head while maintaining 16 bar pressure tolerance.
What plumbing manifold dimensions and isolating valves are factory assembled on this package?
Piping infrastructure across the Hydro Multi E 3 CRNE45 4 2 supplies factory-fitted DN 200 stainless steel suction and discharge headers with line check valves and isolating valves.
What manufacturer warranty protection backs the complete packaged booster skid?
Protection on the 3 CRNE45-4-2 (Hydro Multi-E) is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
