SKU: 93368430

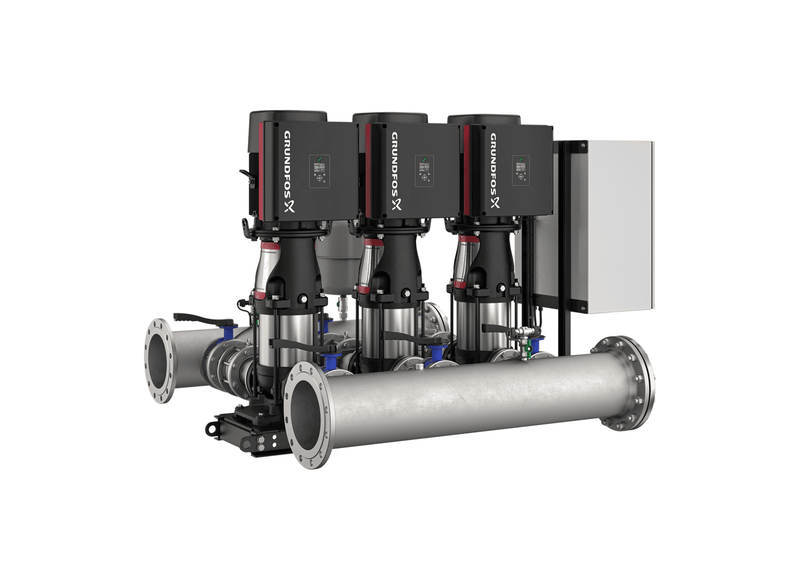

Grundfos Hydro Multi-E 3 x CRNE45-4 Three Phase 3 x 26kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Providing energy-efficient water pressure boosting across commercial ring mains is achieved by the Grundfos Hydro Multi-E 3 x CRNE45-4 Three Phase 3 x 26kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE45-4 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93368430 provides the complete tested package in a single order line.
Meeting peak morning and evening facility demand, maximum throughput reaches 3500 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 150.6 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
Featuring exceptional structural integrity, the unit mounts to a heavy-duty base frame. The set is fully pre-plumbed with two 200 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 152 A (3 x 50.7 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Perfect for boutique hotels, heritage guesthouses, and luxury hospitality venues. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Permissible liquid temperature range from 5°C to 60°C
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Integrated multi-pump array featuring three Grundfos CRNE45-4 multistage pumps
- Pre-plumbed with two 200 mm manifold connections and isolating non-return valves
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Combined rated current draw of 152 A (3 x 50.7 A per pump)
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Peak volumetric clean water delivery flow up to 3500 L/min
- Maximum vertical delivery head up to 150.6 metres
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
What's Included
- Grundfos Hydro Multi-E 3 CRNE45-4 U2 A-A-I-I-D Factory-Tested Booster Skid
- Three x Grundfos CRNE45-4 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 200 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 3500 L/Min |
| Max Head | 150 m |
| Power | 3 x 26 kW / 415v |
| Rated Current | 3 x 50.7 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is electrical propulsion and variable speed control provided across the parallel pump set?
Variable speed propulsion on the Grundfos Hydro Multi-E 3 CRNE45-4 U2 A-A-I-I-D (part number 93368430) utilizes three 26 kW IE5 permanent-magnet MGE electric motors connected to a 3 x 380-415 V power line.
Which maximum dynamic head does this parallel booster set achieve during full duty pumping?
Delivering high-elevation lift, the Hydro Multi-E 3 CRNE45-4 maintains up to 150.6 m dynamic head with an allowable working pressure of 16 bar.
Which manifold connection sizes and fluid isolation valves are factory fitted on this booster unit?
Factory manifold integration on the Hydro-Multi-E-3-CRNE45-4 incorporates DN 200 stainless steel suction and discharge pipework with individual check valves and isolating valves.
Which factory warranty terms protect the pumps and integrated drive electronics?
Australian technical protection for the Hydro Multi E 3 CRNE45 4 includes a genuine Grundfos two-year manufacturer warranty supported by factory-trained technicians and spare components.
How much water delivery can this variable frequency booster system discharge into the header pipework?
Under maximum water demand, the 3 CRNE45-4 (Hydro Multi-E) delivers a peak displacement rate of 3500 L/min across parallel centrifugal stages.
