SKU: 93368452

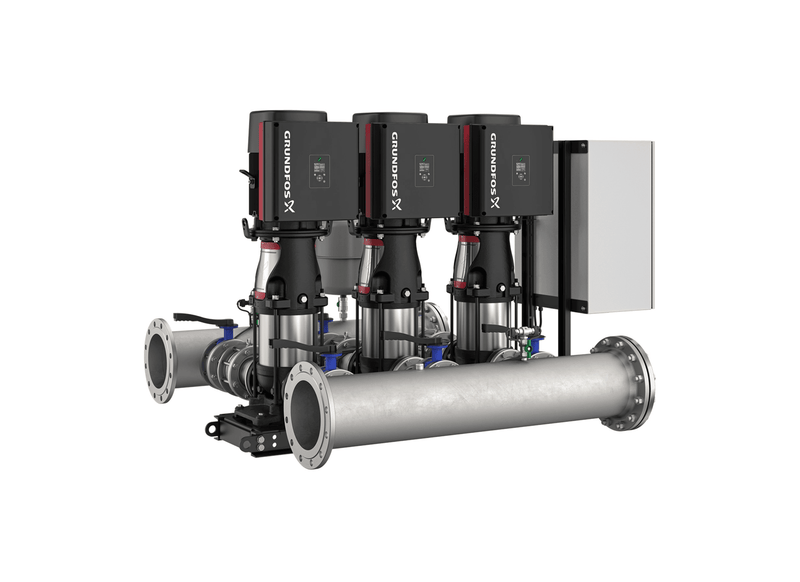

Grundfos Hydro Multi-E 3 x CRNE95-1 Three Phase 3 x 15kW Variable Speed 304ss Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Equalising water pressure across multi-wing hotel guest accommodations is managed seamlessly by the Grundfos Hydro Multi-E 3 x CRNE95-1 Three Phase 3 x 15kW Variable Speed 304ss Booster Pump Set with 24L Tank. Three Grundfos CRNE95-1 multistage pumps work in unison to eliminate pressure fluctuations during heavy usage. Part number 93368452 provides the complete tested package in a single order line.
Providing robust pressure boosting across shared reticulation, flow extends up to 7500 L/min. Across vertical multi-storey plumbing risers, the package comfortably develops up to 45.7 metres of head. Multi-Master autonomous inverter technology enables each pump to take lead control dynamically, providing complete hardware redundancy without requiring a separate central control cabinet.
The factory-engineered skid is supported by a rigid, anti-vibration baseplate. The set is fully pre-plumbed with two 250 mm manifold connections, dedicated isolation valves, and integrated non-return valves on each discharge line. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with combined rated current of 58.7 A (3 x 19.6 A per pump). A 24L diaphragm pressure tank absorbs initial draw-offs and line hammer, while IP55 enclosure protection and a 16 bar pressure rating ensure long-term mechanical reliability. Liquid-temperature suitability is 5°C to 60°C for all standard clean water booster duties.
Suited to public parkland amenities, botanical garden facilities, and council works depots. Integrating variable speed electronic control eliminates water hammer, extends mechanical life, and lowers lifecycle energy consumption compared to fixed-speed boosting systems.
FEATURES
- Integrated multi-pump array featuring three Grundfos CRNE95-1 multistage pumps
- Dual pressure transmitters providing continuous line monitoring and fault failover
- Pre-plumbed with two 250 mm manifold connections and isolating non-return valves
- Maximum operating pressure rating of 16 bar for robust commercial duty
- Industrial IP55 dust and moisture ingress protection on all pump drives
- Combined rated current draw of 58.7 A (3 x 19.6 A per pump)
- Permissible liquid temperature range from 5°C to 60°C
- Peak volumetric clean water delivery flow up to 7500 L/min
- Wetted components manufactured from high-grade Stainless Steel and 316-grade fittings
- Factory-fitted 24L diaphragm pressure tank to suppress water hammer
- Electrical supply rating: 3 x 380-415 V at 50 / 60 Hz
- Maximum vertical delivery head up to 45.7 metres
What's Included
- Grundfos Hydro Multi-E 3 CRNE95-1 U2 A-A-I-I-D Factory-Tested Booster Skid
- Three x Grundfos CRNE95-1 Multistage Pumps with Integrated Frequency Converters
- Integrated Multi-Master Autonomous Inverter Drive System
- 1 x Factory-Mounted 24L Diaphragm Pressure Tank
- Suction and Discharge Manifolds (two 250 mm manifold connections)
- Individual Pump Isolation Valves and Spring-Loaded Non-Return Valves
- Dual Factory-Calibrated Pressure Transmitters
- Heavy-Duty Structural Steel Mounting Baseplate
- Comprehensive Installation and Operating Documentation
SPECIFICATIONS
| Max Flow | 7500 L/Min |
| Max Head | 45 m |
| Power | 3 x 15 kW / 415v |
| Rated Current | 3 x 19.6 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C to 60°C |
| Inlet Size | 250 mm |
| Outlet Size | 250 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What warranty coverage and Australian support backs this packaged booster system?
Manufacturer coverage on the Grundfos Hydro Multi-E 3 CRNE95-1 U2 A-A-I-I-D (part number 93368452) includes a genuine Grundfos two-year factory warranty backed by nationwide Australian technical support and spare parts.
Which fluid delivery volume does this parallel booster assembly displace during high demand hours?
Supplying high-demand pipework networks, the Hydro Multi-E 3 CRNE95-1 discharges a maximum fluid flow rate of 7500 L/min.
What motor propulsion and electronic speed control system drives this multi-pump booster skid?
Motor propulsion powering the Hydro-Multi-E-3-CRNE95-1 features three 15 kW IE5 permanent-magnet MGE electric units configured for a 3 x 380-415 V electrical line.
Under peak network pressure requirements, what dynamic head does this booster unit maintain?
Elevation lift capacity on the Hydro Multi E 3 CRNE95 1 develops up to 45.7 m total dynamic head backed by an 10 bar rated pressure threshold.
How are the common suction and discharge headers arranged across the parallel pump set?
Plumbed for rapid site installation, the 3 CRNE95-1 (Hydro Multi-E) includes DN 250 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
