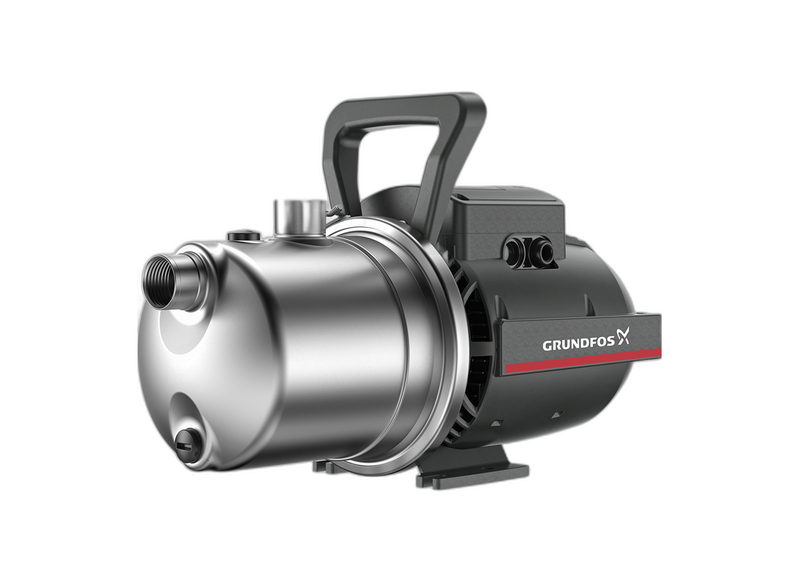

Grundfos JP 3-42 Stainless Steel Self-Priming Jet Pump Domestic Supply Pump Single Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 3-42 is a self-priming jet pump designed for domestic water supply, garden irrigation, and water transfer applications. With excellent suction capability, it is ideal for drawing water from wells, ground tanks, and below-ground sources where the pump is installed above the water level.
The pump features a stainless steel housing (AISI 304) combined with a composite impeller (PPO-20GF), providing strong corrosion resistance and long-term durability. The integrated ejector with guide vanes ensures reliable self-priming performance and stable operation even when handling air-liquid mixtures during priming.
According to the performance data, the pump operates at a rated flow of 3 m³/h with a corresponding head of 36.5 metres. The unit achieves a maximum head of 39 metres at shut-off conditions. Based on the performance curve, the pump delivers practical domestic flow across standard pressure ranges and supports a suction lift of up to 8 metres.
The unit is powered by a 0.447 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 3.1 Amps. It features built-in thermal protection to prevent overheating and is equipped with sealed, grease-for-life ball bearings for quiet and maintenance-free operation.
FEATURES
- Self-Priming Operation with built-in ejector for reliable suction performance
- Capable of handling air-liquid mixtures during priming cycle
- Integrated Thermal Protection to prevent motor overheating
- Air-Cooled Motor Design for efficient and stable operation
- Sealed Bearings ensure low noise and maintenance-free performance
- Compact Portable Design with integrated lifting handle
- Corrosion-Resistant Construction using stainless steel and composite materials
- Stable Operation even under variable suction conditions
- Suitable for installation above water source level
- Designed for continuous and smooth long-term operation
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 39 m |
| Power | 0.45 kW / 240v |
| Rated Current | 3.1 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Achieving strong system delivery, the Grundfos JP 3-42 develops a maximum flow rate of 50 L/Min and a maximum dynamic head of 39 m across its operating curve.
Does this pump run on standard household power or three-phase power?
Running on 240v power supplies, the JP 3-42 is driven by a 0.45 kW motor rated at 3.1 Amps.
What materials make this pump durable against corrosion and wear?
High-grade Stainless Steel components in the JP-3-42 protect internal passages against corrosive fluid contact.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the JP 3 42 include self-priming suction from shallow ground wells, rainwater barrels, and garden wash points, delivering efficient water management across residential and rural systems.
What warranty coverage applies to this pump for long-term peace of mind?
You receive a certified 2 Years manufacturer warranty with the JP/3/42, giving you long-term protection and support.
