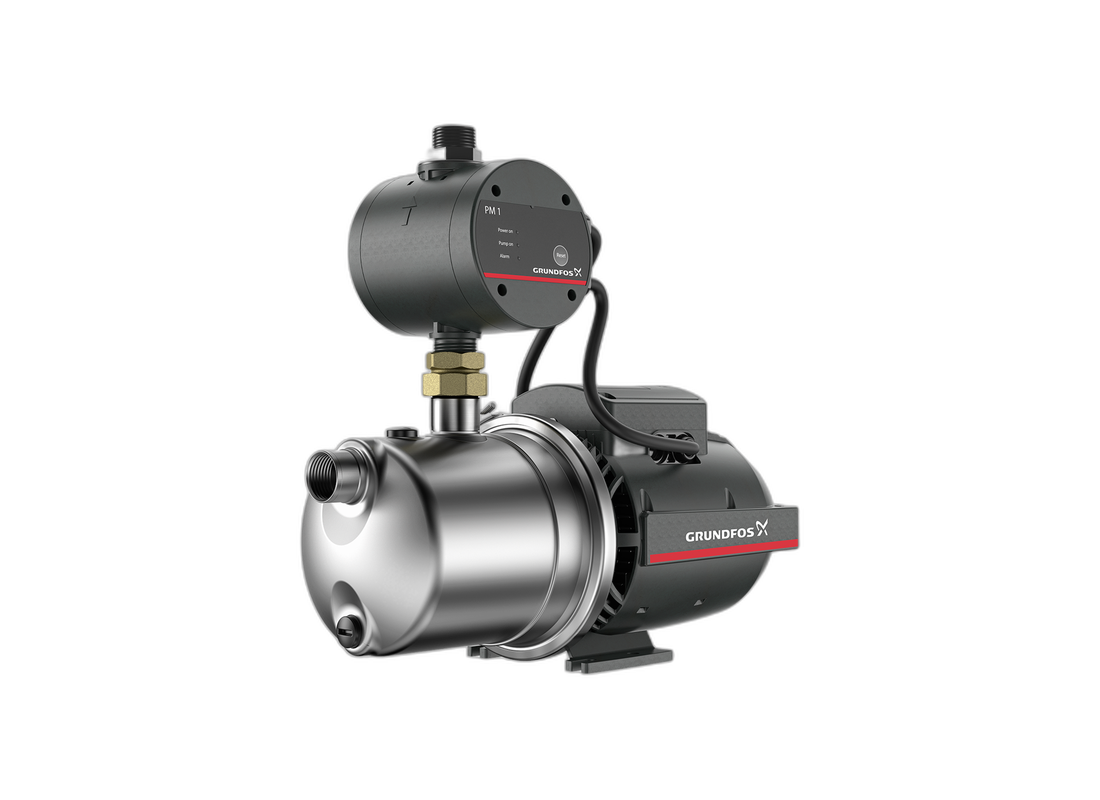

Grundfos JP 3-42 Stainless Steel Self-Priming Jet Pump for Household Transfer with PM1 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 3-42 PM1 is an automatic pressure jet pump system designed for household water transfer, garden irrigation, and domestic supply applications. The system combines a Grundfos JP self-priming pump with a PM1 pressure manager, enabling automatic start and stop operation based on water demand.
The pump is constructed with a stainless steel housing (AISI 304) and a composite impeller (PPO-20GF), ensuring corrosion resistance and long service life. The integrated ejector design allows efficient self-priming and stable performance when handling air-liquid mixtures during start-up.
According to the technical data, the pump operates at a rated flow of 3 m³/h with a corresponding head of 36.5 metres. It achieves a maximum head of 42 metres at shut-off conditions. Based on the performance curve shown on page 3, the unit delivers usable domestic flow across typical pressure ranges and supports a suction lift of up to 8 metres.
The system is powered by a 0.45 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 3.1 Amps. The PM1 controller starts the pump at 1.5 bar and ensures continuous operation while water is being consumed. It includes dry-run protection, anti-cycling functionality, and an integrated non-return valve for reliable system performance.
FEATURES- Automatic Operation via PM1 controller with demand-based start and stop
- Start Pressure of 1.5 bar ensures consistent system activation
- Dry-Run Protection prevents pump damage during water shortage
- Anti-Cycling Function avoids frequent start/stop in leakage conditions
- Integrated Non-Return Valve prevents backflow in the system
- Self-Priming Capability with suction lift up to 8 m
- Handles air-liquid mixtures during priming for reliable operation
- Thermal Protection safeguards motor from overheating
- Low Noise Operation with sealed grease-for-life bearings
- Compact Booster Design for easy installation and operation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Rated for dependable performance, the Grundfos JP 3-42 provides up to 50 L/Min in flow and up to 42 m in head, depending on operating conditions.
How much electricity and current does this pump draw under load?
Electrical power for the JP 3-42 requires a 240v connection, driving an efficient 0.45 kW motor that draws 3.1 Amps.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the JP-3-42 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What primary water management tasks is this pump best suited for?
Water management applications designate the JP 3 42 for PM for self-priming suction from shallow ground wells, rainwater barrels, and garden wash points, supporting consistent property operation.
What official warranty duration comes with this pump from purchase?
Backed by Grundfos engineering, the JP/3/42 carries an official 2 Years warranty with genuine manufacturer support.
