SKU: 99458783

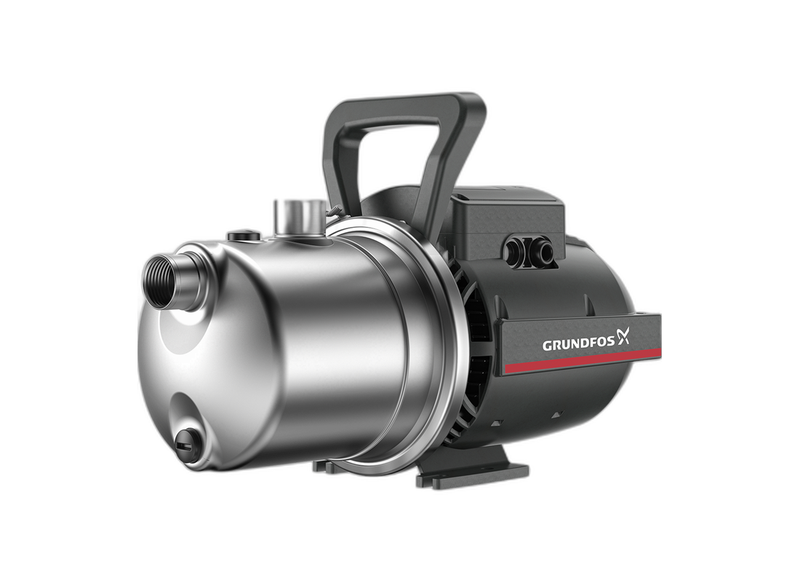

Grundfos JP 4-47 Stainless Steel Self-Priming Jet Pump for Domestic Supply Single Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 4-47 is a self-priming jet pump designed for domestic water supply, garden irrigation, and water transfer applications. With strong suction capability, it is ideal for drawing water from wells, ground tanks, and below-ground sources where the pump is installed above the water level.
The pump is constructed with a stainless steel housing (AISI 304) and a composite impeller (PPO-20GF), providing excellent corrosion resistance and durability. The integrated ejector with guide vanes ensures efficient self-priming performance and stable operation, even when handling air-liquid mixtures during the priming phase.
According to the performance data, the pump operates at a rated flow of 4 m³/h with a corresponding head of 41 metres. It achieves a maximum head of 44.5 metres at shut-off conditions. Based on the performance curve, the pump delivers practical flow across typical domestic pressure ranges and supports a suction lift of up to 8 metres.
The unit is powered by a 0.56 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 3.8 Amps. It includes built-in thermal protection to prevent overheating and features sealed, grease-for-life ball bearings for quiet and maintenance-free operation.
FEATURES- Self-Priming Design with built-in ejector for efficient suction performance
- Capable of handling air-liquid mixtures during priming cycle
- Integrated Thermal Protection to prevent motor overheating
- Air-Cooled Motor Design for stable and efficient operation
- Sealed Bearings ensure low noise and maintenance-free performance
- Compact Portable Design with integrated lifting handle
- Corrosion-Resistant Construction using stainless steel and composite materials
- Stable Operation even under variable suction conditions
- Designed for installation above water source level
- Suitable for continuous long-term operation
SPECIFICATIONS
| Max Flow | 75 L/Min |
| Max Head | 45 m |
| Power | 0.56 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
Depending on operating conditions, the Grundfos JP 4-47 delivers a maximum flow rate of 75 L/Min and a maximum head of 45 m.
What electrical connection and motor power run this pump?
Connecting across 240v lines, the JP 4-47 draws approximately 3.8 Amps with an efficient 0.56 kW motor.
What materials are used to construct the pump casing and impeller?
Durable Stainless Steel construction gives the JP-4-47 exceptional structural strength and long-term protection against corrosive fluids.
What property water management tasks match this pump?
System installations deploy the JP 4 47 for Rated operational capabilities allow to execute self-priming suction from shallow ground wells, rainwater barrels, and garden wash points, maintaining steady circulation and reliable line pressure.
How many years of warranty coverage come with this Grundfos pump?
Purchase of the JP/4/47 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
