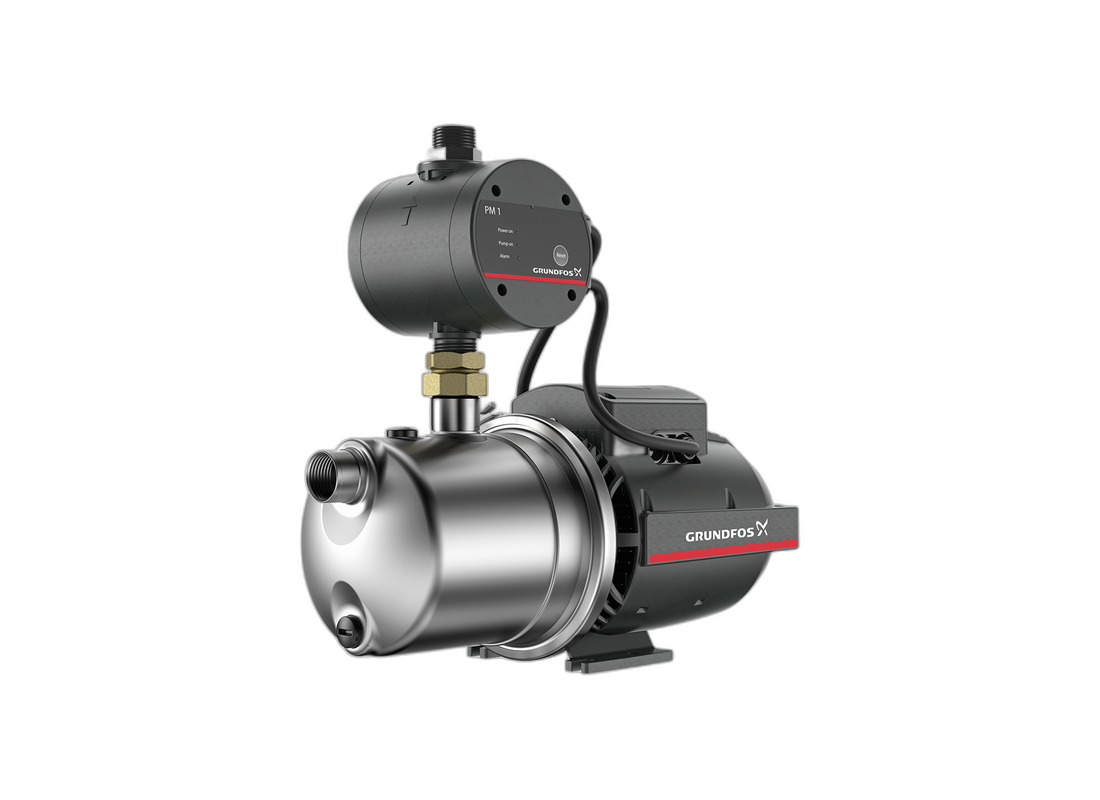

Grundfos JP 4-47 Stainless Steel Self-Priming Jet Pump for Garden Irrigation Single Impeller with PM1 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 4-47 PM1 is an automatic pressure jet pump system designed for garden irrigation, household water supply, and water transfer applications. The system combines a Grundfos JP self-priming pump with a PM1 pressure manager, providing automatic start and stop operation based on water demand.
The pump is constructed with a stainless steel housing (AISI 304) and a composite impeller (PPO-20GF), ensuring corrosion resistance and long service life. The integrated ejector design delivers strong self-priming capability and allows the pump to handle air-liquid mixtures during start-up for reliable operation.
According to the technical data, the pump operates at a rated flow of 4 m³/h with a corresponding head of 41 metres. Based on the performance curve, the unit achieves a maximum head of approximately 47 metres at shut-off and delivers practical usable flow across domestic pressure ranges. The system supports a suction lift of up to 8 metres.
The unit is powered by a 0.56 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 3.8 Amps. The PM1 controller starts the pump at 1.5 bar and keeps it running as long as there is flow. It includes dry-run protection, anti-cycling functionality, and an integrated non-return valve for reliable and safe operation.
FEATURES- Automatic Operation with PM1 controller for demand-based start and stop
- Start Pressure of 1.5 bar ensures consistent activation
- Dry-Run Protection prevents pump damage during water shortage
- Anti-Cycling Function reduces unnecessary start/stop in leakage conditions
- Integrated Non-Return Valve prevents backflow
- Self-Priming Capability with suction lift up to 8 m
- Handles air-liquid mixtures during priming for stable performance
- Thermal Protection safeguards motor from overheating
- Air-Cooled Motor with sealed bearings for quiet operation
- Compact Booster Design for easy installation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Output across system pipework enables the Grundfos JP 4-47 to deliver up to 70 L/Min in flow and a maximum head of 47 m, depending on your pipe layout.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the JP 4-47 delivers 0.56 kW on a 240v line drawing 3.8 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Built with a resilient Stainless Steel body, the JP-4-47 maintains material durability against fluid abrasion and wear.
Where is this pump typically deployed across residential and rural systems?
Routine operational tasks matching the JP 4 47 encompass PM concentrate on self-priming suction from shallow ground wells, rainwater barrels, and garden wash points across connected networks.
What warranty protection and factory support cover this pump?
Grundfos backs the JP/4/47 with an official 2 Years warranty, offering reliable coverage and factory technical support.
