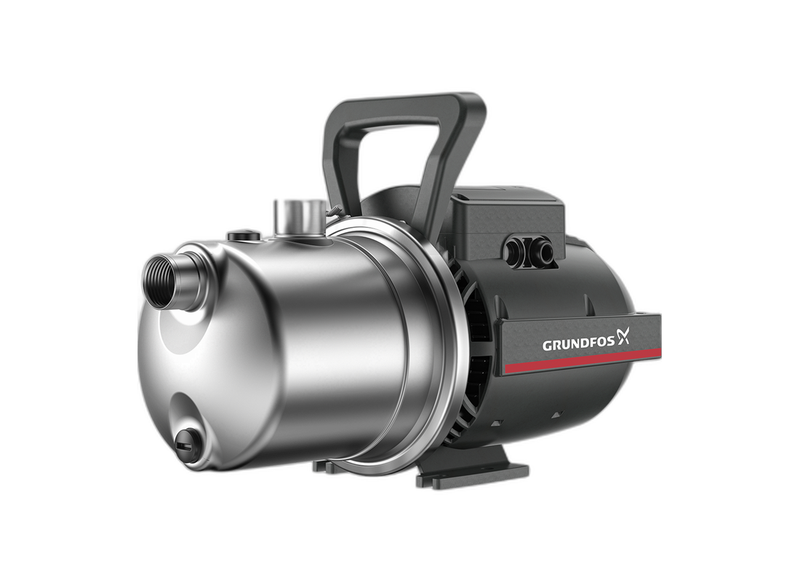

Grundfos JP 5-48 Stainless Steel Self-Priming Jet Pump for Household Water Transfer Single Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 5-48 is a self-priming jet pump designed for domestic water supply, garden irrigation, and water transfer applications. With strong suction capability, it is ideal for drawing water from wells, ground tanks, and below-ground sources where the pump is installed above the water level.
The pump is constructed with a stainless steel housing (AISI 304) and a composite impeller (PPO-20GF), ensuring excellent corrosion resistance and durability. The integrated ejector with guide vanes enhances self-priming performance and allows the pump to handle air-liquid mixtures during priming, ensuring reliable start-up.
According to the performance data, the pump operates at a rated flow of 5 m³/h with a corresponding head of 45.6 metres. It achieves a maximum head of 48 metres at shut-off conditions. Based on the performance curve shown on page 3, the pump delivers practical usable flow across domestic pressure ranges and supports a suction lift of up to 8 metres.
The unit is powered by a 1.014 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 6.6 Amps. It features built-in thermal protection to prevent overheating and includes sealed, grease-for-life ball bearings for quiet and maintenance-free operation.
FEATURES
- Self-Priming Operation with built-in ejector for efficient suction performance
- Handles air-liquid mixtures during priming for reliable start-up
- Integrated Thermal Protection to protect the motor from overheating
- Air-Cooled Motor Design for stable and efficient operation
- Sealed Bearings for low noise and maintenance-free performance
- Compact Portable Design with integrated lifting handle
- Corrosion-Resistant Stainless Steel Construction for durability
- Stable Operation under varying suction conditions
- Designed for installation above water source level
- Suitable for continuous long-term operation
SPECIFICATIONS
| Max Flow | 85 L/Min |
| Max Head | 48 m |
| Power | 1.01 kW / 240v |
| Rated Current | 6.6 Amps |
| Suitable For | Tank Filling |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
You get up to 85 L/Min in flow and a maximum head of 48 m from the Grundfos JP 5-48, depending on operating conditions.
What motor power rating and running current power this pump?
Powered by a dedicated 1.01 kW motor, the JP 5-48 connects to 240v mains power with a rated current draw of 6.6 Amps.
What corrosion-resistant materials are used in the wetted components?
Manufactured with quality materials, the JP-5-48 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
What domestic plumbing and water boosting roles does this pump perform?
Suited for diverse installations, the JP 5 48 performs Physical configuration in matches self-priming suction from shallow ground wells, rainwater barrels, and garden wash points with dependable fluid propulsion.
What factory warranty backing is provided with this pumping equipment?
Factory coverage on the JP/5/48 provides an authentic 2 Years warranty for dependable long-term reliability.
