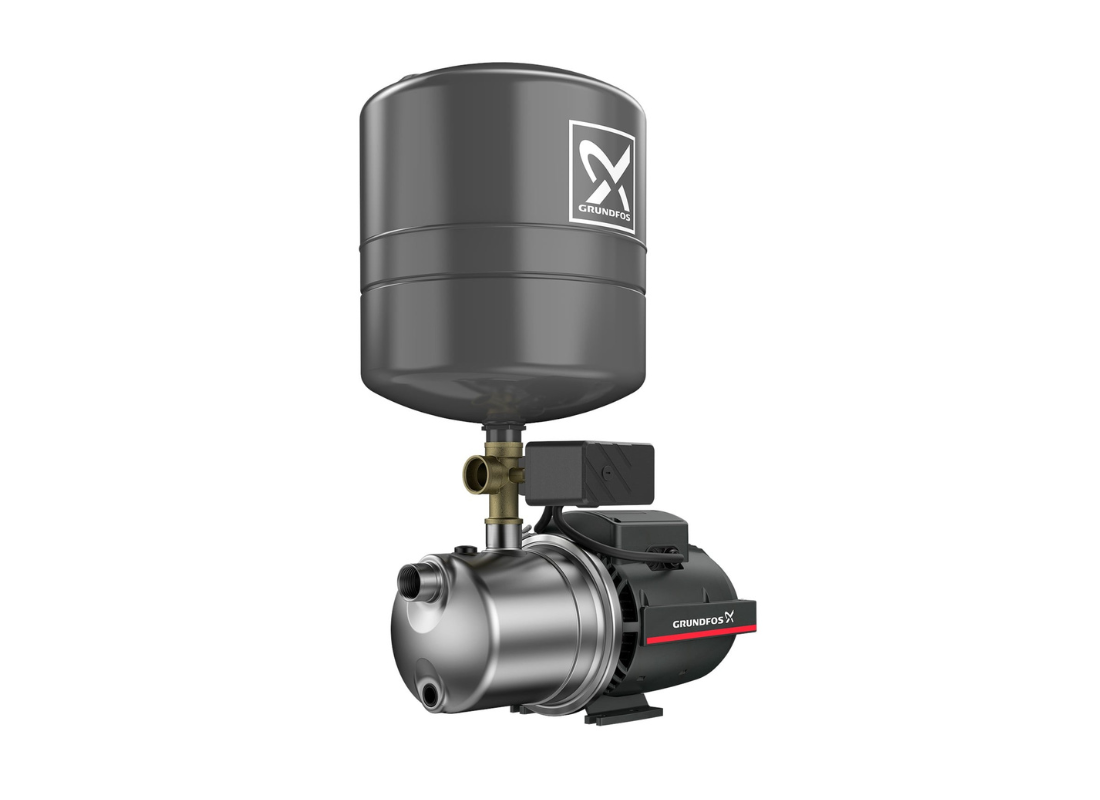

Grundfos JP 5-48PT Self Priming Jet Pressure Pump with 20L Pressure Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 5-48PT is a complete domestic booster system combining a self-priming jet pump with a 20 litre vertical diaphragm pressure tank. Designed for reliable garden and household water supply, this unit delivers strong pressure performance while reducing pump cycling for improved longevity.
Featuring a corrosion-resistant stainless steel pump housing (AISI 304) and composite impeller, the JP 5-48PT delivers up to 48 metres of head and flow rates up to 83 L/Min (5 m³/h). The integrated 20L pressure tank helps minimise water hammer and reduces frequent start/stop cycles by supplying stored water during low demand.
With a suction lift capability of up to 8 metres, the JP 5-48PT is ideal for rainwater tanks, shallow wells and domestic pressure boosting applications. The system operates automatically via a pressure switch with a factory cut-in pressure of 2.2 bar and includes built-in thermal motor protection.
FEATURES
- Self-priming jet pressure pump
- Integrated 20L vertical diaphragm pressure tank
- Maximum head: 48 metres
- Maximum flow: 83 L/Min
- Stainless steel pump housing (AISI 304)
- Composite impeller
- Suction lift up to 8 metres
- 2.2 bar cut-in pressure
- Built-in thermal protection
- 240V single phase operation
Ideal for domestic water supply, rainwater tank boosting and garden irrigation systems.
SPECIFICATIONS
| Max Flow | 83 L/Min |
| Max Head | 48 m |
| Power | 1 kW / 240v |
| Rated Current | 6.6 Amps |
| Suitable For | Domestic Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Rated for dependable performance, the Grundfos JP 5-48PT provides up to 83 L/Min in flow and up to 48 m in head, depending on operating conditions.
What kind of power supply does this pump require to run?
Electrical power for the JP 5-48PT requires a 240v connection, driving an efficient 1 kW motor that draws 6.6 Amps.
What materials make this pump durable against corrosion and wear?
Structural defense on the JP-5-48PT is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the JP 5 48PT for Running in residential pipework networks, JP 5 48 PT delivers self-priming suction from shallow ground wells, rainwater barrels, and garden wash points, supporting consistent property operation.
What warranty coverage applies to this pump for long-term peace of mind?
Backed by Grundfos engineering, the JP/5/48PT carries an official 2 Years warranty with genuine manufacturer support.
