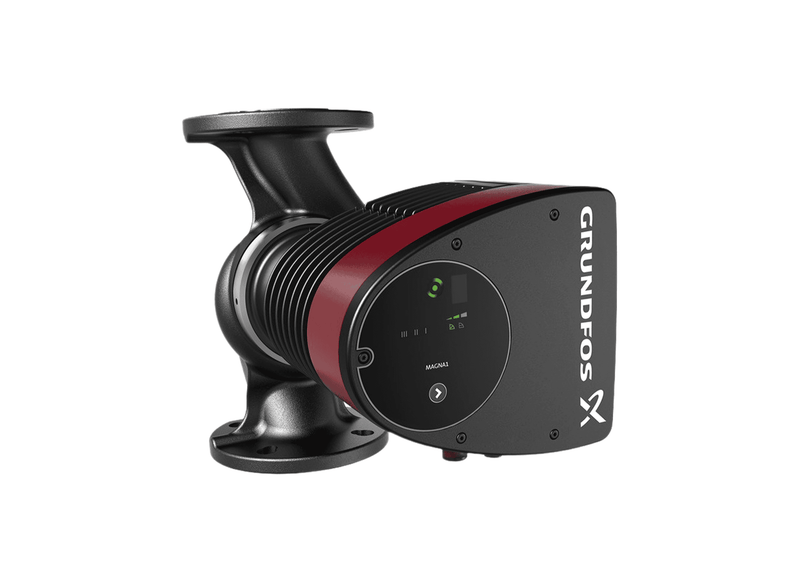

Delivering high flow volume alongside 6.631 m of head, the Grundfos MAGNA1 32-120 F circulator pump is specified for large commercial plant rooms, district heating transfer stations, and central chiller distribution loops. Its integrated frequency converter automatically modulates motor speed to match variable building loads.
A heavy cast iron EN-GJL-200 pump casing with a 220 mm port-to-port dimension encloses a composite impeller and high-capacity canned rotor motor. Sized for working pressures to 10 bar, the unit accommodates circulating fluid temperatures from -10°C to 110°C, weighing 15.2 kg.
The single-phase 230-240 V ECM motor has a maximum power input (P1) of 15 W to 329 W with electrical input power (P1) operating from 15 W up to a peak of 329 W at 1.48 A maximum current. Hydraulic output reaches 11.26 m³/h (188 L/Min) against a maximum head of 6.631 m through DN 32 DIN flanged connections.
Nine control modes provide proportional pressure, constant pressure, and fixed speed operation with single-button adjustment. The unit delivers an Energy Efficiency Index (EEI) of 0.18, features Class F insulation with an IPX4D enclosure, and incorporates digital run and fault relay terminals.
FEATURES
- Provides 188 L/Min maximum flow and 6.631 m of head for high-demand commercial loops
- High-efficiency ECM motor technology achieves a low EEI rating of 0.18
- Power consumption modulates between 15 W and 329 W based on circuit resistance
- Cast iron EN-GJL-200 housing engineered for 10 bar maximum operating pressure
- Composite impeller construction provides corrosion resistance in hydronic systems
- Digital start/stop terminals and fault alarm relay serve building automation
- Standard 220 mm port-to-port dimension with DN 32 PN 6/10 flange holes
