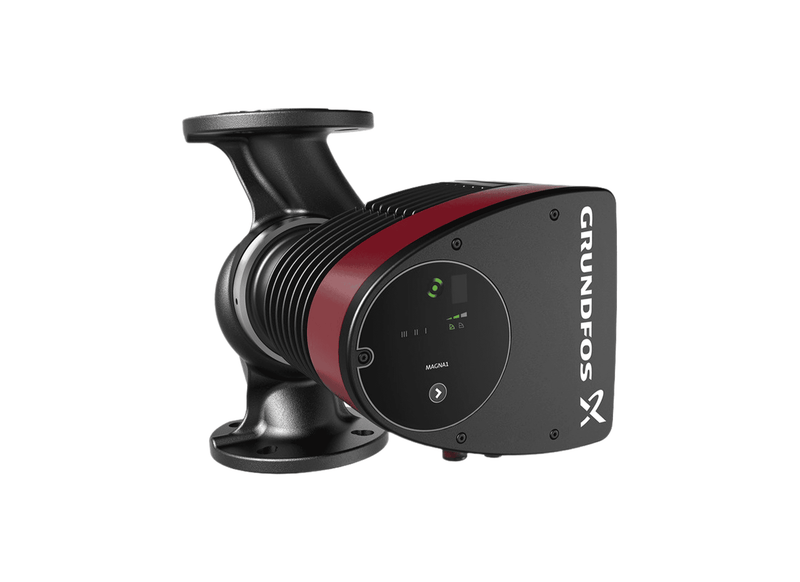

Capable of delivering 6.305 m of head at substantial flow rates, the Grundfos MAGNA1 40-100 F circulator pump is specified for air handling unit coils, multi-floor heating risers, and commercial heat recovery networks. It automatically modulates speed to deliver balanced differential pressure across the system.
The casing is cast from EN-GJL-200 iron with a 220 mm port-to-port dimension, holding a composite impeller, stainless rotor can, and air-cooled electronic module. Rated for 10 bar working pressure and liquid temperatures from -10°C to 110°C, the complete pump assembly weighs 16.3 kg.
The single-phase 230-240 V ECM motor has a maximum power input (P1) of 17 W to 370 W and operates from 17 W to a maximum electrical power input (P1) of 370 W at 1.65 A. Hydraulic performance achieves a flow rate of 12.77 m³/h (213 L/Min) with a maximum head of 10 m through DN 40 DIN flanged pipe ports.
Control options encompass three proportional pressure curves, three constant pressure curves, and three constant speeds. The unit holds an EEI rating of 0.19, IPX4D ingress protection, Class F insulation, and integrated fault signal relay contacts.
FEATURES
- 10 m maximum head overcomes elevated resistance across commercial heating coils
- High flow volume of 213 L/Min serves central plant distribution headers
- Permanent magnet motor design achieves an Energy Efficiency Index (EEI) of 0.19
- Operating power self-adjusts between 18 W and 370 W according to circuit demand
- Cast iron EN-GJL-200 housing rated for 10 bar maximum working pressure
- Composite impeller resists chemical corrosion in water-glycol heating mixtures
- Digital start/stop terminals and fault relay output facilitate BMS interlocks
