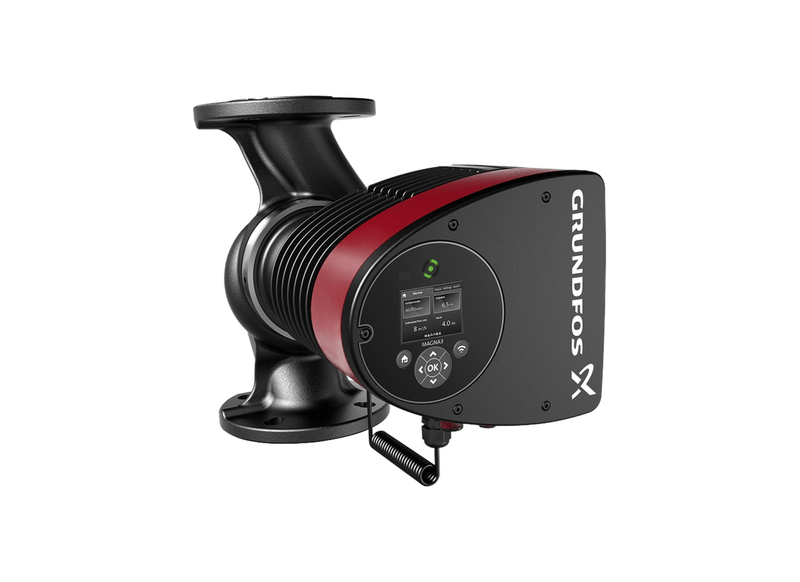

Grundfos MAGNA3 40-120-F Cast Iron Single Phase Circulator Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For HVAC water circulation and climate control circuits, the Grundfos MAGNA3 40 120 F canned-rotor unit utilizes a glandless pump design with DIN DN 40 connection ports. The integrated control box manages operational settings without external shaft seals. Fluid circulation serves commercial heating loops, chilled water networks, and ground-source heat pump exchangers.
Hydraulic performance delivers a maximum head of 12.0 meters and a maximum flow rate of 235.7 L/Min, matching 14.14 m3/h. Powered by a permanent-magnet motor, the unit operates on a 240 V single-phase supply at 50/60 Hz, with power input P1 of 427 W and current draw of 1.96 Amps. Maximum system operating pressure is rated at 10 bar.
Housing construction features a cast iron casing grade EN 1561 EN-GJL-200 enclosing a composite impeller. Internal components incorporate a carbon-fibre rotor can, stainless steel rotor cladding, and bearing plate, running on ceramic bearings. Net weight is 16 kg with a 250 mm port length, handling liquid temperatures -10 to 110 °C.
Control features include AUTOADAPT and FLOWADAPT operating modes with integrated differential pressure and temperature sensors. Wireless communication connects via Bluetooth to Grundfos GO Remote software for diagnostics. External interfaces provide two digital inputs, two signal relays, and a 0-10V analog input.
Features
- Energy Efficiency Index (EEI): 0.18 meeting European Union energy performance standards.
- Maximum rotational speed rating: 4080 rpm for continuous hydraulic balancing across system curves.
- Physical shipping package volume and gross weight: 0.039 m3, 17.5 kg for logistics planning.
- Standard regulatory compliance approvals: CE,VDE,EAC,MOROCCO,UKC for international building code conformity.
- Enclosure protection rating: IPX4D moisture resistance rating for commercial equipment rooms.
- Intelligent control regulation: AUTOADAPT, FLOWADAPT, and active FLOWLIMIT operational modes.
- Wireless connectivity: Integrated Bluetooth interface for Grundfos GO Remote application access.
- Casing thermal insulation: Includes clip-on shell insulation covers for system heat retention.
SPECIFICATIONS
| Max Flow | 235.7 L/Min |
| Max Head | 12 m |
| Power | 0.43 kW / 240v |
| Rated Current | 1.96 Amps |
| Suitable For | High Flow Chilled Water Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which casing and impeller materials provide long service life in this pump?
High-grade Cast Iron components in the Grundfos MAGNA3 40-120-F protect internal passages against corrosive fluid contact.
What electrical supply parameters are needed for this pump motor?
It operates on 240 V power, with the MAGNA3 40-120-F utilizing a durable 0.43 kW motor rated at 1.96 Amps.
Can this pump operate in warm or hot water without overheating?
Thermal ratings for the MAGNA3-40-120-F accommodate working liquid temperatures up to 10°C under standard operating pressure.
How much pumping height does this pump provide?
Pumping performance for the MAGNA3 40 120 F provides up to 12 m of vertical dynamic lift, depending on system friction and line sizing.
What peak fluid displacement volume can this pump deliver?
Moving liquid through the system, the MAGNA3/40/120/F maintains an operational throughput of up to 235.7 L/Min through a DN 40 connection during peak demand.
