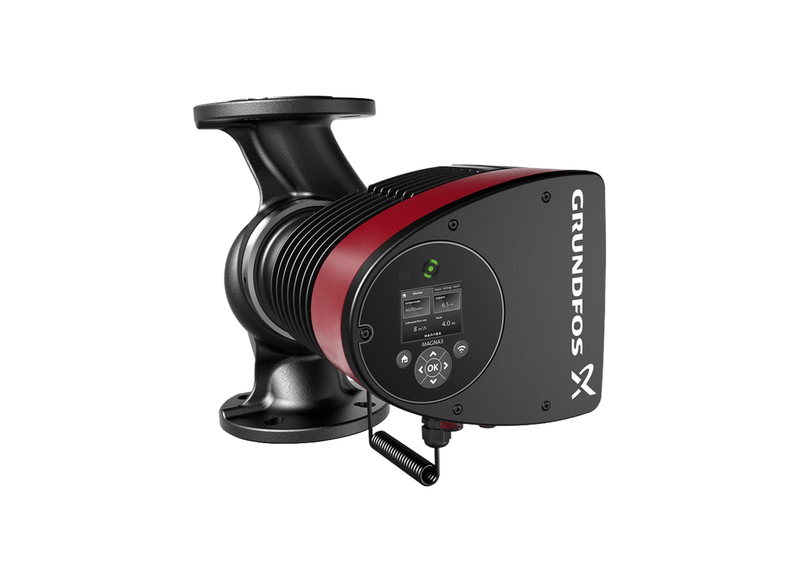

Grundfos MAGNA3 65-120-F Cast Iron Single Phase Circulator Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered for fluid transfer in commercial heating circuits and cooling installations, the Grundfos MAGNA3 65 120 F canned-rotor circulator pump operates without mechanical shaft seals. Featuring an integrated control panel, it uses a glandless canned-rotor structure. Applications include mixing loops, heating surfaces, air conditioning, and ground-source loops, via DIN DN 65 ports.
Hydraulic performance delivers a maximum head of 12.0 meters and a maximum flow rate of 429.3 L/Min, matching 25.76 m3/h. Powered by a permanent-magnet motor, the unit operates on a 240 V single-phase supply at 50/60 Hz, with power input P1 of 763 W and current draw of 3.45 Amps. Maximum system operating pressure is rated at 10 bar.
Housing construction features a cast iron casing grade EN 1561 EN-GJL-200 enclosing a composite impeller. Internal components incorporate a carbon-fibre rotor can, stainless steel rotor cladding, and bearing plate, running on ceramic bearings. Net weight is 21.5 kg with a 340 mm port length, handling liquid temperatures -10 to 110 °C.
Control features include AUTOADAPT and FLOWADAPT operating modes with integrated differential pressure and temperature sensors. Wireless communication connects via Bluetooth to Grundfos GO Remote software for diagnostics. External interfaces provide two digital inputs, two signal relays, and a 0-10V analog input.
Features
- Energy Efficiency Index (EEI): 0.17 meeting European Union energy performance standards.
- Maximum rotational speed rating: 3960 rpm for continuous hydraulic balancing across system curves.
- Physical shipping package volume and gross weight: 0.057 m3, 23.7 kg for logistics planning.
- Standard regulatory compliance approvals: CE,VDE,EAC,MOROCCO,UKC for international building code conformity.
- Enclosure protection rating: IPX4D moisture resistance rating for commercial equipment rooms.
- Intelligent control regulation: AUTOADAPT, FLOWADAPT, and active FLOWLIMIT operational modes.
- Wireless connectivity: Integrated Bluetooth interface for Grundfos GO Remote application access.
- Casing thermal insulation: Includes clip-on shell insulation covers for system heat retention.
SPECIFICATIONS
| Max Flow | 429.3 L/Min |
| Max Head | 12 m |
| Power | 0.76 kW / 240v |
| Rated Current | 3.45 Amps |
| Suitable For | Geothermal Loop Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +110°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid temperature limits and immersion depths are rated for this unit?
Fluid media ranging up to 10°C can be circulated through the Grundfos MAGNA3 65-120-F without thermal breakdown.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the MAGNA3 65-120-F develops a maximum pumping head of approximately 12 m.
How much water volume can this unit move through the pipework?
At full operating capacity, the MAGNA3-65-120-F moves up to 429.3 L/Min through a DN 65 connection to keep liquid levels controlled during peak inflow.
How is the pump casing constructed to resist mechanical and fluid wear?
Structural defense on the MAGNA3 65 120 F is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
Does this pump run on standard household power or three-phase power?
Running on 240 V power supplies, the MAGNA3/65/120/F is driven by a 0.76 kW motor rated at 3.45 Amps.
