SKU: 97924299

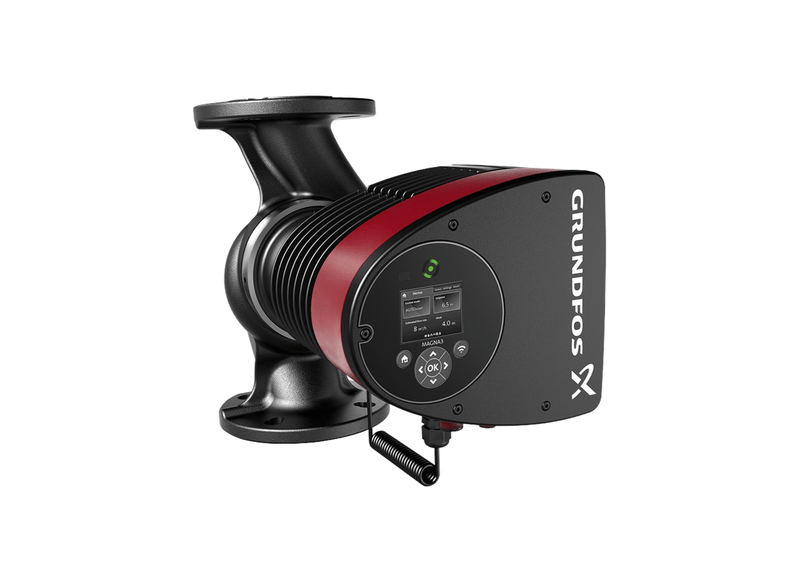

Grundfos MAGNA3 65-150-F Cast Iron Single Phase Circulator Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Featuring a cast iron housing grade EN 1561 EN-GJL-200, the Grundfos MAGNA3 65 150 F canned-rotor circulator pump provides glandless circulation for hydronic loops and HVAC networks. Internal electronics eliminate shaft seals through a canned-rotor configuration. Primary duties encompass mixing circuits, surface heating, air conditioning, and chiller loops using DIN DN 65 connections.
Hydraulic performance delivers a maximum head of 15.0 meters and a maximum flow rate of 534.3 L/Min, matching 32.06 m3/h. Powered by a permanent-magnet motor, the unit operates on a 240 V single-phase supply at 50/60 Hz, with power input P1 of 1377 W and current draw of 6.18 Amps. Maximum system operating pressure is rated at 10 bar.
Housing construction features a cast iron casing grade EN 1561 EN-GJL-200 enclosing a composite impeller. Internal components incorporate a carbon-fibre rotor can, stainless steel rotor cladding, and bearing plate, running on ceramic bearings. Net weight is 22.7 kg with a 340 mm port length, handling liquid temperatures -10 to 110 °C.
Control features include AUTOADAPT and FLOWADAPT operating modes with integrated differential pressure and temperature sensors. Wireless communication connects via Bluetooth to Grundfos GO Remote software for diagnostics. External interfaces provide two digital inputs, two signal relays, and a 0-10V analog input.
Features
- Energy Efficiency Index (EEI): 0.17 meeting European Union energy performance standards.
- Maximum rotational speed rating: 4440 rpm for continuous hydraulic balancing across system curves.
- Physical shipping package volume and gross weight: 0.057 m3, 26.1 kg for logistics planning.
- Standard regulatory compliance approvals: CE,VDE,EAC,MOROCCO,UKC for international building code conformity.
- Enclosure protection rating: IPX4D moisture resistance rating for commercial equipment rooms.
- Intelligent control regulation: AUTOADAPT, FLOWADAPT, and active FLOWLIMIT operational modes.
- Wireless connectivity: Integrated Bluetooth interface for Grundfos GO Remote application access.
- Casing thermal insulation: Includes clip-on shell insulation covers for system heat retention.
SPECIFICATIONS
| Max Flow | 534.3 L/Min |
| Max Head | 15 m |
| Power | 1.38 kW / 240v |
| Rated Current | 6.18 Amps |
| Suitable For | District Heating Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +110°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
To overcome vertical elevation resistance, the Grundfos MAGNA3 65-150-F develops a maximum pumping head of approximately 15 m.
How much fluid throughput does this pump move under full load?
At full operating capacity, the MAGNA3 65-150-F moves up to 534.3 L/Min through a DN 65 connection to keep liquid levels controlled during peak inflow.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the MAGNA3-65-150-F is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
What electrical voltage and motor kilowatt output drive this unit?
Running on 240 V power supplies, the MAGNA3 65 150 F is driven by a 1.38 kW motor rated at 6.18 Amps.
What water temperature range and installation depth are supported?
Routine operational thermal ceilings enable the MAGNA3/65/150/F to process liquids up to 10°C.
