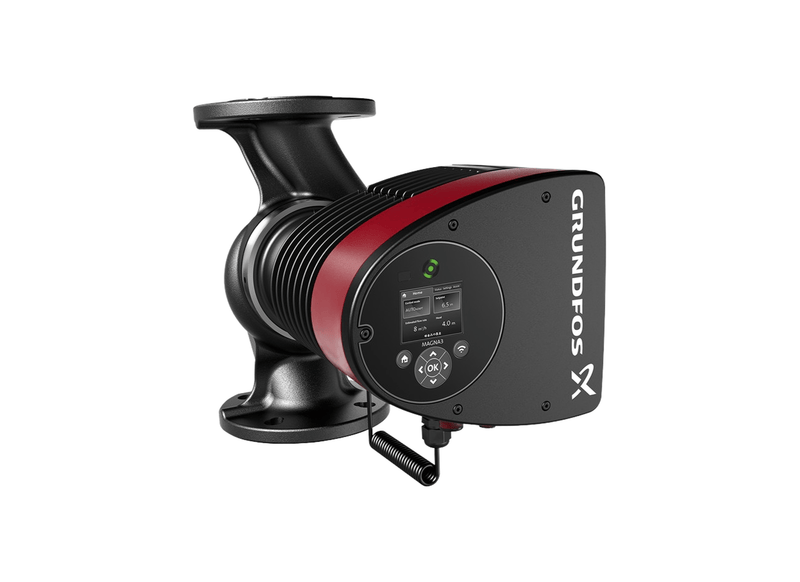

Grundfos MAGNA3 65-60-F Cast Iron Single Phase Circulator Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Equipped with DIN DN 65 connection ports, the Grundfos MAGNA3 65 60 F canned-rotor pump provides continuous fluid movement in closed thermal loops. Control electronics reside within an air-cooled enclosure attached to the glandless casing. Primary fluid transfer duties include hydronic heating, chiller circuits, and surface cooling loops.
Hydraulic performance delivers a maximum head of 6.0 meters and a maximum flow rate of approx. 595 L/Min. Powered by a permanent-magnet motor, the unit operates on a 240 V single-phase supply at 50/60 Hz, with power input P1 of 355 W and current draw of 1.64 Amps. Maximum system operating pressure is rated at 10 bar.
Housing construction features a cast iron casing grade EN 1561 EN-GJL-200 enclosing a composite impeller. Internal components incorporate a carbon-fibre rotor can, stainless steel rotor cladding, and bearing plate, running on ceramic bearings. Net weight is 20.5 kg with a 340 mm port length, handling liquid temperatures -10 to 110 °C.
Control features include AUTOADAPT and FLOWADAPT operating modes with integrated differential pressure and temperature sensors. Wireless communication connects via Bluetooth to Grundfos GO Remote software for diagnostics. External interfaces provide two digital inputs, two signal relays, and a 0-10V analog input.
Features
- Energy Efficiency Index (EEI): 0.17 meeting European Union energy performance standards.
- Maximum rotational speed rating: 2820 rpm for continuous hydraulic balancing across system curves.
- Physical shipping package volume and gross weight: 0.057 m3, 22.8 kg for logistics planning.
- Standard regulatory compliance approvals: CE,VDE,EAC,MOROCCO,UKC for international building code conformity.
- Enclosure protection rating: IPX4D moisture resistance rating for commercial equipment rooms.
- Intelligent control regulation: AUTOADAPT, FLOWADAPT, and active FLOWLIMIT operational modes.
- Wireless connectivity: Integrated Bluetooth interface for Grundfos GO Remote application access.
- Casing thermal insulation: Includes clip-on shell insulation covers for system heat retention.
SPECIFICATIONS
| Max Flow | 595 L/Min |
| Max Head | 6 m |
| Power | 0.36 kW / 240v |
| Rated Current | 1.64 Amps |
| Suitable For | High Flow Chiller Return Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor power rating and running current power this pump?
Connecting across 240 V lines, the Grundfos MAGNA3 65-60-F draws approximately 1.64 Amps with an efficient 0.36 kW motor.
What liquid temperatures can this pump tolerate during standard operation?
Fluid media ranging up to 10°C can be circulated through the MAGNA3 65-60-F without thermal breakdown.
What maximum vertical elevation head can this pump achieve?
To overcome vertical elevation resistance, the MAGNA3-65-60-F develops a maximum pumping head of approximately up to 6 m.
How much water volume can this pump displace through its outlet?
At full operating capacity, the MAGNA3 65 60 F moves approx. 595 L/Min through a DN 65 connection to keep liquid levels controlled during peak inflow.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the MAGNA3/65/60/F is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
