SKU: 93207149

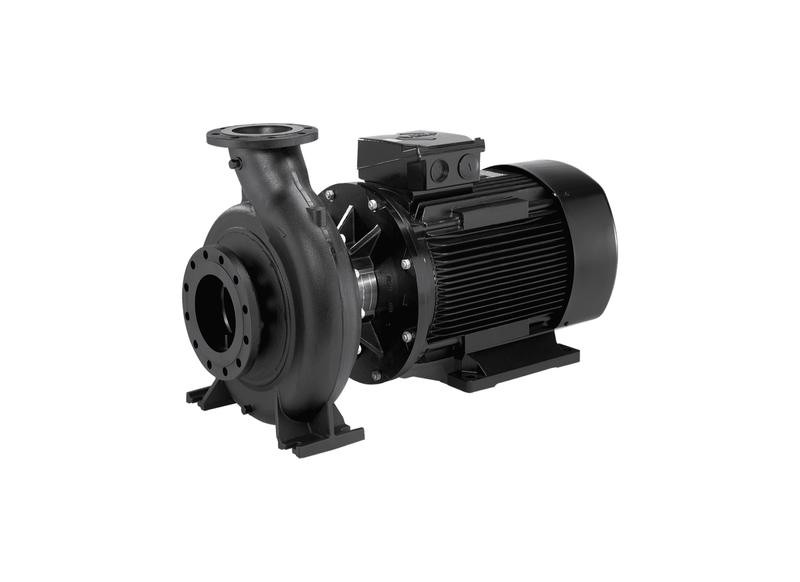

Grundfos NB 32-125/115 Cast Iron 1.5 kW End Suction Centrifugal Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Commercial fluid circulation duties in hydronic heating plants and industrial process loops are handled by the NB 32-125/115 end-suction centrifugal pump. Equipped with a 1.5 kW motor drive, the unit features standardized DN 50 axial inlet and DN 32 radial outlet flanged pipe connections.
Liquid circulation capacity reaches a rated flow volume of 375 L/Min while generating 12.76 m maximum head limit. The casing body is cast in EN-GJL-250 iron with electrocoated protective finish. Fluid movement is driven by a stainless steel impeller with BQQE mechanical shaft seal. Net product weight measures 45 kg.
A 1.5 kW drive motor powers the NB 32-125/115 unit from a 415 V three-phase electrical source, drawing 5.49 Amps nominal current. Working fluid limits handle liquid temperatures from -25°C to 120°C under line pressure ratings up to 16 bar. Standard DN 50 inlet and DN 32 outlet flanged connections support mounting.
Protective features on the NB 32-125/115 pump include an IP55 motor enclosure, Class F winding insulation, and internal PTC thermistor monitoring. The back-pull-out design allows complete drive and impeller extraction without disturbing connected suction or discharge pipework flanges in plant rooms.
Features
- High-efficiency motor selection is configured to match the specific power supply characteristics, pumping environment and liquid properties of each installation.
- Back pull-out design allows complete rotating assembly removal including motor, coupling and impeller without disturbing pump housing or connected pipework.
- EN733 and ISO2858 dimensional compliance ensures interchangeability with other standard end-suction pumps across commercial and industrial installations.
- ATEX Zone 1, 2, 21 or 22 certification available for operation in potentially explosive atmospheres (except E-model variants).
- Integrally cast suction and discharge ports with dedicated vent and drain ports provide direct connection points without additional fittings.
- No baseplate or grouting required to maintain correct shaft alignment and vibration levels within Hydraulic Institute standards.
- Cataphoretic electrocoating on cast iron internal surfaces provides barrier protection against oxidative corrosion in hydronic circulation loops.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 375 L/Min |
| Max Head | 12.76 m |
| Power | 1.5 kW / 415v |
| Rated Current | 5.49 Amps |
| Suitable For | Commercial Chilled Water Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can this pump operate in warm or hot water without overheating?
Routine operational thermal ceilings enable the Grundfos NB 32-125/115 to process liquids -25°C to 120°C.
How high can this pump lift water vertically?
Vertical elevation capability on the NB 32-125/115 reaches a maximum dynamic head of approximately 12.76 m under rated conditions.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the NB-32-125-115 peaks at approximately 375 L/Min, providing dependable high-volume drainage.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the NB 32 125 115 incorporates high-grade alloy for dependable longevity and resistance to fluid erosion.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the NB/32/125/115 delivers 1.5 kW on a 415 V three-phase line drawing 5.49 Amps.
