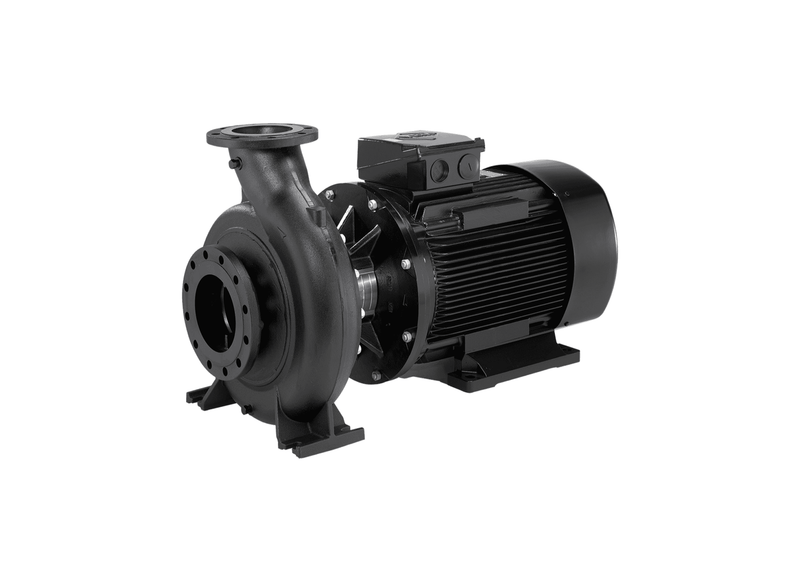

The NB 32-200/190 single-stage end-suction pump operates on a 415 V three-phase supply rated at 5.5 kW drive power. Built with an axial inlet port (DN 50) and top radial outlet port (DN 32), the unit connects into commercial hydronic heating networks, cooling tower water loops, and facility fluid transfer lines.
Under full duty load, the pump generates 494 L/Min rated flow capacity and reaches a maximum head threshold of 37.84 m. The heavy volute housing uses electrocoated cast iron to resist internal corrosion. A stainless steel impeller rotor assembly with bronze wear rings drives fluid transfer. Net product weight equals 105 kg.
Drive power on the NB 32-200/190 pump comes from a 5.5 kW electric motor operating on a 415 V three-phase electrical connection. Full-load running current measures 10.5 Amps. The pump processes liquid media over temperatures from -25°C to 120°C under line pressures up to 16 bar. Pipe connections use DN 50 suction and DN 32 discharge flanges.
Built with an IP55 rated motor enclosure and Class F insulation, the NB 32-200/190 electric motor incorporates internal PTC thermistor sensors against overheating. Servicing is simplified by the back-pull-out structural layout, enabling complete rotor and drive removal without disconnecting suction or discharge pipe joints.
Features
- Cataphoretic electrocoating on cast iron internal surfaces provides barrier protection against oxidative corrosion in hydronic circulation loops.
- Close-coupled configuration eliminates coupling alignment procedures and reduces overall installation footprint compared to long-coupled alternatives.
- Ball bearing support arrangement accommodates both radial and axial thrust loads generated during continuous duty operation at rated speed.
- PN16 flanged connection ratings on sizes up to and including DN 150 provide elevated working pressure capability beyond standard EN733 10 bar ratings.
- O-ring seal between pump housing and cover eliminates leakage risk at the volute-to-cover joint under sustained operating pressures.
- Optimised impeller and volute hydraulics deliver unimpeded liquid flow through the pump casing, reducing internal turbulence losses.
- All stainless steel shaft construction provides improved corrosion resistance compared to carbon steel alternatives in wetted service areas.
IMPORTANT:Bulk freight charges apply. Please contact us for a freight quote before ordering.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
