SKU: 93209318

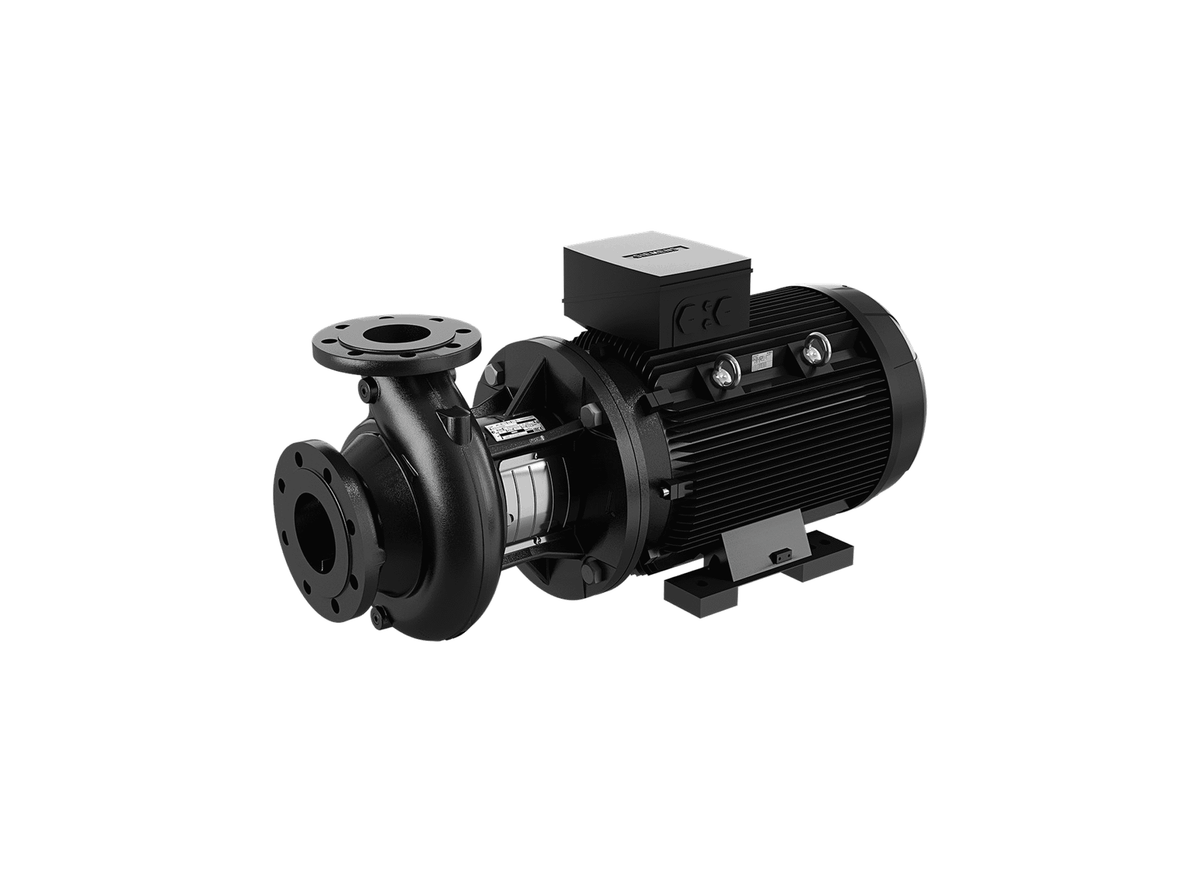

Grundfos NB 50-250/222 Cast Iron 18.5 kW End Suction Centrifugal Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Specified for commercial building services, process water loops, and district cooling infrastructure, the NB 50-250/222 end-suction centrifugal pump incorporates DN 65 suction and DN 50 discharge flanged ports. The end-suction volute design connects directly to suction line headers and concrete foundation bases.
At nominal operational speed, hydraulic output provides 1220 L/Min flow throughput alongside a maximum head limit of 57.75 m. Structural construction incorporates an EN-GJL-250 cast iron body with cataphoresis surface finish. Internal components feature a stainless steel impeller and BQQE seal. Total net weight stands at 179 kg.
The NB 50-250/222 electric motor operates on a 415 V three-phase supply drawing 35.3 Amps rated current at 18.5 kW output power. Fluid handling parameters accommodate liquid temperatures between -25°C to 120°C up to 16 bar system pressure. Line connection uses opposite DN 65 inlet and DN 50 outlet flanged ports.
Enclosure protection on the NB 50-250/222 model meets IP55 standards while motor windings feature Class F insulation and PTC thermistor protection relays. Maintenance technicians can extract the drive unit using back-pull-out access without removing the cast iron volute casing from connected plant room piping manifolds.
Features
- Optimised impeller and volute hydraulics deliver unimpeded liquid flow through the pump casing, reducing internal turbulence losses.
- All stainless steel shaft construction provides improved corrosion resistance compared to carbon steel alternatives in wetted service areas.
- Mechanical shaft seal can be replaced without removing the impeller, system piping, pump volute casing or drive motor from the installation.
- Housing, impeller and wear ring use dissimilar material pairings to prevent galling and ensure no sticking elements during extended standby periods.
- High-efficiency motor selection is configured to match the specific power supply characteristics, pumping environment and liquid properties of each installation.
- Back pull-out design allows complete rotating assembly removal including motor, coupling and impeller without disturbing pump housing or connected pipework.
- EN733 and ISO2858 dimensional compliance ensures interchangeability with other standard end-suction pumps across commercial and industrial installations.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 1220 L/Min |
| Max Head | 57.75 m |
| Power | 18.5 kW / 415v |
| Rated Current | 35.3 Amps |
| Suitable For | Boiler Plant & Thermal Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Moving liquid through the system, the Grundfos NB 50-250/222 maintains an operational throughput of up to 1220 L/Min during peak demand.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient high-grade alloy body, the NB 50-250/222 maintains material durability against fluid abrasion and wear.
What are the power requirements and running amperage for this pump?
Connecting across 415 V three-phase lines, the NB-50-250-222 draws approximately 35.3 Amps with an efficient 18.5 kW motor.
How deep can this pump be submerged underwater?
Fluid media ranging -25°C to 120°C can be circulated through the NB 50 250 222 without thermal breakdown.
What is the maximum vertical lift capacity of this pump?
To overcome vertical elevation resistance, the NB/50/250/222 develops a maximum pumping head of approximately 57.75 m.
