SKU: 93209362

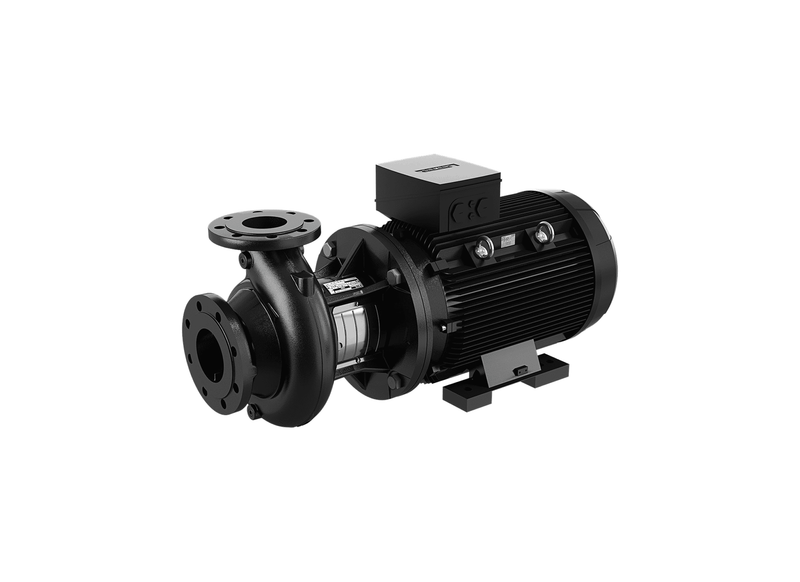

Grundfos NB 80-160/177 Cast Iron 30 kW End Suction Centrifugal Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating with a 30 kW motor rating, the NB 80-160/177 end-suction centrifugal pump features end-suction axial inlet (DN 100) and top radial outlet (DN 80) connections. The pump is specified for district heating, commercial air conditioning loops, and industrial water distribution.
The pump's hydraulic assembly yields 3562 L/Min rated flow volume and a maximum operational head of 32.93 m. Structural strength relies on an EN-GJL-250 cast iron casing with cataphoresis coating. Internal hydraulics feature a stainless steel impeller and BQQE shaft seal. Physical product weight equals 276 kg.
The NB 80-160/177 pump's 415 V three-phase drive motor delivers 30 kW power output while drawing 56.0 Amps operating current. The pump accommodates circulating fluid temperatures from -25°C to 120°C under working pressures up to 16 bar. Standardized DN 100 suction and DN 80 discharge ports facilitate line placement.
An IP55 enclosure rating protects motor components on the NB 80-160/177 unit, backed by Class F insulation and built-in PTC thermistor sensors. Scheduled maintenance routines utilize back-pull-out access, enabling motor drive and impeller removal while leaving volute casing flange joints intact.
Features
- O-ring seal between pump housing and cover eliminates leakage risk at the volute-to-cover joint under sustained operating pressures.
- Optimised impeller and volute hydraulics deliver unimpeded liquid flow through the pump casing, reducing internal turbulence losses.
- All stainless steel shaft construction provides improved corrosion resistance compared to carbon steel alternatives in wetted service areas.
- Mechanical shaft seal can be replaced without removing the impeller, system piping, pump volute casing or drive motor from the installation.
- Housing, impeller and wear ring use dissimilar material pairings to prevent galling and ensure no sticking elements during extended standby periods.
- High-efficiency motor selection is configured to match the specific power supply characteristics, pumping environment and liquid properties of each installation.
- Back pull-out design allows complete rotating assembly removal including motor, coupling and impeller without disturbing pump housing or connected pipework.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 3562 L/Min |
| Max Head | 32.93 m |
| Power | 30 kW / 415v |
| Rated Current | 56 Amps |
| Suitable For | Commercial Chilled Water Circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the Grundfos NB 80-160/177 sustains up to 3562 L/Min of volumetric throughput.
What corrosion-resistant materials are used in the wetted components?
Durable EN-GJL-250 construction gives the NB 80-160/177 exceptional structural strength and long-term protection against corrosive fluids.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 30 kW motor, the NB-80-160-177 connects to 415 V three-phase mains power with a rated current draw of 56.0 Amps.
What submersion depth limits and fluid temperatures apply to this pump?
Operating comfortably across temperatures -25°C to 120°C, the NB 80 160 177 supports diverse fluid circuits.
What is the maximum vertical lift capacity of this pump?
Under rated operating head, the NB/80/160/177 can lift water to a maximum dynamic head of approximately 32.93 m through vertical risers.
