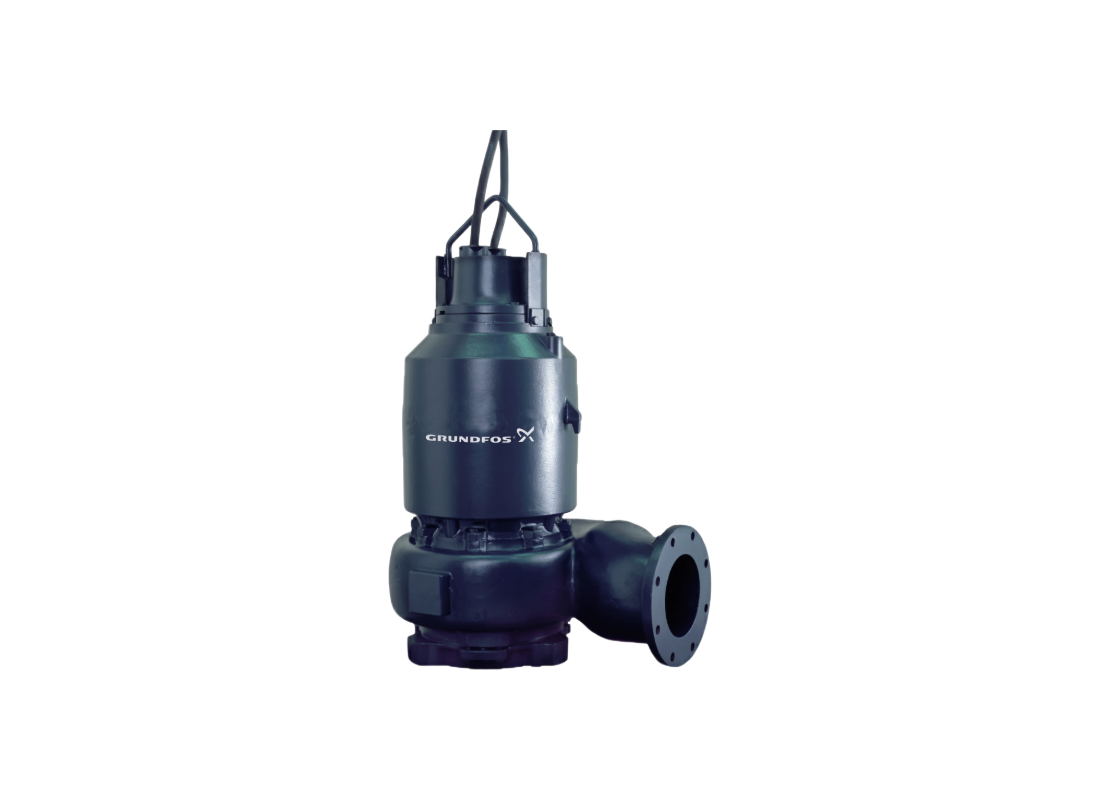

Stormwater systems and civil drainage infrastructure requiring massive flow transfer rely on the Grundfos S2.100.300.300.4.62E.S.253.G.N.D.513 for submerged installations. This cast iron wastewater pump manages untreated wastewater and sewage containing solids in centralized municipal wet wells. The engineering ensures consistent hydraulic efficiency in environments with liquid temperatures from 0°C to +40°C.
A 30 kW 4-pole motor running at 1482 rpm provides the torque required to achieve 20100 L/min flow and 10.2 m head. Drawing 64 Amps on a three-phase 415 V supply, stable motor operation is maintained during massive flow displacement. This configuration provides reliable pumping performance for volume-intensive drainage networks.
Hydraulic handling is achieved using a 2-channel cast iron impeller with a 253 mm diameter and a 100 mm free passage for managing untreated wastewater. The DN 300 outlet features DIN flange standards and a PN 10 rating to support high-volume transfer. This design focuses on maintaining consistent volume displacement while helping to prevent clogging in large-scale networks.
Structural integrity is provided by an EN-GJL-250 cast iron pump housing and motor casing with double mechanical SIC/SIC-CARBON seals. Safety monitoring is provided by integrated moisture switches and thermal sensors to ensure motor protection in permanent stations. The unit is supplied with a 15-metre H07RN-F power cable and is compatible with the Grundfos DN300 auto-coupling system (96782484).
FEATURES
- 2-Channel cast iron impeller with a 253 mm diameter and 100 mm passage for handling solids.
- EN-GJL-250 cast iron pump housing and motor casing for structural durability in permanent stations.
- Double mechanical shaft seal with SIC primary seal and SIC-CARBON secondary barrier protection.
- Integrated moisture sensors and thermal switches for proactive motor protection and monitoring.
- IP68 enclosure suitable for installation depths up to 20 metres with a PN 10 rated DN300 outlet.
- Supplied with a 15-metre H07RN-F power cable for reliable electrical connection in basins.
- Suitable for high-volume transfer applications in stormwater and wastewater networks.
- Compatible with the Grundfos DN300 auto-coupling system (96782484) for simplified maintenance access.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
