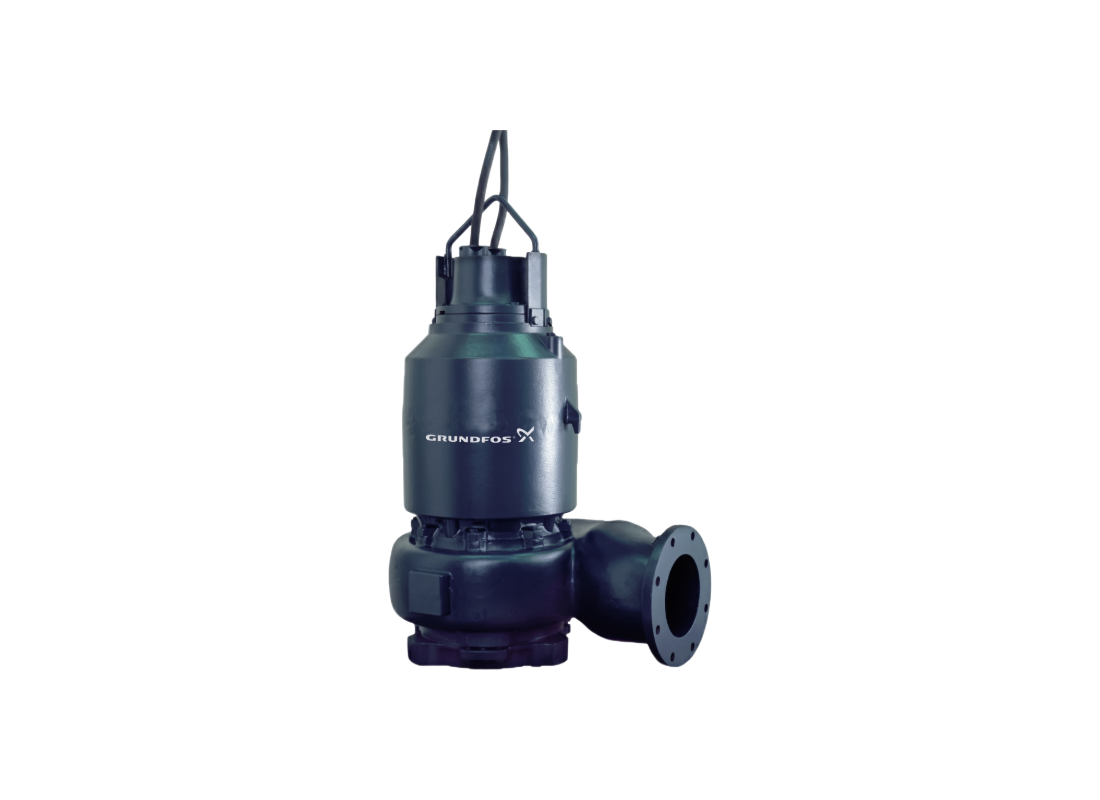

Wastewater infrastructure networks requiring high-capacity transfer rely on the Grundfos S2.100.300.400.4.62E.S.281.G.N.D.513 for heavy-duty submerged service in centralized sumps. This cast iron pump handles raw sewage and municipal wastewater containing solids, providing consistent hydraulic displacement in large-scale stations. It is designed for service in utility grids with liquid temperatures from 0°C to +40°C.
The unit achieves a maximum flow rate of 21600 L/min and a maximum head of 17 m using a 41 kW 4-pole motor. Operating at 1464 rpm on a 415 V supply with 82 Amps, stable motor operation is maintained during heavy-volume pumping cycles. This setup provides the required hydraulic force for massive flow displacement in drainage networks.
Pumping performance is achieved using a 2-channel cast iron impeller with a 281 mm diameter and a 100 mm free passage for managing untreated wastewater containing solids. The DN 300 outlet features DIN flanges and a PN 10 rating to support high-volume transfer. This design reduces clogging risks while moving contaminated wastewater through municipal collection systems.
Structural integrity is provided by the EN-GJL-250 cast iron casing and double mechanical shaft seals with SIC/SIC-CARBON faces. Protection features include integrated leakage sensors and moisture switches for proactive motor health monitoring in permanent stations. The unit includes a 15-metre H07RN-F power cable and is rated IP68 for installation depths up to 20 metres.
FEATURES
- 2-Channel cast iron impeller with a 281 mm diameter and 100 mm passage for handling solids.
- EN-GJL-250 cast iron pump housing and motor casing for structural integrity in utility grid systems.
- Double mechanical shaft seal with SIC primary faces and SIC-CARBON secondary seal barrier.
- Integrated moisture switch and thermal sensors for proactive motor protection and monitoring.
- IP68 enclosure suitable for installation depths up to 20 metres with a PN 10 rated discharge.
- Supplied with a 15-metre H07RN-F power cable for reliable electrical connection in wet wells.
- Frame size 62 construction for massive flow transfer in municipal wastewater systems.
- Compatible with the Grundfos DN300 auto-coupling system (96782484) for simplified maintenance access.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
