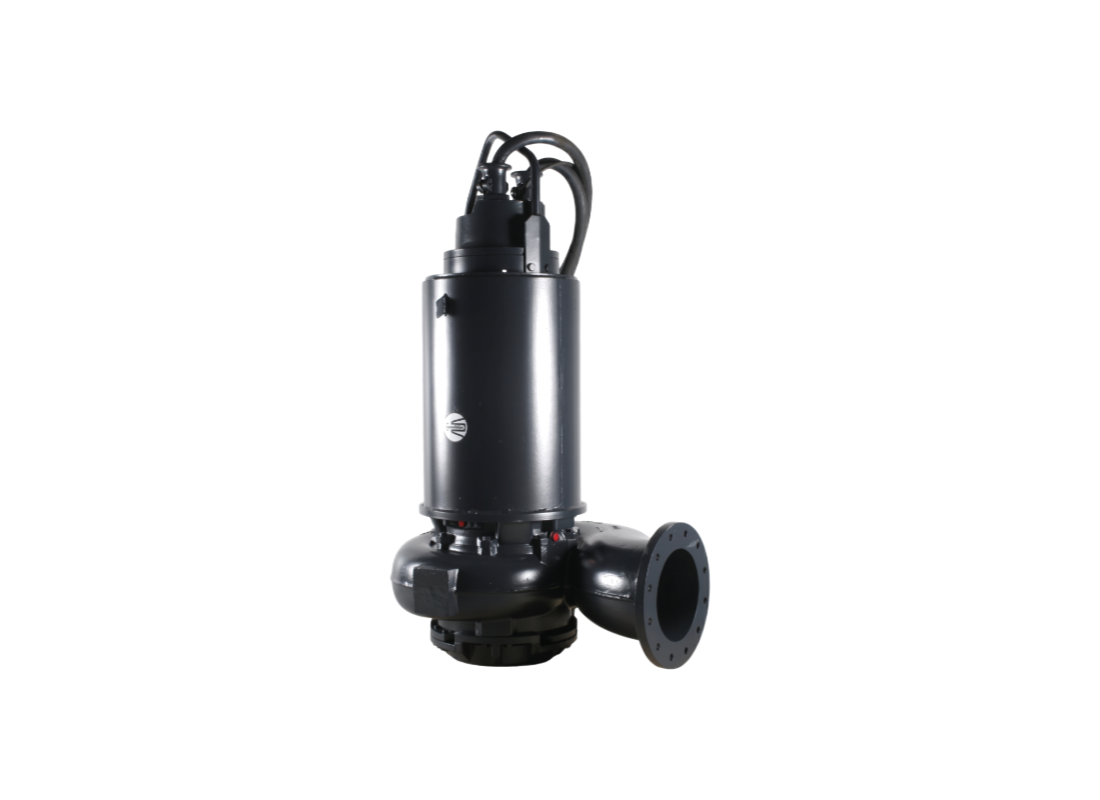

Grundfos S2.90.200.1600.4.70S.S.480 Cast Iron 4-Pole Wastewater Pump for Raw Sewage with 2-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing internal fluid path stability, this submersible pump is exclusively structured for handling wastewater, process water, unscreened raw sewage, municipal, domestic and industrial applications. The S2.90.200.1600.4.70S.S.480.G.N.D.513GPA model is definitively suitable for submerged liquid installation configurations natively utilizing the 96641489 auto coupling structural interface connection layout.
Constructed from Cast iron EN 1561 EN-GJL-250, the structural external housing encapsulates active internal mechanical components. The 2-channel impeller, measuring 480 mm in continuous diameter, processes solid material up to 90 mm in physical size. The core internal motor housing is manufactured from Cast iron EN 1561 EN-GJL-250. The physical unit weighs 1350 kg and operates strictly in Newtonian liquids up to 40°C.
The 155 kW motor operates on a three-phase 415v power supply maintaining a steady rated continuous current of 270 Amps. The physical hardware achieves a maximum head of 103 meters and a maximum continuous flow of 10500 L/Min passing through a DN 200 mm discharge outlet. The continuous operational electrical power input P1 is specified at 167 kW, running with an initial starting current rated exactly at 2020 Amps.
Motor protection is formally provided by Class F internal insulation combined with an IP68 designated physical enclosure rating. The heavy hardware structurally supports continuous vertical installation depths extending up to 20 meters. Primary SIC mechanical seals and secondary SIC-CARBON shaft seals rigidly provide internal fluid containment boundaries. The electrical system utilizes a standard 4-pole motor configuration combined with a Y/D method.
Features
- Features lifting height class S dimension standard for continuous fluid output
- Integrates specialized internal moisture sensors for fluid intrusion evaluation
- Includes functional core thermistors engineered for active internal temperature tracking
- Utilizes S1BN8-F specification power cable measuring exactly 15 meters
- Operates structurally with a continuous mechanical speed of 1475 revolutions per minute
- Features an internal structural winding resistance parameter rated at 0.035 Ohm
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 10500 L/Min |
| Max Head | 103 m |
| Power | 155 kW / 415v |
| Rated Current | 270 Amps |
| Suitable For | Raw Sewage Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 200 mm |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this pump run on standard household power or three-phase power?
It operates on 415 V three-phase power, with the Grundfos S2.90.200.1600.4.70S.S.480 utilizing a durable 155 kW motor rated at 270 Amps.
What materials make this pump durable against corrosion and wear?
Wetted components on the S2.90.200.1600.4.70S.S.480 are crafted from high-grade high-grade alloy to maintain physical integrity and resist abrasive wear.
How high can this pump lift water vertically?
Pumping performance for the S2-90-200-1600-4-70S-S-480 provides up to 103 m of vertical dynamic lift, depending on system friction and line sizing.
What maximum flow rate does this pump achieve during heavy influx?
Moving liquid through the system, the S2 90 200 1600 4 70S S 480 maintains an operational throughput of up to 10500 L/Min during peak demand.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient EN-GJL-250 body, the S2/90/200/1600/4/70S/S/480 maintains material durability against fluid abrasion and wear.
