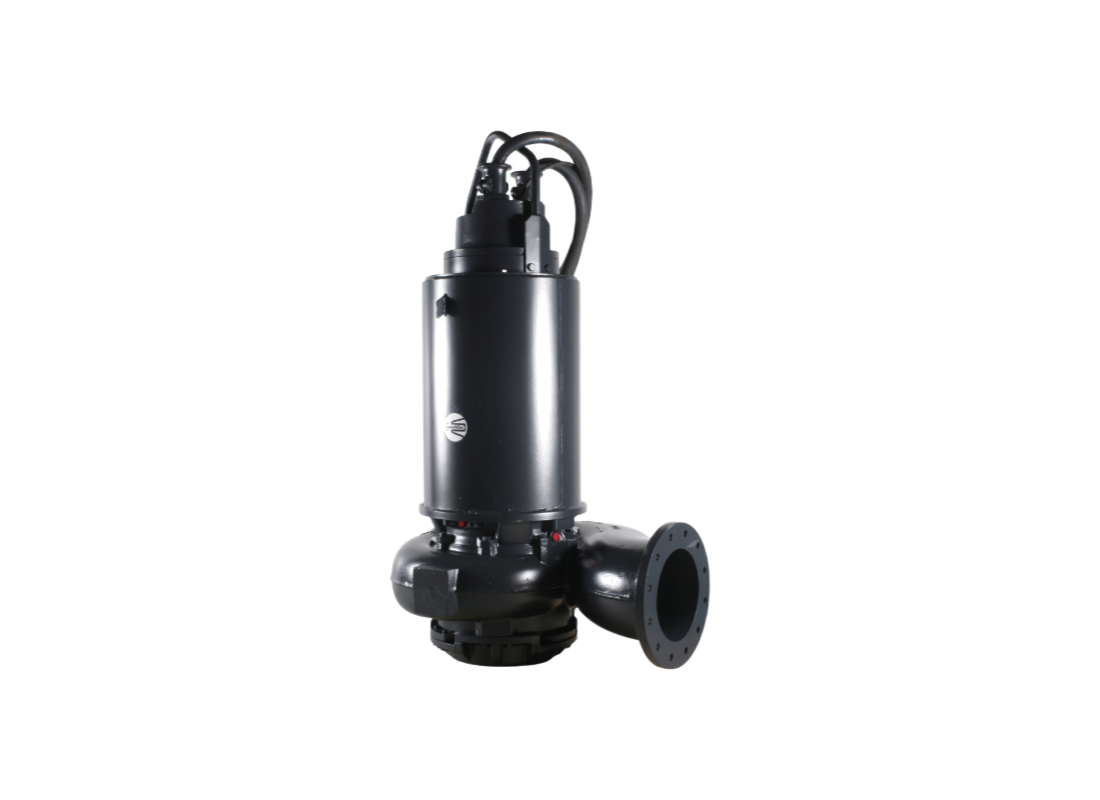

Grundfos S2.100.200.1150.4.70H.C.404 Cast Iron 4-Pole Sewage Pump for Process Water with 2-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term continuous municipal transfer demands, this pump is exclusively designed for handling wastewater, process water, unscreened raw sewage, municipal, domestic and industrial applications. The S2.100.200.1150.4.70H.C.404.G.N.D.513GPA model is strictly suitable for submerged physical installation configurations natively utilizing the 96641489 auto coupling interface connection to establish a continuous processing layout. The cooling jacket provides superior motor cooling in submerged and dry installations.
Constructed from Cast iron EN 1561 EN-GJL-250, the heavy external housing entirely surrounds internal dynamic components. The 2-channel impeller, measuring exactly 404 mm in physical diameter, natively processes suspended solids up to 100 mm in overall size. The internal core motor enclosure is manufactured from Cast iron EN 1561 EN-GJL-250. The component weighs 1220 kg and operates continuously in Newtonian liquids up to 40°C.
The 115 kW motor system functions on a three-phase 415v supply, operating with a rated continuous electrical current of 203 Amps. The heavy-duty unit achieves a maximum head of 69.7 meters and a maximum flow volume of 13680 L/Min through a physical DN 200 mm discharge outlet. The continuous operating power input P1 is specified exactly at 122 kW, operating alongside a specific starting current parameter evaluated at 1380 Amps.
Internal hardware safety is governed by Class F internal motor insulation combined with an IP68 physical liquid enclosure rating. The structure technically supports rigid vertical installation depths extending up to 20 meters. Primary SIC mechanical seals and secondary SIC-CARBON shaft seals strictly provide internal liquid containment. The internal electrical architecture incorporates a 4-pole motor structure combined with a Y/D start mechanism. The cooling jacket enables flexible installation configurations.
Features
- Features lifting height class H standard dimensional specification layout
- Integrates internal moisture sensors explicitly for physical fluid tracking tasks
- Includes installed thermistors for evaluating structural operational heat levels
- Utilizes S1BN8-F specification power cable measuring exactly 15 meters
- Operates actively with a mechanical continuous speed of 1475 revolutions per minute
- Accommodates exactly 15 standard electrical motor starts per operational hour
- Cooling jacket enables submerged or dry installation without motor cooling
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 13680 L/Min |
| Max Head | 69.7 m |
| Power | 115 kW / 415v |
| Rated Current | 203 Amps |
| Suitable For | Process Water Handling |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic head can this submerged wastewater pump reach under full loading?
Generating vertical fluid displacement, the S2.100.200.1150.4.70H.C.404 reaches a maximum dynamic head of approximately 69.7 m.
What maximum delivery flow volume is sustained across the discharge flange of this unit?
Plumbing circuits receive a maximum delivery flow rate of approximately 13680 L/Min from the Grundfos S2.100.200.1150.4.70H.C.404 connecting through a DN 200 (standard flanged connection).
Regarding raw wastewater transfer, what casing metallurgy and alloy material provide corrosion protection?
Targeted for municipal wastewater reliability, the S2-100-200-1150-4-70H-C-404 integrates Cast Iron housing and wetted components with a 2-channel impeller accommodating particulate up to 100 mm.
Under nominal electrical service, what motor power and supply current are needed?
Electrical motor performance certified for the S2 100 200 1150 4 70H C 404 provides 115 kW across 415 V, 50 Hz, three-phase pulling a rated current of 203 A.
What maximum immersion depth limit, fluid operating temperature, and thermal range are supported?
Constructed for deep fluid immersion, the S2.100.200.1150.4.70H.C.404.G.N.D.513GPA sustains operational installation depths up to approximately 20 m in liquids up to 40°C.
