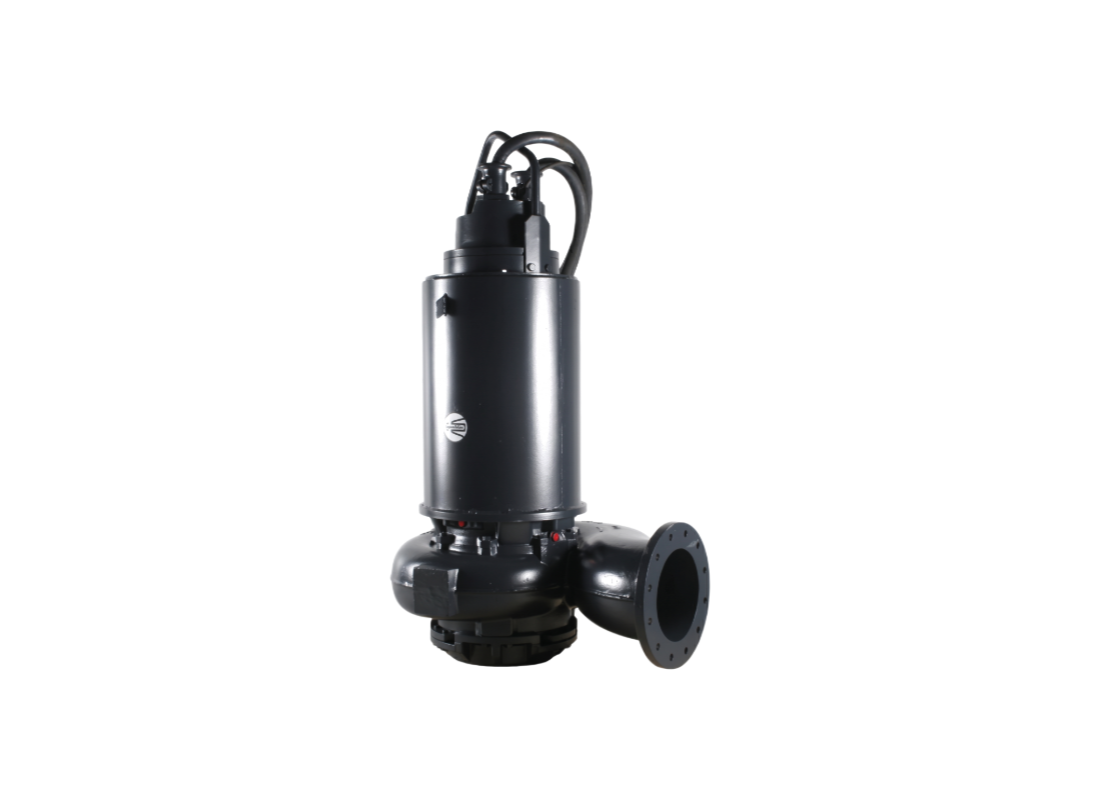

Grundfos S3.120.600.350.10.66E.S.470 Ductile Iron 35kW Sewage Pump for Stormwater with 3-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Flood control facilities and stormwater pumping systems frequently install this slow-speed ductile iron submersible sewage pump for ultra-high-volume submerged operation. Massive flows of untreated effluents and raw sewage with solids are handled efficiently in large-scale drainage infrastructure.
Flow reaches 45000 L/min with a maximum head of 7.2 m, driven by a 35 kW slow-speed motor. The 10-pole motor operates at 585 rpm on a 415 V three-phase supply, drawing 77 Amps for consistent hydraulic performance during peak demand periods.
A ductile iron 3-channel impeller with 120 mm solids passage allows safe passage of large particles without internal clogging. The three-channel design optimizes flow for ultra-high-volume transfer while maintaining operational stability.
Ductile iron housing with IP68 enclosure and Class F insulation provides extreme submerged durability. A dual SiC/SiC shaft sealing system prevents liquid ingress, while moisture sensors offer active motor protection. Includes a 15 m power cable and rated for depths up to 20 m.
FEATURES
- 3-Channel Ductile Iron Impeller: Ultra-high-volume solids handling.
- 120 mm Solids Passage: Exceptional clearance for large contaminants.
- IP68 Submersible Enclosure: Sealed for permanent operation at depths up to 20 metres.
- Dual SiC-SiC Mechanical Shaft Seals: Protects against liquid ingress.
- Built-in Moisture Monitoring: Early detection prevents motor failure.
- Abrasion-Resistant Ductile Iron Housing: Withstands aggressive conditions.
- 35 kW Slow-Speed Motor: 10-pole design with high torque at 585 rpm.
- Star/Delta Starting: Controlled power draw and reduced mechanical strain.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 45000 L/Min |
| Max Head | 7.2 m |
| Power | 35 kW / 415v |
| Rated Current | 77 Amps |
| Suitable For | Wastewater Treatment |
| Body Material | Ductile Cast Iron |
| Liquid Temperature | 0°C to +40°C |
| Outlet Size | 600 mm |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much power does the motor consume during standard operation?
Powered by a dedicated 35 kW motor, the Grundfos S3.120.600.350.10.66E.S.470 connects to 415 V three-phase mains power with a rated current draw of 77 Amps.
What corrosion-resistant materials are used in the wetted components?
Manufactured with quality materials, the S3.120.600.350.10.66E.S.470 incorporates high-grade alloy for dependable longevity and resistance to fluid erosion.
What peak dynamic elevation does this pump develop?
Under rated operating head, the S3-120-600-350-10-66E-S-470 can lift water to a maximum dynamic head of approximately 7.2 m through vertical risers.
How much water volume can this unit move through the pipework?
Peak fluid displacement on the S3 120 600 350 10 66E S 470 delivers up to 45000 L/Min under rated operating conditions.
What size spherical waste can pass through the pump chamber?
Debris management on the S3/120/600/350/10/66E/S/470 supports particulate clearance up to 120 mm via a precision runner.
