SKU: 96810567

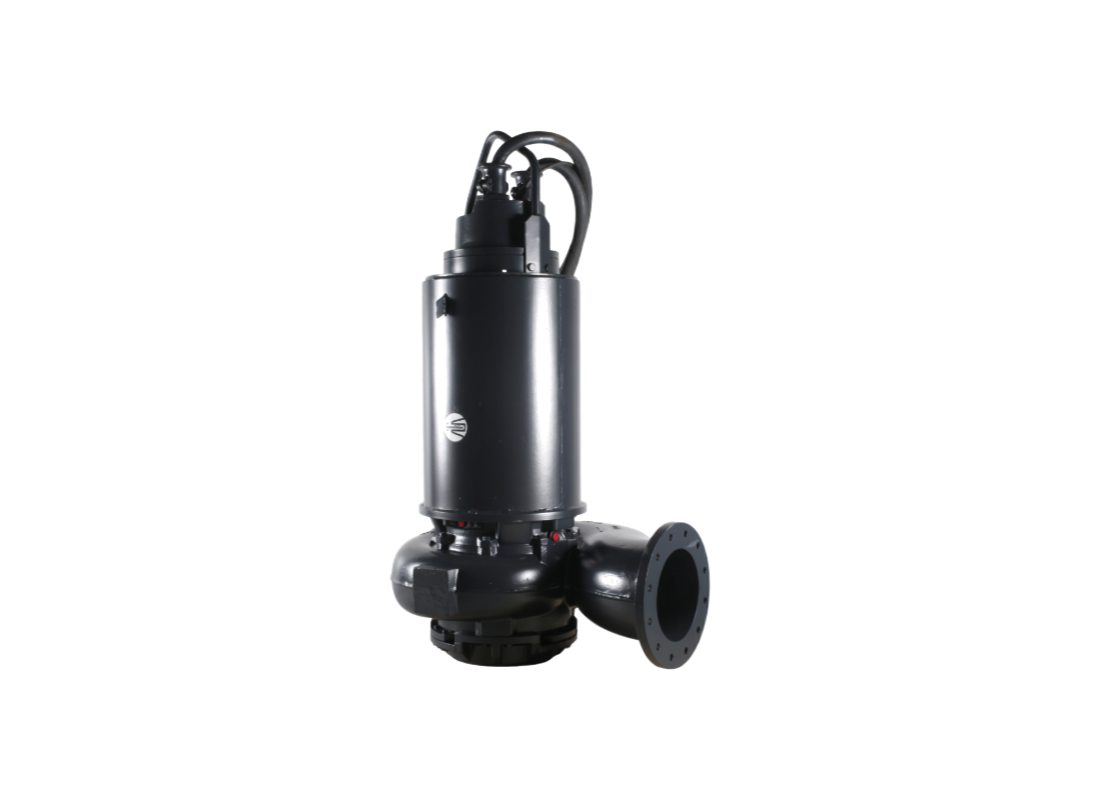

Grundfos S3.110.500.1000.6.70L.C.402 Ductile Iron 6-Pole Sewage Pump for Process Water with 3-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing internal fluid path stability, this submersible pump is exclusively structured for handling wastewater, process water, unscreened raw sewage, municipal, domestic and industrial applications. The S3.110.500.1000.6.70L.C.402.G.N.D.513GPA unit is definitively suitable for submerged liquid installation configurations natively utilizing the 96782485 auto coupling structural interface connection layout. The cooling jacket ensures optimal motor cooling in both submerged and dry installations.
Constructed from Ductile cast iron EN 1563 EN-GJS-500-7, the structural external housing encapsulates active internal mechanical components. The 3-channel impeller, measuring 404 mm in continuous diameter, processes solid material up to 110 mm in physical size. The core internal motor housing is manufactured from Cast iron EN 1561 EN-GJL-250. The physical unit weighs 1910 kg and operates strictly in Newtonian liquids up to 40°C.
The 100 kW motor operates on a three-phase 415v power supply maintaining a steady rated continuous current of 183 Amps. The physical hardware achieves a maximum head of 16.1 meters and a maximum continuous flow of 55800 L/Min passing through a DN 500 mm discharge outlet. The continuous operational electrical power input P1 is specified at 109 kW, running with an initial starting current rated exactly at 1200 Amps.
Motor protection is formally provided by Class F internal insulation combined with an IP68 designated physical enclosure rating. The heavy hardware structurally supports continuous vertical installation depths extending up to 20 meters. Primary SIC mechanical seals and secondary SIC-CARBON shaft seals rigidly provide internal fluid containment boundaries. The electrical system utilizes a standard 6-pole motor configuration combined with a Y/D method. The cooling jacket enables flexible installation configurations.
Features
- Features lifting height class L dimension standard for continuous fluid output
- Integrates specialized internal moisture sensors for fluid intrusion evaluation
- Includes functional core thermistors engineered for active internal temperature tracking
- Utilizes H07RN-F AT specification power cable measuring exactly 15 meters
- Operates structurally with a continuous mechanical speed of 984 revolutions per minute
- Accommodates exactly 15 standard electrical motor starts per operational hour
- Cooling jacket enables submerged or dry installation without motor cooling
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 55800 L/Min |
| Max Head | 16.1 m |
| Power | 100 kW / 415v |
| Rated Current | 183 Amps |
| Suitable For | Process Water Transfer |
| Body Material | Ductile Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 500 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What voltage supply and motor power does this pump need?
Under full load conditions, the motor in the Grundfos S3.110.500.1000.6.70L.C.402 delivers 100 kW on a 415 V three-phase line drawing 183 A.
What maximum vertical water column can this pump maintain?
Dynamic lift generated by the S3.110.500.1000.6.70L.C.402 reaches a maximum elevation head of approximately 20 m across discharge lines.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 16.1 m with the S3-110-500-1000-6-70L-C-402 under standard duty points.
How much fluid throughput does this pump move under full load?
Discharge throughput on the S3 110 500 1000 6 70L C 402 reaches a maximum flow rate of approximately 55800 L/Min through a DN 500 connection under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the S3/110/500/1000/6/70L/C/402 are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
