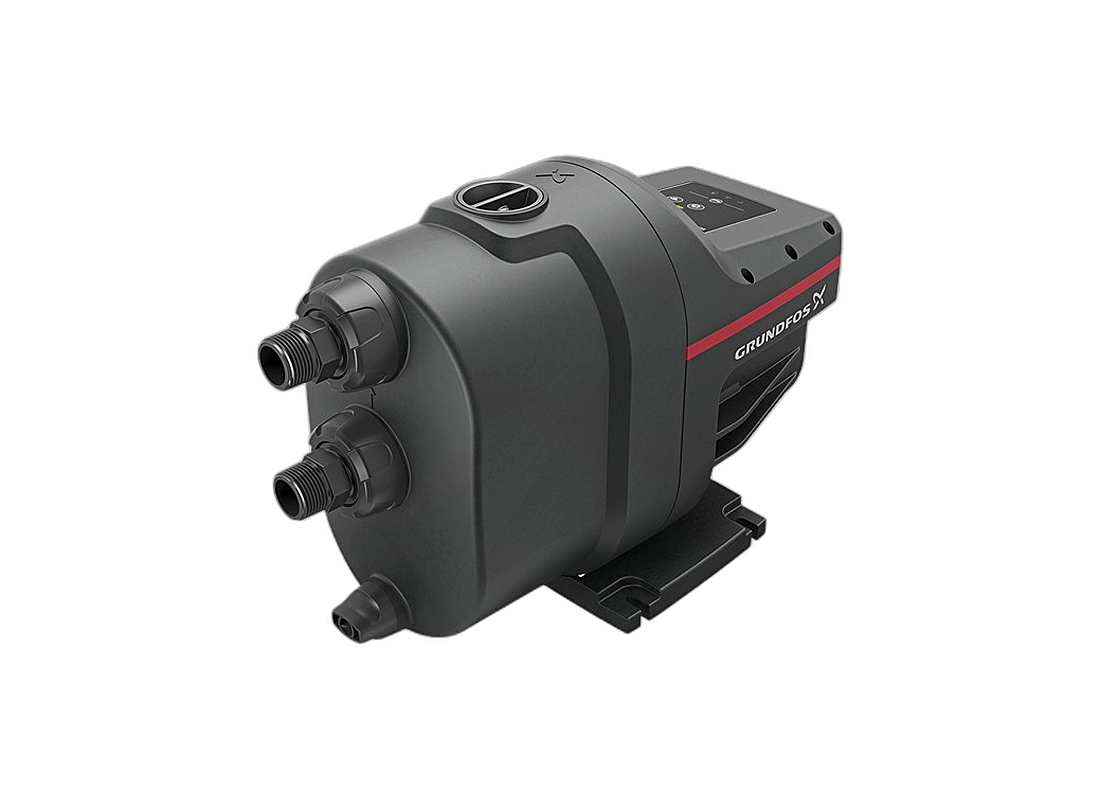

Grundfos SCALA1 3-35 Composite Pressure Boosting Water Supply Pump with Built-in Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos SCALA1 3-35 is a pressure boosting pump designed for domestic water supply and light commercial applications including irrigation, tank filling, and boosting pressure from mains or stored water systems. It delivers consistent water pressure for household use, garden irrigation, and small-scale installations.
Constructed with a composite pump housing and composite impeller, the unit provides corrosion resistance and long service life. The compact system integrates essential components including the pump, motor, diaphragm tank, pressure and flow sensors, dry-running protection, non-return valve, and built-in control, ensuring efficient and stable operation.
The pump delivers a maximum head of 36 metres with a rated flow of 3 m³/h and a rated head of 25 metres. It is designed for clean water applications with a liquid temperature range of 0°C to 45°C and supports a maximum operating pressure of 8 bar and maximum inlet pressure of 4 bar for reliable performance.
The unit is powered by a 0.45 kW electric motor (P2) with a maximum input power of 750 W, operating on a 1 x 240 V, 50 Hz supply. Built-in Bluetooth communication allows monitoring and control via the Grundfos GO REMOTE system for diagnostics and setup.
FEATURES- Motor: 0.45 kW (P2) Electric Motor, 1 x 240 V, 50 Hz
- Maximum Head: 36 m
- Rated Flow: 3 m³/h
- Rated Head: 25 m
- Pump Type: Pressure boosting pump
- Construction: Composite pump housing with composite impeller
- Integrated Components: Pump, motor, diaphragm tank, sensors, non-return valve, and built-in control
- Start Pressure: 1.5 bar
- Maximum Operating Pressure: 8 bar
- Maximum Inlet Pressure: 4 bar
- Liquid Temperature Range: 0°C to 45°C
- Ambient Temperature Range: 0°C to 55°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Bluetooth connectivity for monitoring and control
SPECIFICATIONS
| Max Flow | 83 L/Min |
| Max Head | 36 m |
| Power | 0.45 kW / 240v |
| Rated Current | 3.25 Amps |
| Suitable For | Water Supply |
| Body Material | Composite |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
Depending on operating conditions, the Grundfos SCALA1 3-35 delivers a maximum flow rate of 83 L/Min and a maximum head of 36 m.
What voltage supply and motor power does this pump need?
Connecting across 240v lines, the SCALA1 3-35 draws approximately 3.25 Amps with an efficient 0.45 kW motor.
What materials are used to construct the pump casing and impeller?
Durable Composite construction gives the SCALA1-3-35 exceptional structural strength and long-term protection against corrosive fluids.
What property water management tasks match this pump?
System installations deploy the SCALA1 3 35 for property plumbing, performs domestic mains pressure boosting, rainwater harvesting extraction, and residential tap supply, maintaining steady circulation and reliable line pressure.
How many years of warranty coverage come with this Grundfos pump?
Purchase of the SCALA1/3/35 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
